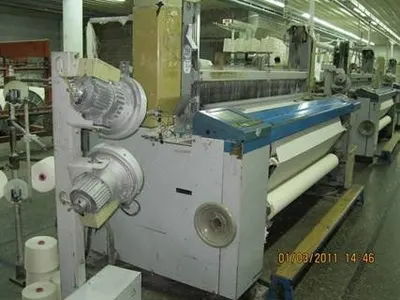

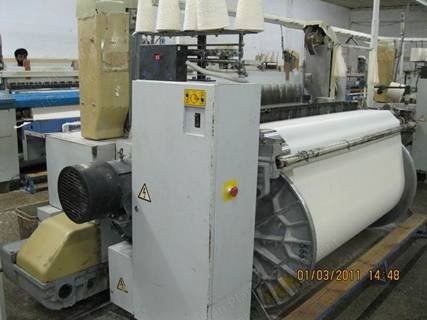

Toyoda, JAT600, 1995, 1900mm, 2 Colors, Staubli 2511WS Dobby

Toyoda, JAT600, 1995, 1900mm, 2 Colors, Staubli 2511WS Dobby Sold

Description

  1. Overview
    1. 1900 mm working width
    2. Year: 1995
    3. 2 colors
    4. With M-dobby Staubli #2511WS
    5. Murata MX-10
    6. Pre-winder per set: 2
    7. Shedding: dobby
  2. Dobby Specifications
    1. 36-Staubli / #2511WS
    2. 4-Murata / MX-10
    3. Drive levers: max. 16, equipped 14
    4. Heald frames: 12
  3. Beam and Roller Details
    1. Warp beam diameter: 800 mm
    2. Quantity of beam per loom: 1.3
    3. Cloth roller: included
    4. Quantity of cloth roller per loom: 2
  4. Reed and Harness
    1. Reed: 2
    2. Heddles: over 3,000
    3. Droppers: over 3,000
  5. Condition
    1. Running excellently, now stopped on floor
  6. Included
    1. Option: included
    1. Quantity: 40
