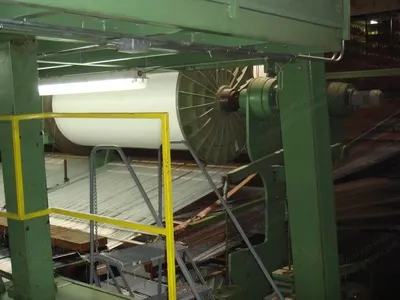

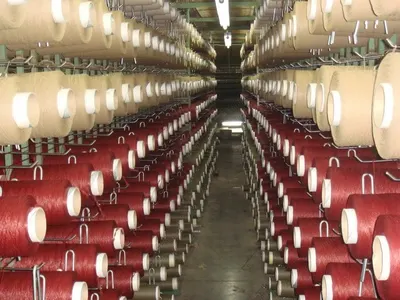

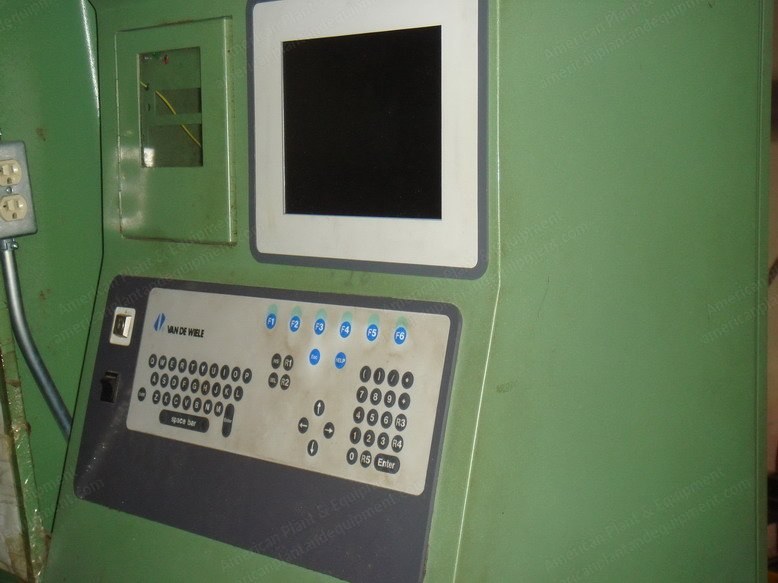

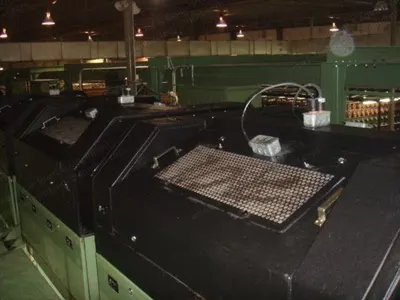

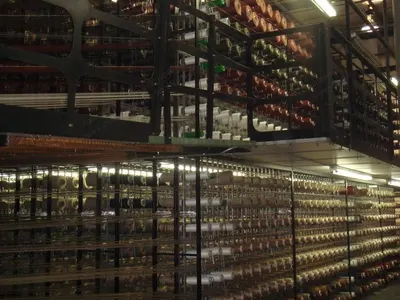

Description Overview Model: ADR 92-400 Year: 1993 Number of years in operation: 14 Fabric Specifications Fabric width: 400 cm Weave structure: 1/2 V weave Carpet density: 315 d/m Carpet width: 2000 mm Pitch in pile part: 1260/4020 Selvedge width: 2 x 50 mm Rapier and Weaving Details Rapier guiding: roller guiding Receiving rapier opening: positive opening Take up rollers 2 round stones each side Number of reeds: 1 2 prewinders 2 bobbin stands with 1 platform of 3 bobbins each Beam and Let-Off System High beam stand for 8 beams Maximum beam diameter: 1000 mm Motor driven beam let-off system Adjustment tension with weights Electronic Jacquard Machine Number of heads: 3 PTR electronic heads Number of solenoids used: 10080 Weave structures: 1/2 V weave structure incorporated Controller: 1 electronic controller Drive for jacquard: cardan double sided Number of harness colors: 8 Number of harness cords: 10080 Return: standard springs Heald eyelet: 10080 R Ground Warp Frames Drive of frames: from top Heald length: 620 mm 380 R Number of frames: 6 frames Ground weave structure: 2 x (1/1) + 4 x (2/2) Stop Motion Number of pile stop motion: 1 with 10080 drop wires Number of warp stop motion: 1 for top and 1 for bottom
