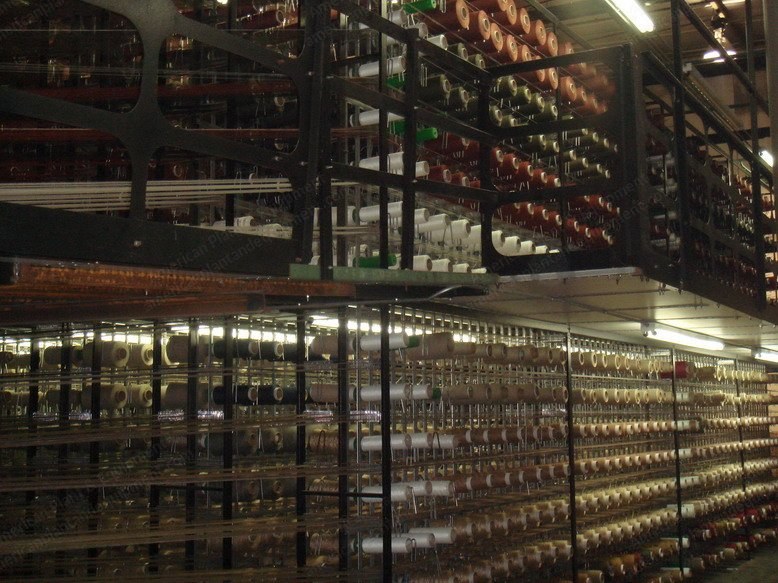

Description Overview Model: ADR 72-400 Year: 1994 Number of years in operation: 13 Fabric Specifications Fabric width: 4000 mm Rapier guiding: Roller guiding Receiving rapier opening: Positive opening Weave structure: 1/2 1/1 V weave Folding system to take up carpets 2 round stones and 2 flat stones High beam stand for 8 beams Maximum beam diameter: 1250 mm Motor driven beam let-off system Adjustment tension with weights Number of reeds: 1 Carpet density: 315 d/m Carpet width: 4000 mm Pitch in pile part: 1280/4020 Selvedge width: 2 x 50 mm 2 prewinders 1 bobbin stand with 2 platforms of 4 bobbins each Electronic Jacquard Machine Number of heads: 3 PTR electronic heads Number of solenoids used: 7680 Weave structures: 1/2 V weave structure incorporated Controller: 1 electronic controller Drive for jacquard: Cardan double sided Number of harness colors: 6 Number of harness cords: 7680 Return: Standard springs Heald eyelet: 10080 R Ground Warp Frames Drive of frames: From bottom Heald length: 740 mm 380 R Number of frames: 6 frames Ground weave structure: 2 x (1/1) + 4 x (2/2) Stop Motion Number of pile stop motion: 1 with 7680 drop wires Number of warp stop motion: 1 for top and 1 for bottom
