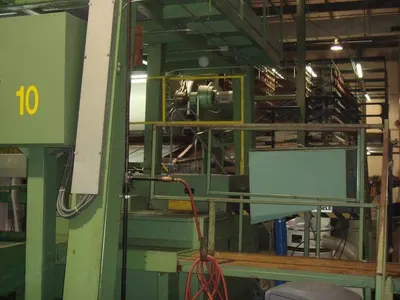

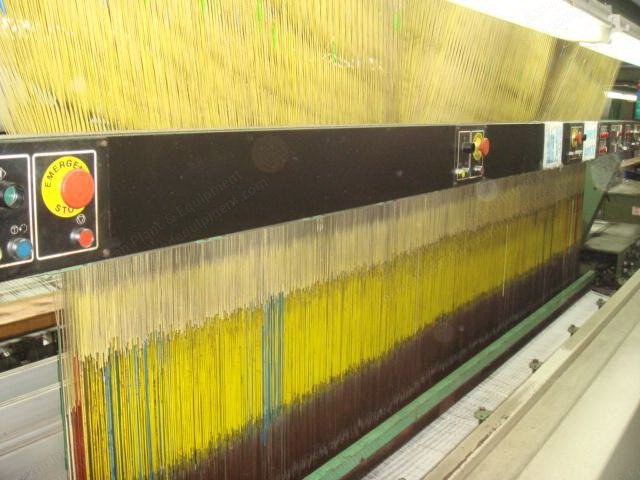

Van de Wiele, VMM 32, 1996/1997, 1750mm Roller Width, Staubli CX 990 Jacquard, 2-3 Colors

Van de Wiele, VMM 32, 1996/1997, 1750mm Roller Width, Staubli CX 990 Jacquard, 2-3 Colors

Description

  1. Overview

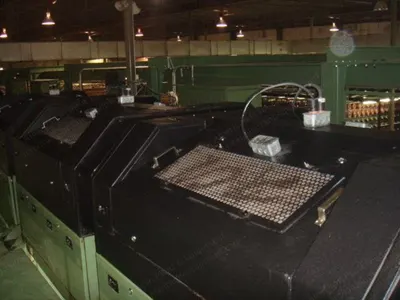

    1. Vmm 32 with Staubli Jacquard Cx 990
    2. Years: 1996/1997
    3. Model: Vmm 32
    4. Roller width: 1750 mm
    5. Rpm: 240 to 340 m/min
    6. Jacquard hooks: max 1536 (installed 792 hooks)
    7. Read length: 63 in

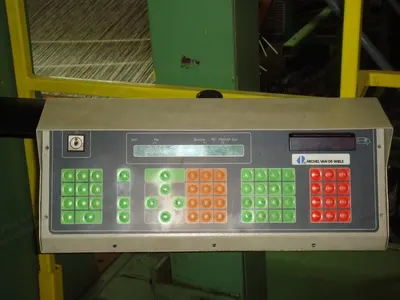

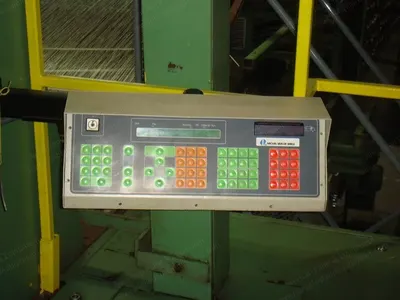

    8. Van de Wiele electronic controller
  2. Specifications
    1. Heald frame: 16 each
    2. Body (reed): 21
    3. Card cloth (wire fillet): spike
    4. Pile: 2 to 3 colors

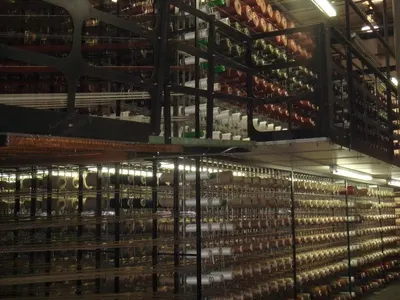

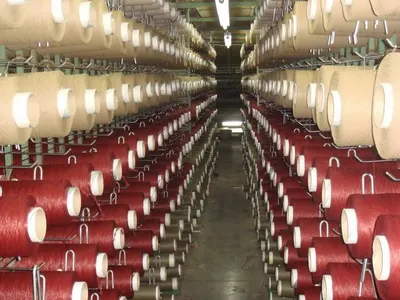

    5. Number of creels: 4200/each (5 doors x 840 cone package)
    6. 2 x ground warp beam

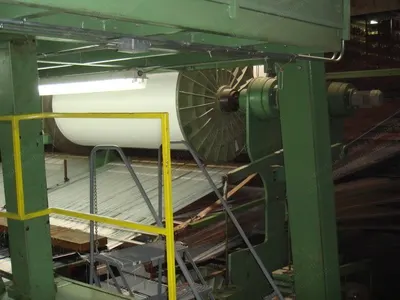

    7. Beam diameter: 1000 mm
    8. 2 cloth rollers
  3. Included
    1. Complete jacquard harness and gantry
    2. Complete with standard accessories
  4. Dimensions
    1. W x L x H: 4850 mm x 5750 mm x 2000 mm
