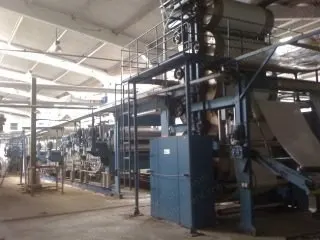

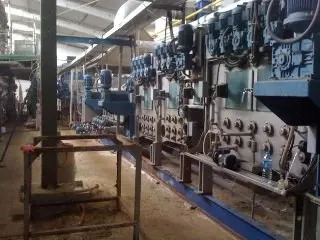

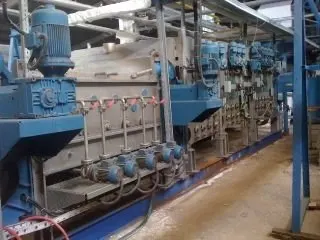

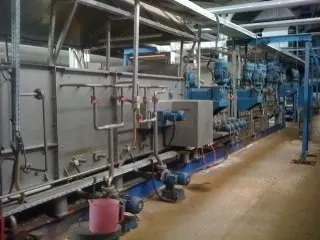

Benninger, Dimensa, 2000, Mercerizing Range, 1800mm Working Width, 2000mm Roller Width, 6 to 60 m/min Speed

Benninger, Dimensa, 2000, Mercerizing Range, 1800mm Working Width, 2000mm Roller Width, 6 to 60 m/min Speed

Description

  1. Overview
    1. Width: 1800 mm
    2. Roller width: 2000 mm
    3. Speed: 6 to 60 m/min
    4. Average speed for hot mercerizing: 46 m/min
  2. Electrical Specifications
    1. Voltage: 3 x 400/50
    2. Total power of motors: 86 kW
    3. Power installed: 153 kVA
  3. Utility Requirements
    1. Water pressure required: 2 bar min / 4 bar max
    2. Steam pressure required: 4 bar min / 6 bar max
    3. Steam pressure for cylinder dryer: 6 bar
    4. Compressed air pressure required: 6 bar min / 12 bar max
  4. Construction
    1. Stainless steel construction
