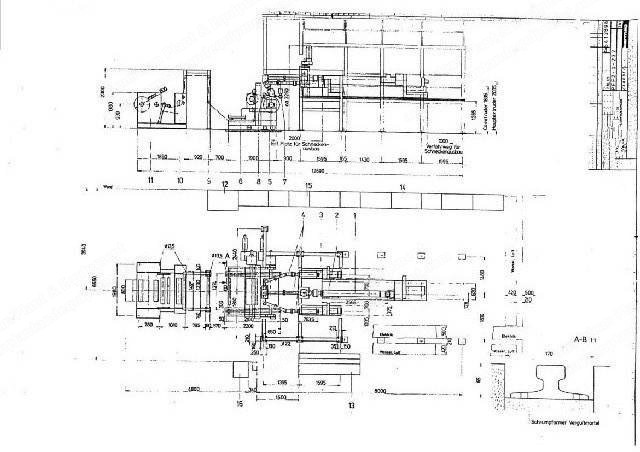

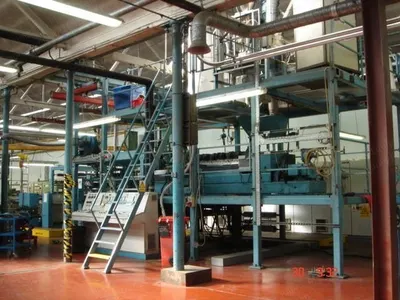

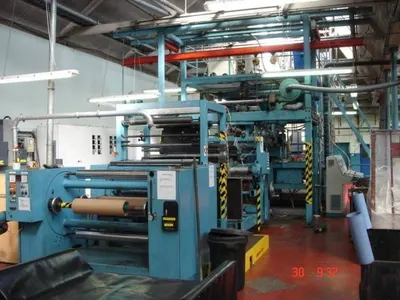

Barmag, Co-Polymer Film Extrusion Line, 1986, 600mm Working Width, 75mm Extruder, 52 m/min Max Speed

Barmag, Co-Polymer Film Extrusion Line, 1986, 600mm Working Width, 75mm Extruder, 52 m/min Max Speed

Description

  1. Overview
    1. One Barmag co-polymer film extrusion line
    2. Year: 1986 (reconditioned 2007)
    3. Manufacturer: Barmag
    4. Working width: 600 mm or 300 mm
  2. Extrusion Components

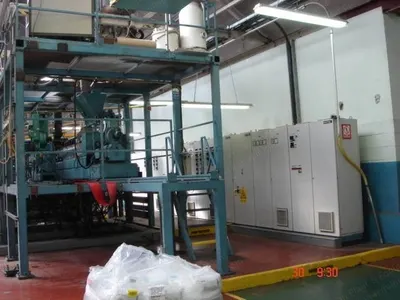

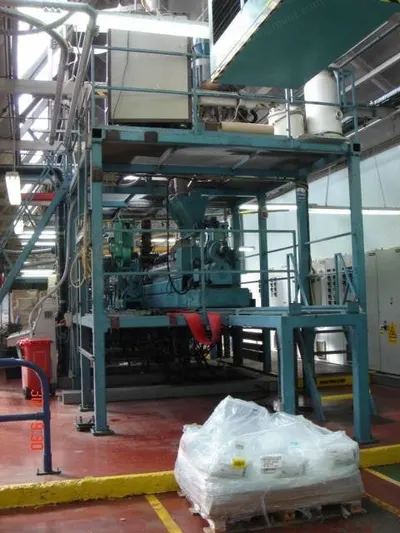

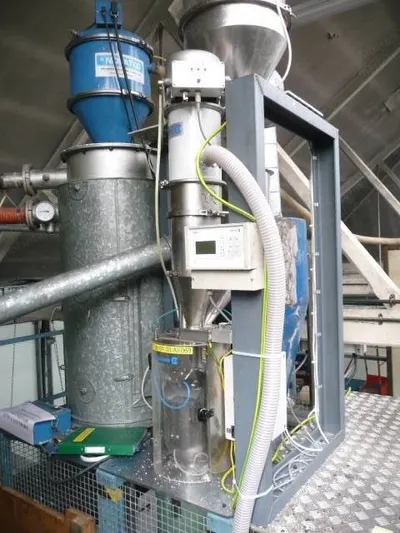

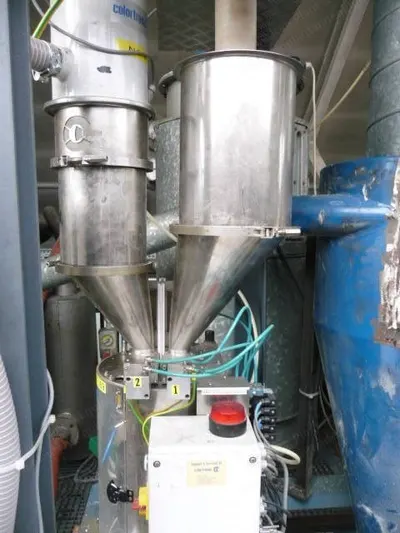

    1. Three cyclones feeding co-polymer Barmag blender

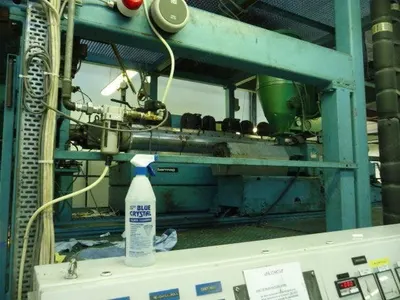

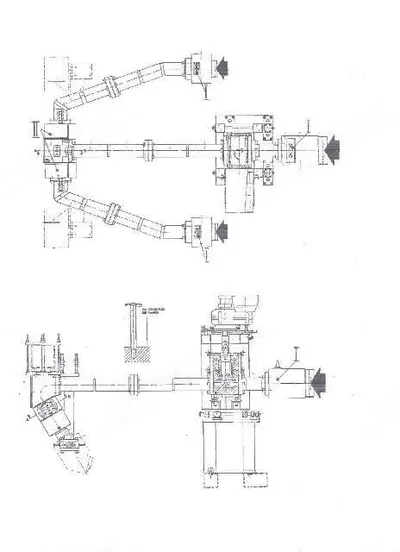

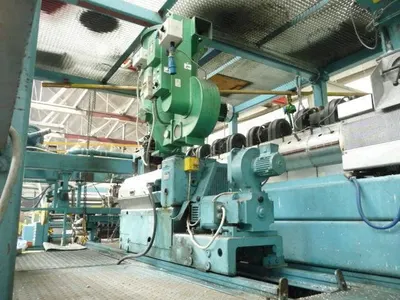

    2. Barmag 75 mm diameter extruder type 7E4 (33:1 L/D)
    3. Barmag satellite extruder (left)
    4. Barmag satellite extruder (right)
    5. Barmag screen filter unit with removable block and breaker plate
    6. Barmag melt pump 70 cm3/U model BSW3
  3. Dies and Heating
    1. Extrusion dies (700 mm) for 600 mm film with five zone heated cartridge
    2. Extrusion dies (400 mm) for 300 mm film with three zone heated cartridge

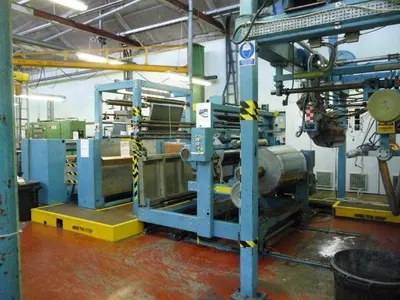

  4. Downstream Equipment

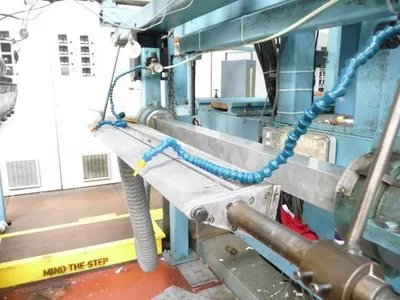

    1. Chill roll and air knife (maximum speed 52.0 metres per minute)

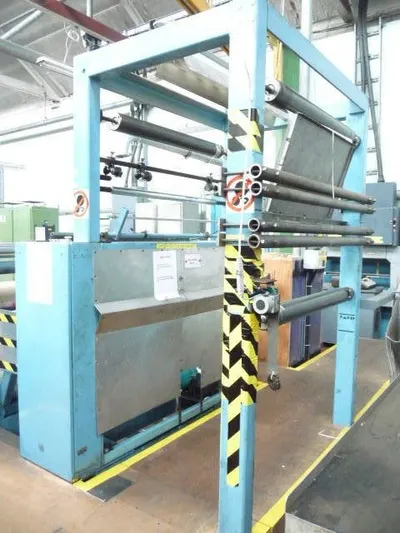

    2. Inspection frame

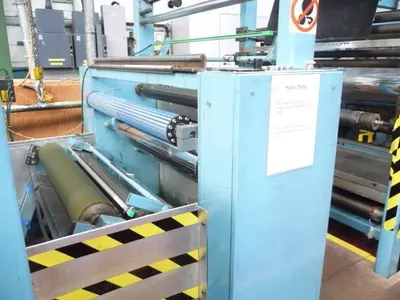

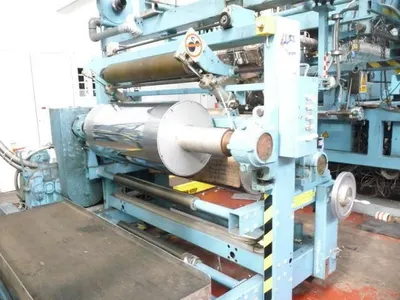

    3. Haul-off unit - 1000 mm

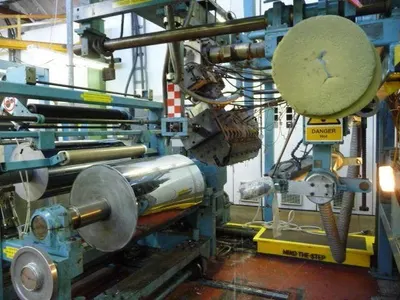

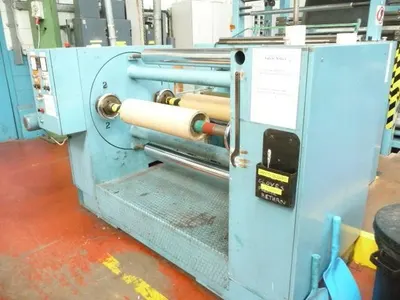

    4. Barmag turret sheet winder and take off unit (model TW17) - 1000 mm
  5. Edge Trim and Recovery

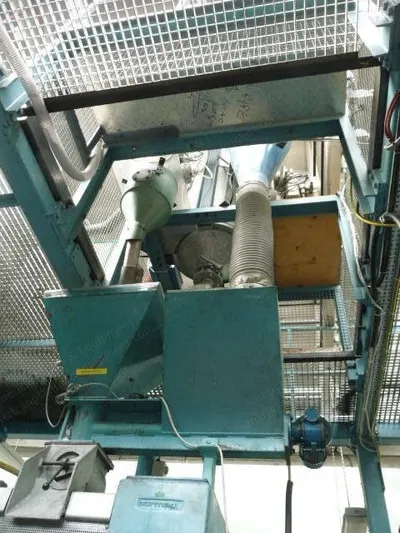

    1. Keylago edge trim recovery flake feeder
    2. Rapide of Sweden edge trim reclaim granulator
  6. Controls

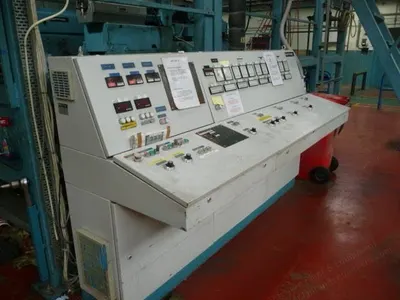

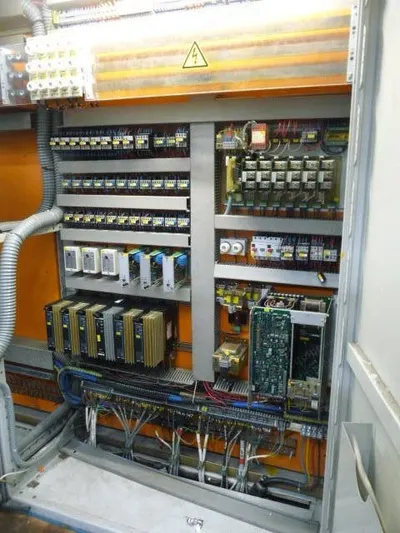

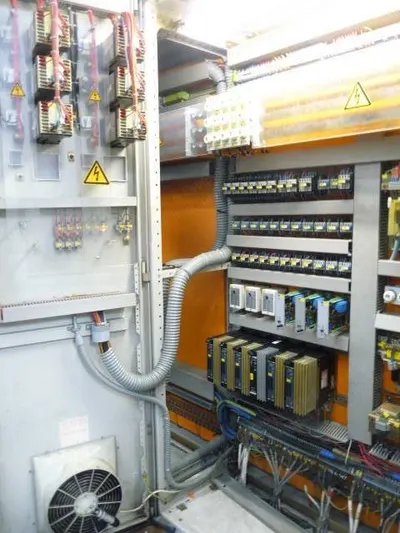

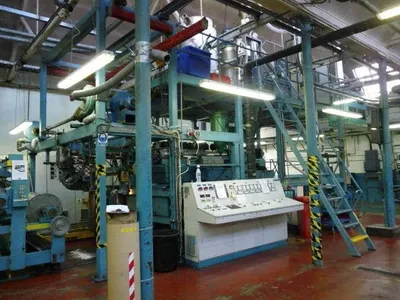

    1. Control panel and desk
