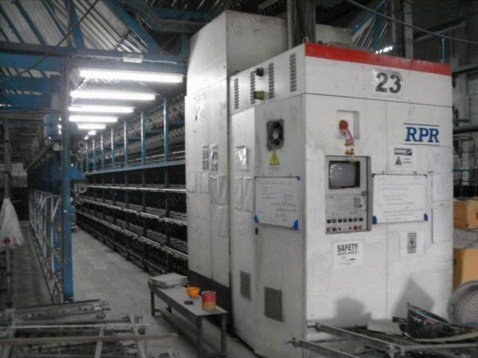

RPR, 3SDX / VE4, 1993, 216 Positions, 300-1000 m/min, 50-300 Denier

RPR, 3SDX / VE4, 1993, 216 Positions, 300-1000 m/min, 50-300 Denier

Description

  1. Overview
    1. Draw texturizing machine
    2. Maker: RPR
    3. Model: 3SDX / VE4
    4. Year of manufacture: 1993, with inverter drive
    5. Products: polyester and nylon textured yarn, 50~300 denier
    6. Number of positions: 216 per set
    7. Mechanical speed: 300~1,000 m/min
  2. Control System

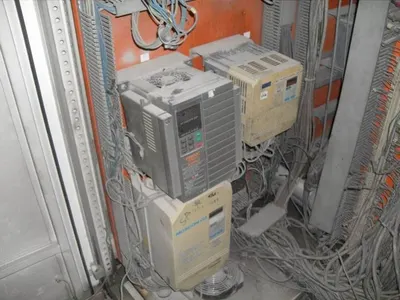

    1. Adjustable speed for all feed rollers by inverter
    2. Can run different yarn on both sides
  3. Heaters
    1. First heater: contact type, 2.2 meter length
    2. Second heater: removable tube, 1.0 meter height

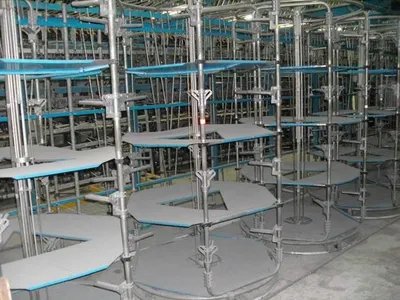

  4. Creel
    1. Rotary creel with additional stand creel for fancy yarn

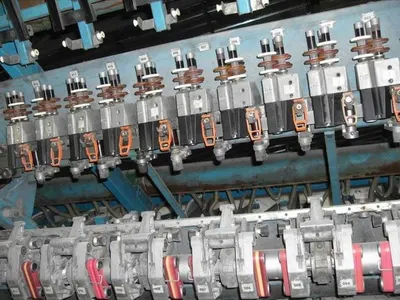

  5. Twisting Unit
    1. Poly-urethane disc friction
    2. Direction of twist: all Z, all S, and alternate Z & S
  6. Air-Intermingle Device
    1. Piping is equipped, but nozzles are not included
  7. Condition
    1. Smooth running, recently stopped, ready for packing soon
