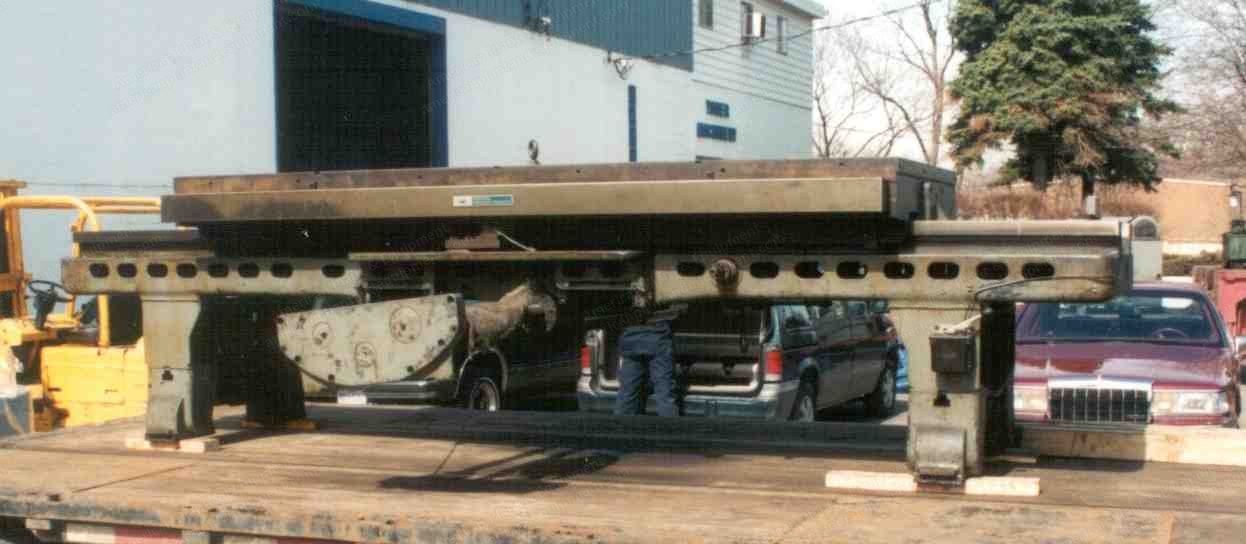

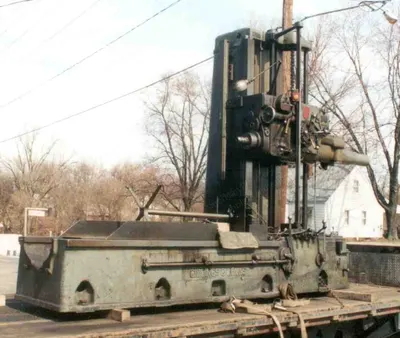

Giddings & Lewis, 330T, 3" Spindle, 98-1/2" x 36" Table, 15 HP

Giddings & Lewis, 330T, 3" Spindle, 98-1/2" x 36" Table, 15 HP

Description

  1. Overview
    1. Serial number: 71xx
    2. Model: 330t
  2. Spindle Specifications
    1. Main spindle diameter: 3 in
    2. Main spindle bore: no. 5 mt
    3. Auxiliary spindle diameter: 2 in
    4. Main spindle speeds: (36) 8.3 to 500 rpm
    5. Auxiliary spindle speeds: (36) 25 to 1500 rpm
    6. Main spindle feeds: (18).005 in to.250 in ipr
    7. Auxiliary spindle feeds: (18).001 in to.0625 in ipr
    8. Spindle stroke: 24 in
  3. Table Specifications
    1. Table area (tee-slotted): 98-1/2 in x 36 in
    2. Cross table travel: 84 in
    3. Longitudinal table travel: 72 in
    4. Table feeds: (18).5 to 25 ipm
    5. Floor mounted table outriggers: yes
  4. Head Specifications
    1. Vertical head travel: 48 in
    2. Vertical head feeds: (18).5 to 25 ipm
  5. Additional Features
    1. Rapid traverse: 120 ipm
    2. "Cordax" 2-axis digital readout: yes
  6. Power
    1. Motor: 15 horsepower
