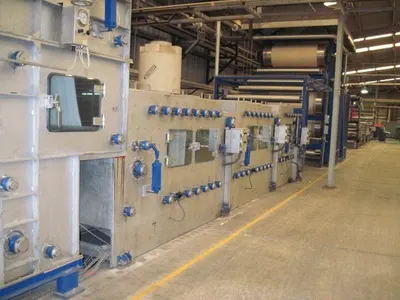

Brugman, Brubo-Matic Compact-E, Brand New, 2200mm Roller Width, Singeing/Washing/Steaming Range (New)

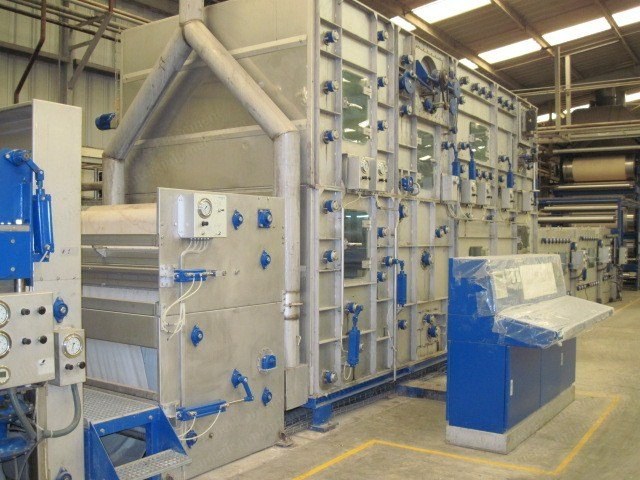

Brugman, Brubo-Matic Compact-E, Brand New, 2200mm Roller Width, Singeing/Washing/Steaming Range

Description

  1. Section A: Singeing And Desizing Range
    1. Brugman continuous open-width singeing and desizing range in Brubo-Matic Compact-E execution
    2. Roller width: 2200 mm
    3. Maximum cloth width: 2000 mm
    4. Machine speed: 6 – 60 m/min
    5. Processing technique: 1 single strand

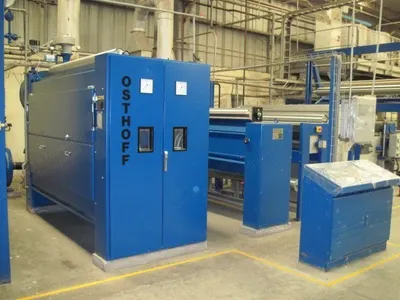

    6. Singeing machine (make Osthoff), heated with natural gas, consisting of:
      1. One cleaning and dust extraction unit Vebra-Plus 2
      2. One dust collecting filter type HL80
      3. One singeing machine model PK 93 with two double jet burners and with one singeing position
      4. One exhaust fan
      5. One air blower
      6. One pressure regulator
      7. One switch board

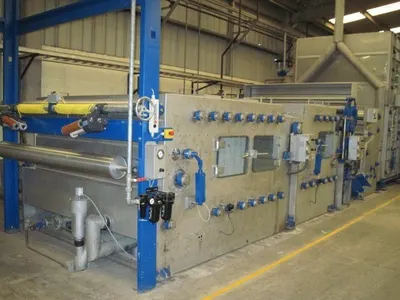

    7. Open-width impregnation unit, closed execution, type BB-CE001, with a cloth capacity of 15 meters, meander counter current flow and circulation system with filter tank, outside bearings for all cloth guiding rollers, multi-valve unit, indirect heating and a 2-bowl 40 kN membrane squeezing unit
  2. Section B: Pad-Steam Dyeing Range
    1. Brugman continuous pad-steam dyeing range in Brubo-Matic Compact-E execution
    2. Diameter of the squeezing bowls of the 30 kN squeezing units: 245/220 mm
    3. Diameter of the Unipad squeezing bowls of the 2-bowl 50 N/mm squeezing unit: 300/300 mm
    4. Padder type: F-22V
    5. Maximum bowl pressure: 50 N/mm
    6. Liquor contents of the padder trough: 102 litres
    7. Total cloth capacity of the offered open-width washing range, type BRM-CE044: 135 m

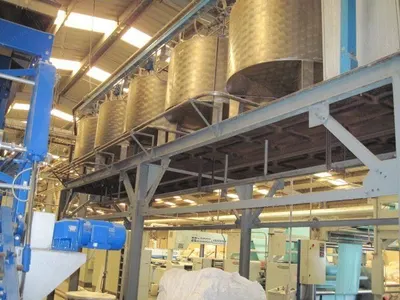

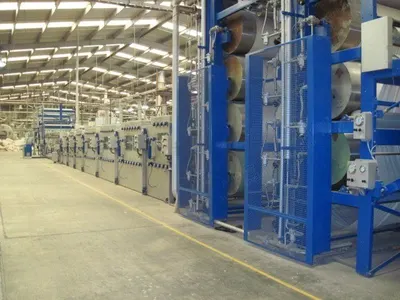

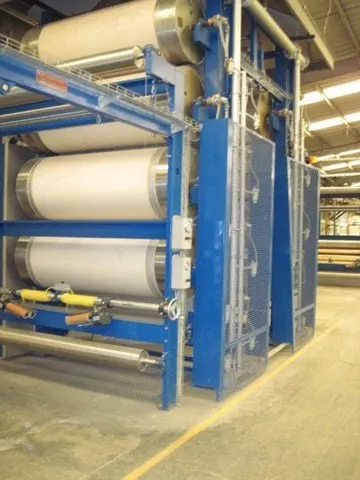

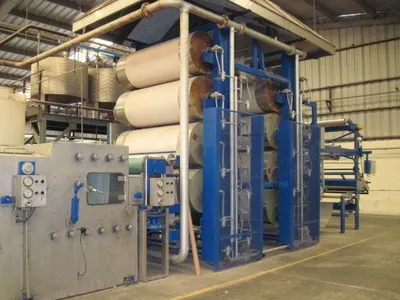

    8. Cylinder dryer:
      1. Number of stacks: 2
      2. Number of drying cylinders: 14
      3. Number of cooling cylinders: 2
      4. Diameter of the drying cylinders: 800 mm
      5. Diameter of the cooling cylinders: 800 mm
      6. Drying speed approx: 60 m/min
    9. Water and heat economizer
    10. Vertical heavy-duty Unipad 2 bowl dyeing padder with liquor displacer, type FO-22V, with deep trough, immersion length 1800 mm, two vertical padding bowls in Unipad design, suitable for a bowl pressure of 50 N/mm
    11. Dye steamer type VS-03, with 60 m cloth content, 2 internal pendulum compensators, exit waterlock and a 2 bowl 40 kN membrane squeezing unit including pendulum compensator

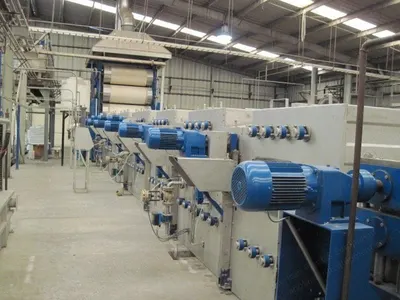

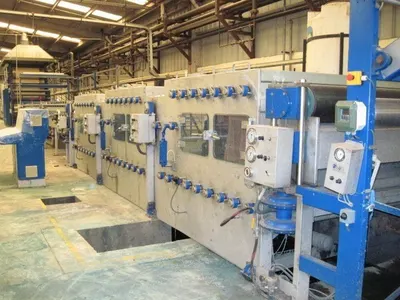

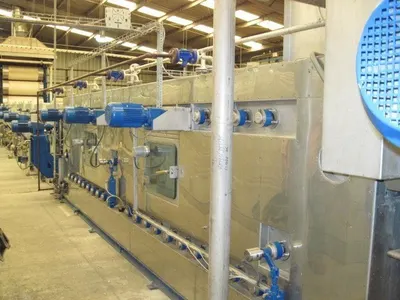

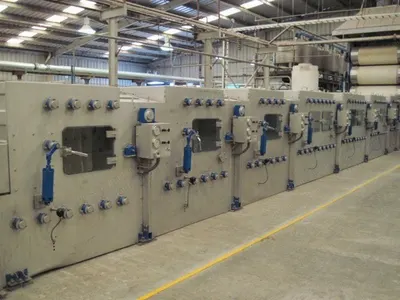

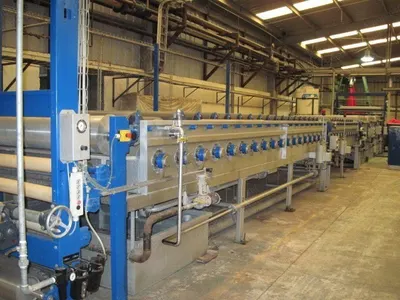

    12. Brubomatic open-width washing section, closed execution, type BRM-CE044:
      1. First compartment with a cloth capacity of 15 meters, pendulum compensator, outside bearings for all cloth guiding rollers, direct heating, multivalve overflow/countercurrent unit and a 2 bowl 30 kN membrane squeezing unit
      2. Second compartment with a cloth capacity of 15 meters, pendulum compensator, outside bearings for all cloth guiding rollers, direct heating and a 2-bowl 30 kN membrane squeezing unit
      3. Third compartment with a cloth capacity of 15 meters, pendulum compensator, outside bearings for all cloth guiding rollers, direct heating and a 2-bowl 30 kN membrane squeezing unit
      4. Fourth compartment with a cloth capacity of 25 meters, pendulum compensator, outside bearing for all cloth guiding rollers, one driven upper roller, direct heating and a 2-bowl 30 kN membrane squeezing unit
      5. Fifth compartment with a cloth capacity of 25 meters, pendulum compensator, outside bearings for all cloth guiding rollers, one driven upper roller, direct heating and a 2-bowl 30 kN membrane squeezing unit
      6. Sixth compartment with a cloth capacity of 25 meters, pendulum compensator, outside bearings for all cloth guiding rollers, one driven upper roller, direct heating and a 2-bowl 30 kN membrane squeezing unit
      7. Seventh compartment with a cloth capacity of 15 meters, pendulum compensator, outside bearings for all cloth guiding rollers, direct heating and a Unipad 2 bowl 50 N/mm membrane squeezing unit
  3. Section C: Roller Mercerizing Range
    1. Brugman roller mercerizing range
    2. Chainless mercerizing machine size 18/12, type MR-35, for wet on dry mercerizing, with a 28 meter impregnating compartment, a 2 bowl 50 N/mm intermediate squeezing unit, a 19 meter stabilizing compartment and a 2-bowl 50 N/mm final squeezing unit
    3. Indirect heating, type MR-93, for the impregnating compartment
    4. Brubomatic open-width washing unit, closed execution, type BRM-CE015:
      1. First compartment with a cloth capacity of 25 meters, pendulum compensator, outside bearings for all cloth guiding rollers, one driven upper roller, direct heating, multivalve overflow/counter current unit and a 2-bowl 30 kN membrane squeezing unit
      2. Second compartment with a cloth capacity of 25 meters, pendulum compensator, outside bearings for all cloth guiding rollers, one driven upper roller, direct heating and a 2-bowl 30 kN membrane squeezing unit
      3. Third compartment with a cloth capacity of 25 meters, pendulum compensator, outside bearings for all cloth guiding rollers, one driven upper roller, direct heating and a Unipad 2-bowl 50 N/mm membrane squeezing unit

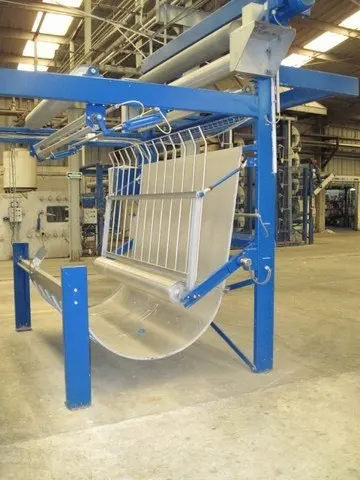

    5. Cloth delivery, type INU-51, for single lane batching, for a maximum batch diameter of 2000 mm, with bowed expander and driven batcher roller
  4. Section D: Continuous Open-Width Bleaching Range
    1. Brugman continuous open-width bleaching range
    2. Brubomatic open-width washing section, closed execution, type BRM-CE021:
      1. First compartment with a cloth capacity of 25 meters, pull roll, pendulum compensator, outside bearings for cloth rollers, one driven upper roller, direct heating, multivalve overflow/countercurrent unit and a 2-bowl 30 kN membrane squeezing unit
      2. Second compartment with a cloth capacity of 15 meters, pendulum compensator, outside bearings for all cloth guiding rollers, direct heating and a Unipad 2 bowl 50 N/mm membrane squeezing unit
    3. Brubo-Sat high add on applicator, type BB-16, with dual liquor distribution system, low liquor trough, proportional level control, add-on control nip with two pressurized metal doctors, pull-roll, bowed rubber expander and automated trough fold-away and cleaning system
    4. Brubo-Sat pre-treatment steamer, type BB-170, with a capacity of 50 m on the roller section and of 185 kg per m cloth width on the conveyor belt, with horizontal and vertical single threaded tight strand section with intermediate drives, non-sliding cloth plaiting and cloth turn-over system, open-structure stainless steel main conveyor belt and cloth spreading and centering device
    5. Brubomatic open width washing unit, closed execution, type BRM-CE030:
      1. First compartment with a cloth capacity of 25 meters, pull roll, pendulum compensator, outside bearings for all cloth rollers, one driven upper roller, direct heating, multivalve overflow/counter current unit and a 2-bowl 30 kN membrane squeezing unit
      2. Second compartment with a cloth capacity of 25 meters, pendulum compensator, outside bearings for all cloth guiding rollers, one driven upper roller, direct heating and a 2-bowl 30 kN membrane squeezing unit
      3. Third compartment with a cloth capacity of 15 meters, pendulum compensator, outside bearings for all cloth guiding rollers, direct heating and a Unipad 2-bowl 50 N/mm membrane squeezing unit

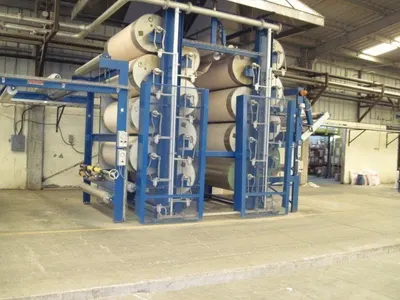

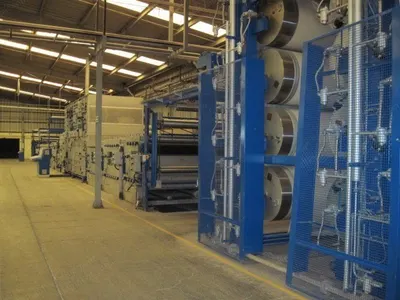

    6. Cylinder drying machine, type CD-121, with 2 stacks, one intermediate compensator and 16 cylinders, finely polished and driven by an Extremultus flat belt; each drying cylinder is connected to a stainless steel steam supply and condensate return hose and equipped with a Johnson rotary joint and siphon pipe
  5. Section E: Rotation Stand
    1. The rotation stand mainly consists of a basic unit which consists of an oil container, an adjusting pump which supplies automatically the necessary oil quantity in dependence with the driven batches, an electric motor as well as a manometer block, hydraulic hoses and hydraulic motors; this basis unit is equipped with a motor safety switch; the hydraulic winding drive is connected with the pump aggregate by means of two hydraulic hoses
