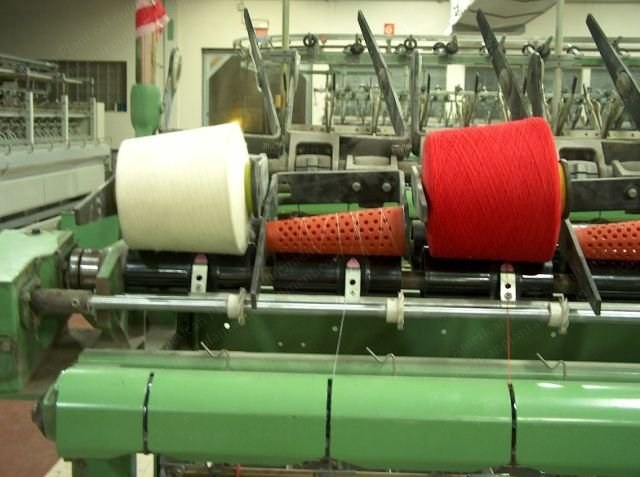

Savio, TDS Model 190 F, 1993, Double Twist Twister, 396 Spindles, 380V

Savio, TDS Model 190 F, 1993, Double Twist Twister, 396 Spindles, 380V

Description

  1. Overview

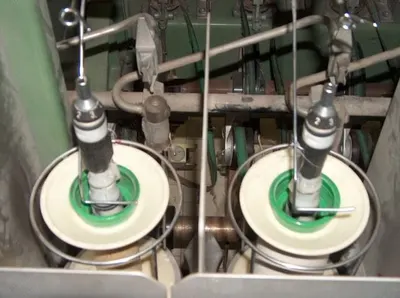

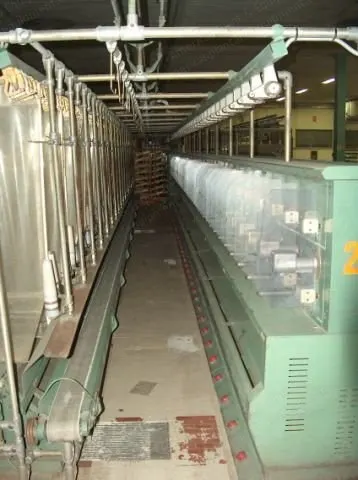

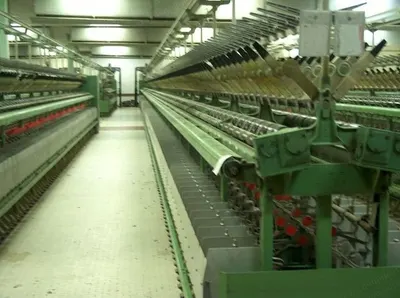

    1. Complete twisting plant for fiberglass yarn
    2. Plant consists of two machines: a Savio 2x1 TDS model 190 F double twist twister and a Savio AES model 12 doubler or rewinding machine

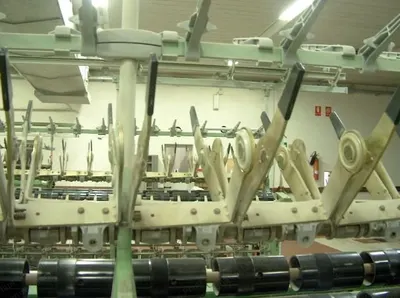

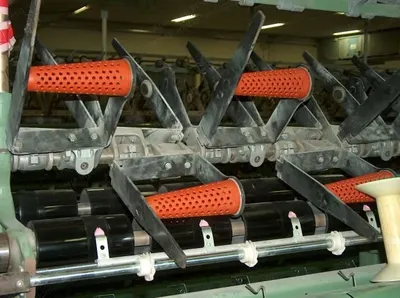

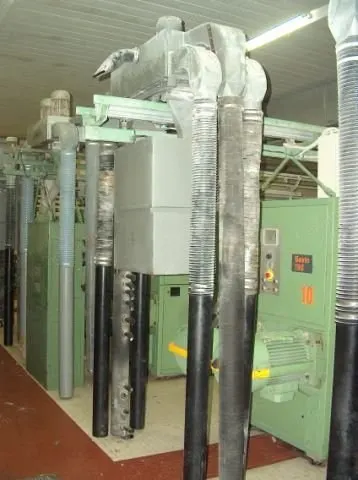

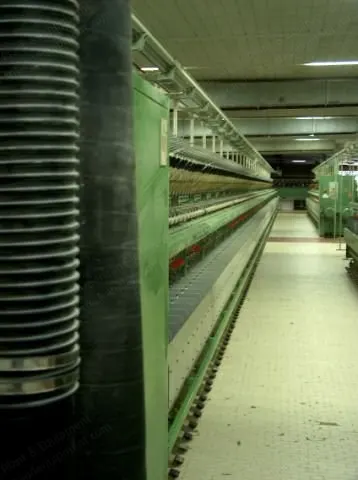

  2. Twister Specifications
    1. Brand: Savio
    2. Model: 2x1 TDS model 190 F
    3. Year: 1993
    4. 396 spindles
    5. Two sided
    6. Individual control per head
    7. Feed bobbin maximum diameter: 7 inches (130 mm)
    8. Balloon
    9. Conical delivery: 6 inches, 4 degrees, 20 minutes
    10. Magitex traveling cleaner
    11. Power supply: 380 volt, 50 Hz
    12. Complete set of pulleys for speed change
    13. Complete set of twisting gears

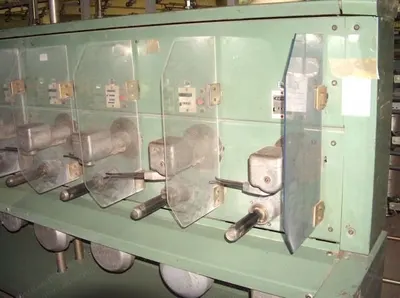

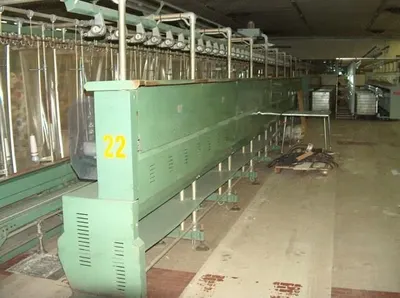

  3. Doubler Specifications
    1. Brand: Savio
    2. Model: AES model 12
    3. Year: 1993
    4. 32 positions
    5. One sided
    6. Side feeding up to 4 external creel ends
    7. Output in plastic reels: 7 inches
    8. Electronic stop motion
    9. Individual motor for each position
    10. Electronic meter counter for each position
    11. Variable speed control at head end
    12. Power supply: 380 volt, 50 Hz
  4. Included
    1. 900 plastic bobbins for the exit of the doubler
