Octir, Titano-Multitrave A2C/S3T, 1986, Woolen Spinning Line, 2500mm Working Width, 416 Spindles

Octir, Titano-Multitrave A2C/S3T, 1986, Woolen Spinning Line, 2500mm Working Width, 416 Spindles

Description

  1. Overview
    1. All equipment is from 1986
    2. In very good condition, hardly used since 1986, practically like new

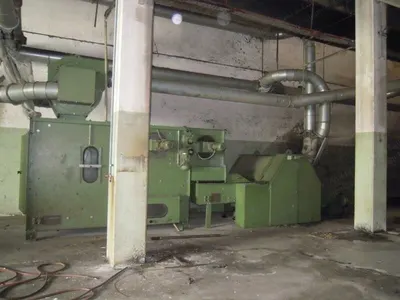

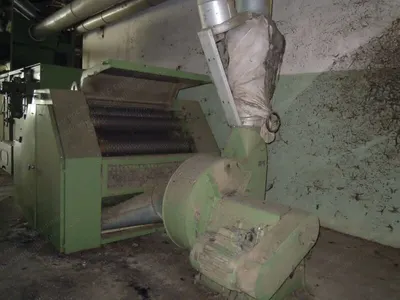

  2. Item 1: Temafa Opening And Blending Unit
    1. One Temafa opening and blending unit

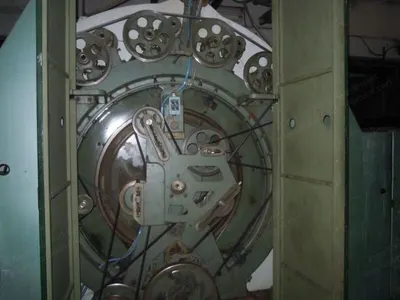

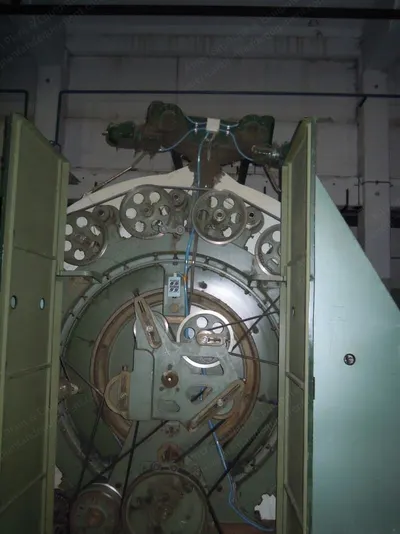

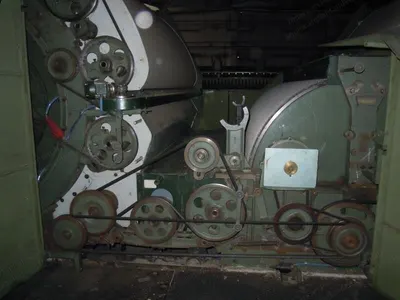

  3. Item 2: Octir Card Titano-Multitrave A2c/S3t
    1. One Octir card Titano-Multitrave "A2C/S3T" from 1986
    2. Working width: 2500 mm
    3. 208 good ends: 16 bobbins x 13 ends, tape width 11.3 mm
    4. 3 main swifts at 2000 mm diameter

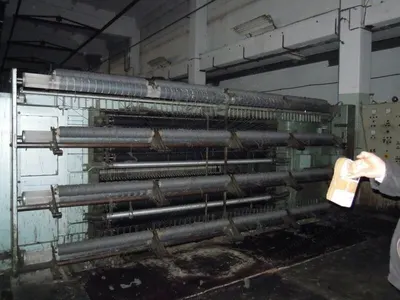

    5. Double apron rubbing condenser
    6. Voltage: 380/50 Hz
    7. Card dimensions: length 30,295 mm, width 5,170 mm, total net weight 78,000 kg
    8. Installed card power: 110 kW; during working the card uses 65-70% of the installed power
    9. Suitable for 100% wool or 50% tricot regenerate and 50% wool or synthetic regenerated or many other fibre blend, for yarn count 6-18 Nm
  4. Production Example
    1. Example of production for Nm 10/1: draft 30%, yarn count Nm 7.7, good threads 208, delivery 34 m/min, efficiency 85%, production capacity 48.2 kg/h
    2. Production in 260 working days, 24 hours per day means 300 tonnes per year

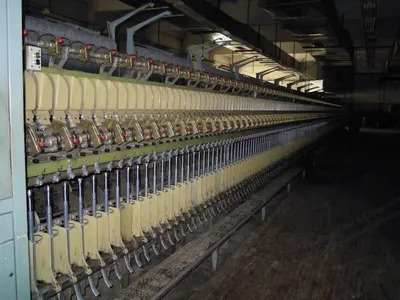

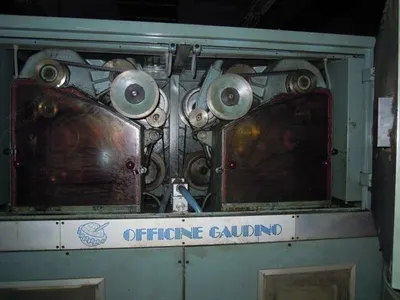

  5. Item 3: Gaudino Selfstiro Universal Type Fst/350
    1. One Gaudino Selfstiro Universal of type FST/350 from 1986
    2. 416 spindles (208 per side)
    3. 75 mm ring, 3/8" with BS
    4. 350 mm tube height

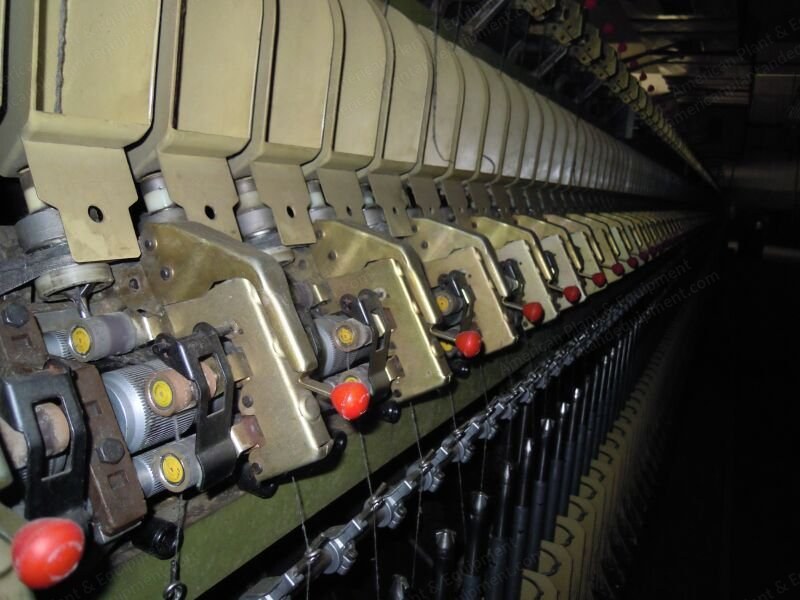

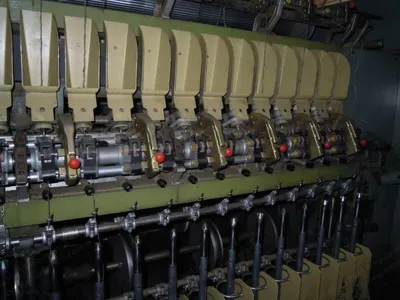

    5. SKF drafting system
    6. Double drives, 78 hp with variable
    7. Pnemafil suction
    8. Machine length: 23 m
    9. Voltage: 380/50 Hz
    10. Suitable for spinning any kind of material – wool, wool blends, cashmere, angora, camel hair, silk, synthetic fibers, cotton, regenerated fibers and with any blends of these fibers into average, fine and very fine yarn count (Nm)
    11. The two drafting zones enable, with any kind of material, the maximum draft with the highest yarn evenness, strength, elasticity, covering power, and it is the only ring spinning frame in the world which allows more drafting than on the selfacting mule with the possibility of obtaining yarns of an equal if not better quality
    12. The "Selfstiro FST" is truly the universal frame with two drafting zones which enables the customer to spin yarn from the longest fibers wool blends and change over and spin yarn from the very shortest of shoddy fibers
