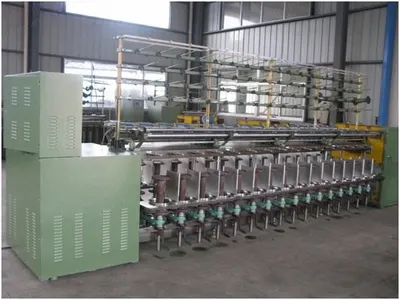

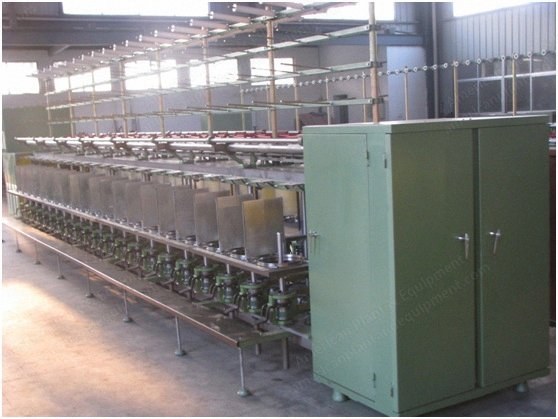

NovaStar, Big Ring Twister, 80 Position, 204mm Ring Diameter, 30kW (New)

NovaStar, Big Ring Twister, 80 Position, 204mm Ring Diameter, 30kW

Description

  1. Overview
    1. 8 inch - 80 position big ring twister
    2. Spindle: D301
    3. Ring: SGH8-204
    4. Yarn support: H type, single cone
    5. Operation type: double-panel operation
  2. Specifications
    1. Spindle pitch: 250 mm
    2. Spindle amount: 80
    3. Spindle speed: 2200/min
    4. Ring diameter: Φ204 mm
    5. Ring lift: 300 mm
    6. Rolling diameter: Φ250 mm
    7. Spindle diameter: Φ90 mm
    8. Twist range: 36~404 twists/m
    9. Direction of lay: S or Z direction
    10. Roller diameter: Φ61 mm
    11. Coil dimension: Φ74 x Φ170 x 300 mm
    12. Overall dimension: 11920 x 1300 x 2130 mm
    13. Power: 30 kW
    14. Weight: 8000 kg
