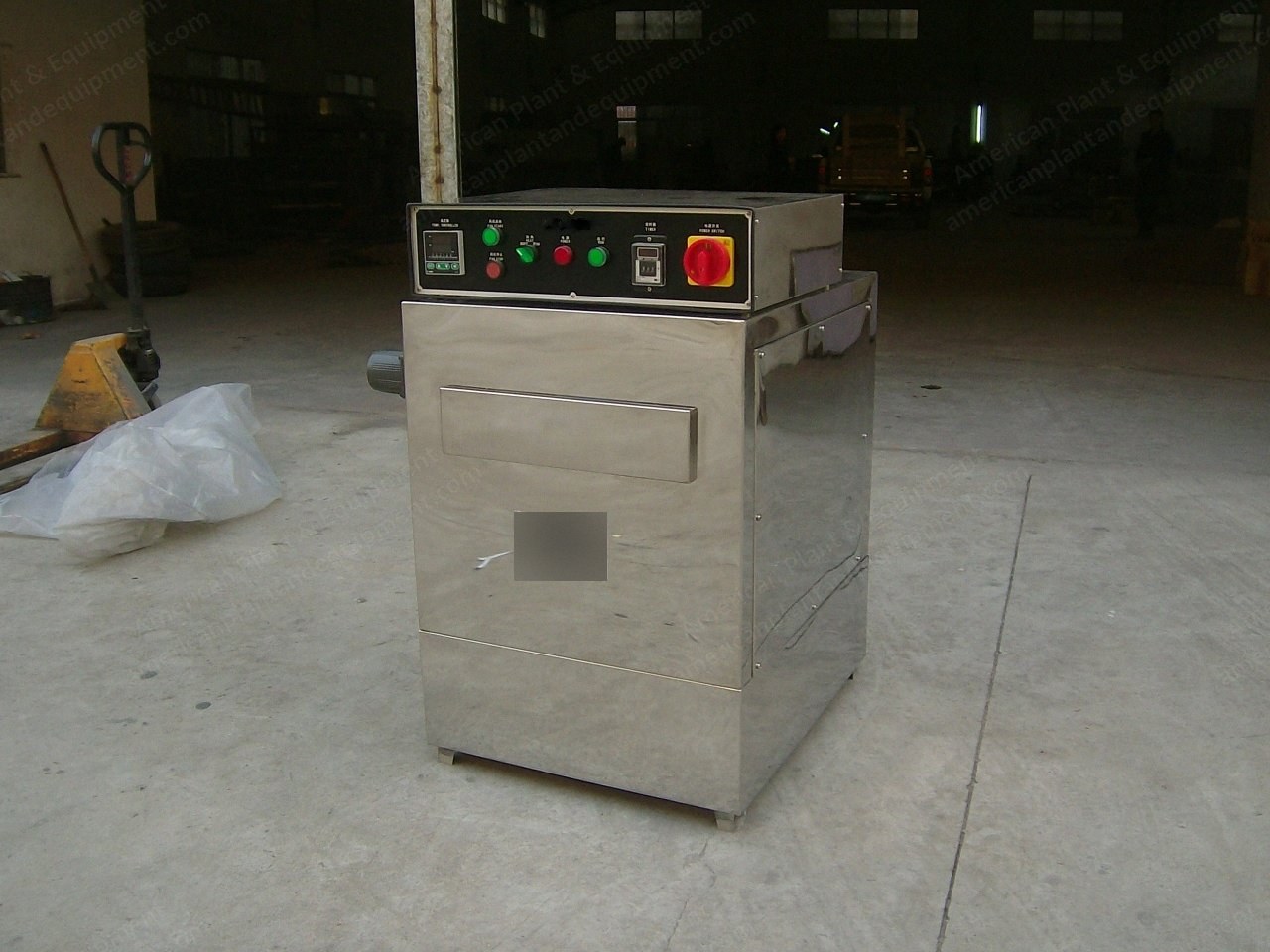

NovaStar, DG255, 300x400mm Cloth Size, 250C Max Temp, 6kW Heating Power (New)

NovaStar, DG255, 300x400mm Cloth Size, 250C Max Temp, 6kW Heating Power

Description

  1. Overview
    1. Suitable for laboratory testing of drying, setting, and thermosoling processes such as resin finishing, hand feel, and color change.
    2. Made of qualified SUS304 stainless steel.
    3. Cloth size: 300 mm × 400 mm (effective size of 250 mm × 350 mm).
  2. Hot Air Circulation Control
    1. Digital temperature control system with precision of 2%.
    2. Working temperature: 20 °C to 250 °C.
    3. Heating power: 6 kW.
    4. Temperature preservation: 1 second to 16 minutes can be preset; alarm rings after the procedure finishes and quits.
    5. Blower: 180 W, made of stainless steel.
  3. Specifications
    1. Pin plate: double stretch pin plate.
    2. Power supply: 3 phase, 480 V, 60 Hz.
    3. Machine dimensions: vertical type: L 800 mm × W 760 mm × H 1030 mm; horizontal type: L 1320 mm × W 660 mm × H 800 mm.
    4. Machine weight: about 120 kg.
