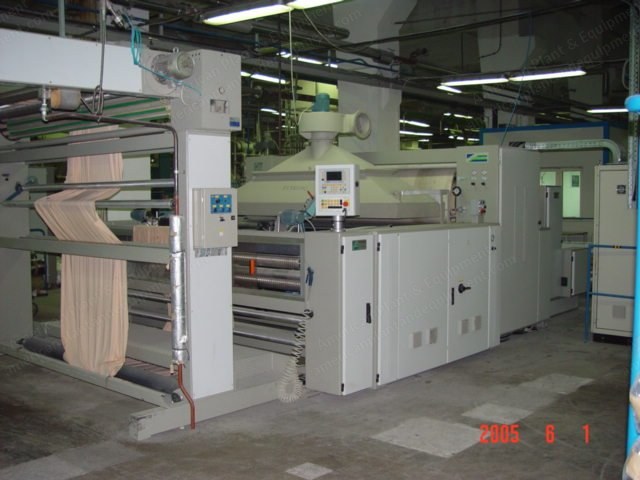

Comtex, RC 2500, Compacting Machine, 2400mm Working Width, 3-40 m/min

Comtex, RC 2500, Compacting Machine, 2400mm Working Width, 3-40 m/min

Description

  1. Overview
    1. Bianco Dogal 4
    2. Motorized feeder, mod 2500 with adjustable fabric braker and automatic centering/stretching device, adjustable steamer
    3. Tenter/equalizer machine with horizontal chain
    4. Comtex RC 2500 compacting machine with cooling and separated electrical board
  2. General Specifications
    1. Working width: 1.2 m - 2.4 m
    2. Working speed: 3 m - 40 m/min
    3. Installed power: 22 kW
    4. Steam consumption: 400 kg/h at 4 bar
    5. Compressed air consumption: 260 l/min at 6 bar
    6. Total weight: 5,500 kg
    7. Total size: 6.7 x 4.1 x 2.2 m
  3. Packing Unit
    1. Imbal. semiaut. 3000
  4. Technical Data
    1. Fabric roll up width: 2.3 m
    2. Fabric roll up diameter: 0.45 m
    3. Polyethylene film thickness: 0.05 to 0.1 mm
    4. Cylinder diameter: 0.25 m
    5. Roll width: 2.6 m
    6. Compressed air consumption: 20 l/min at 6 bar
    7. Installed power: 2.2 kW
    8. Overall dimensions: 1.00 x 3.65 x 1.65 m
    9. Total weight: 515 kg
  5. Included Equipment
    1. 2 pcs. Calator wet opener
    2. 1 pc. Ferraro calander CUD3
    3. 1 pc. Ferraro tubular compactor
