NovaStar, BR105, Potato Chip Production Line, 450kg/h Finished Capacity, 2000kg/h Raw Capacity (New)

Name: NovaStar, BR105, Potato Chip Production Line, 450kg/h Finished Capacity, 2000kg/h Raw Capacity
Brand: NovaStar
SKU: G-6500

‹ Go Back Next Product ›

Description

Overview
1. Raw material capacity: 2000 kg/h
2. Finished product capacity: 450 kg/h
3. Water consumption: 8 t/h
4. Production space: 600 m³
Specifications

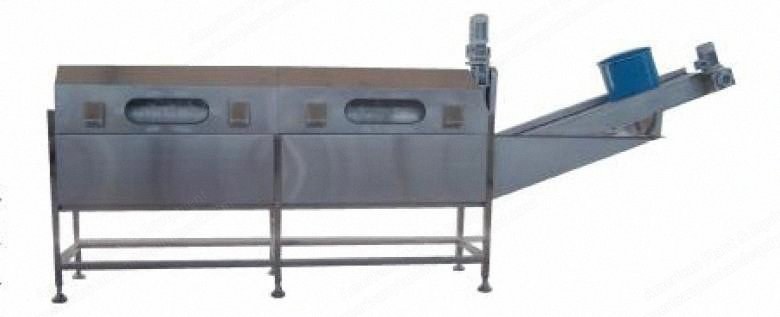

1. Washing machine: stainless steel trough, screw washer; dimensions 1200 x 1200 x 2800 mm, power 1.1 kW
2. Horizontal peeling machine: stainless steel outer plant, hopper, emery roller; dimensions 2400 x 1200 x 1400 mm, power 2.25 kW
3. Selecting machine: dimensions 3500 x 800 x 1200 mm, power 0.55 kW
4. Elevator: frequency control; dimensions 280 x 1000 x 2400 mm, power 0.75 kW
5. Cutting machine: dimensions 1200 x 900 x 800 mm, power 1.5 kW
6. Washing machine: dimensions 4500 x 1200 x 1600 mm, power 2.4 kW
7. Blanching machine: dimensions 6000 x 1300 x 1700 mm, power 3.7 kW
8. De-water machine: dimensions 500 x 1200 x 600 mm, power 0.25 kW
9. Frying machine: frequency control; dimensions 7200 x 900 x 1700 mm, power 3.5 kW
10. Heat exchanger: dimensions 100 x 1200 x 1600 mm
11. Automatic cleaner: dimensions 1200 x 400 x 1600 mm, power 0.25 kW
12. De-oil machine: dimensions 500 x 1200 x 600 mm, power 0.25 kW
13. Oil reservoir: dimensions 1500 x 3200 mm, volume 1500 mm³
14. Selecting and conveying machine: dimensions 3000 x 600 x 1200 mm, power 0.5 kW
15. Flavoring machine: stainless steel, frequency control; dimensions 1800 x 1100 x 1900 mm, power 0.62 kW

Additional Specifications

HS code	8438.60

Specifications

Capacity

450kg/h finished product, 2000kg/h raw material

Included

['Washing Machine (1.1kW, 1200x1200x2800mm)', 'Horizontal Peeling Machine (2.25kW, 2400x1200x1400mm)', 'Selecting Machine (0.55kW, 3500x800x1200mm)', 'Elevator (0.75kW, 280x1000x2400mm)', 'Cutting Machine (1.5kW, 1200x900x800mm)', 'Washing Machine (2.4kW, 4500x1200x1600mm)', 'Blanching Machine (3.7kW, 6000x1300x1700mm)', 'De-water Machine (0.25kW, 500x1200x600mm)', 'Frying Machine (3.5kW, 7200x900x1700mm)', 'Heat Exchanger (100x1200x1600mm)', 'Automatic Cleaner (0.25kW, 1200x400x1600mm)', 'De-oil Machine (0.25kW, 500x1200x600mm)', 'Oil Reservoir (1500x3200mm, 1500mm³)', 'Selecting and Conveying Machine (0.5kW, 3000x600x1200mm)', 'Flavoring Machine (0.62kW, 1800x1100x1900mm)']

Dimensions

Dimensions	Production space: 600m³
