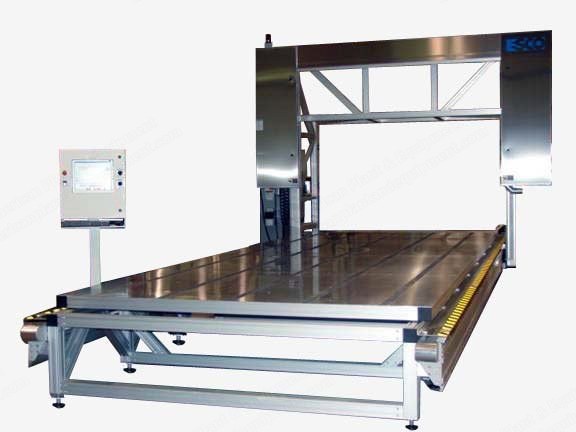

Description Overview Servo driven two dimensional profile saw Uses a traveling abrasive cutting wire to cut intricate profiles in urethane foam, both flexible and rigid Also cuts most grades of ethafoam, mineral wood, styrofoam, foamglas, and similar materials Servo drives provide extremely accurate control of the profile Control Package Standard control package includes a PC that communicates with a two-axis servo control board Profile is developed on the PC using draw software which can also convert your DXF file Profiles are stored on the PC hard drive for future use Optional Features Advanced nesting software Control panel air conditioner for cooling critical electronic components in high temperature areas Block hold down device Automatic turntable Vacuum hold down table Available Sizes Cutting height is 1430 mm for all models Cutting width 1500 mm (4.9 ft) available in cutting lengths: 3000 mm (9.8 ft), 5000 mm (16.4 ft), 7000 mm (23 ft), 10000 mm (32.8 ft) Cutting width 2500 mm (8.2 ft) available in cutting lengths: 3000 mm (9.8 ft) or 5000 mm (16.4 ft) Cutting width 3000 mm (9.8 ft) available in cutting lengths: 3000 mm (9.8 ft) or 5000 mm (16.4 ft)
