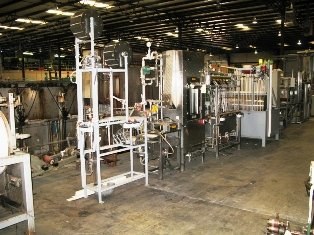

Mageba Single End Dye Line, 2006, 200mm Working Width, Left to Right Operation

Mageba Single End Dye Line, 2006, 200mm Working Width, Left to Right Operation

Description

  1. Overview
    1. Working width: 200 mm (8)
    2. Left to right operation
    3. Electrical: 230/400 V, 3-phase, 50 Hz
    4. Steam consumption: 150 kg/h
  2. Prefeed Section
    1. EZ-J prefeed with knot detector
  3. Dye Padder
    1. Rapid color 3 roll dye padder
  4. Infrared Predryer
    1. Infrared predryer with 18 m capacity
    2. Upper roller drive
    3. Dancer air control
    4. Thermostatic temperature control
  5. Steam Chamber
    1. High temperature steam chamber, 60 m capacity
  6. Wash Tanks
    1. 3 quick wash tanks, each 45 L
  7. Drying Cylinder
    1. Single cylinder drying cylinder (steam), teflon coated and shrinkmaster cylinder
    2. Size: 1000 mm diameter x 1500 mm long
    3. PSI: 70
  8. Take Off Unit
    1. Driven take off unit
  9. Liquor Tanks
    1. 2 dye and finish liquor tanks, each 50 L
    2. With circulation pump and automatic level control
