NovaStar, RS122, 6-Cylinder, 150-200 kg/hr Capacity, 77kW, Rag Tearing Recycling Line (New)

NovaStar, RS122, 6-Cylinder, 150-200 kg/hr Capacity, 77kW, Rag Tearing Recycling Line

Description

  1. Overview

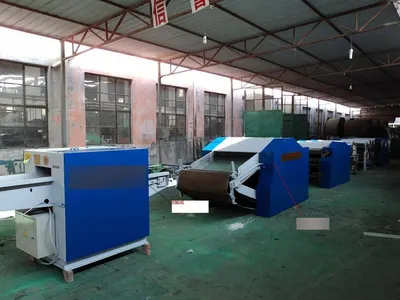

    1. RS122 ragpicking line consisting of six sections
    2. Capacity: 180-200 kg per hour (depending on raw material)
    3. Requires one 40’ HQ container to load all machines
    4. Spare parts: three new blades provided
  2. Cutting Machine D-350
    1. Output: 1000-1500 kg per hour
    2. Blade roller diameter: 320 mm
    3. Roller speed: 230 rpm
    4. Blade roller motor: Y132S-8, 5.5 kW, 1 unit
    5. Feeding and discharging motor: Y 90L-4, 1.5 kW, 1 set
    6. Chief bearing: 6216E, 4 pieces (blade roller)
    7. Conveyor belt: feeding part 380 x 2100 x 4 mm, 1 piece; discharging part 380 x 2750 x 4 mm, 1 piece
    8. Overall dimensions: 2500 x 960 x 1500 mm
  3. Opening Machine QK-1060
    1. Output: 150-200 kg per hour
    2. Roll diameter: 600 mm, steel cylinder
    3. Rotation speed: 1350 rpm
    4. Condensor: 630 mm
    5. Fan: 1.5 kW, one set
    6. Chain: four pieces
    7. Power: 18.5 kW
    8. Lickerin wire: 3.5-4.5 TPI
    9. Dimensions: approximately 2600 x 1450 x 1550 mm

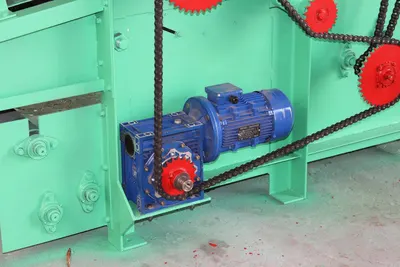

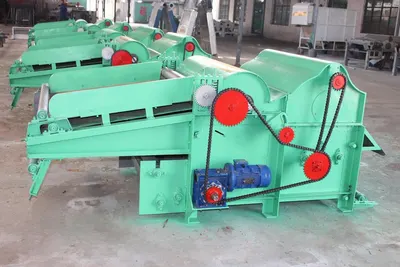

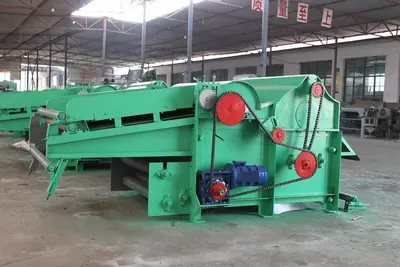

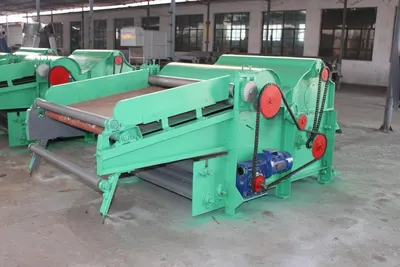

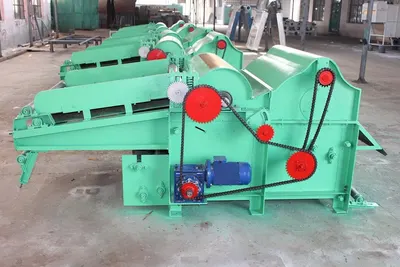

  4. Recycling Machine RS122
    1. Main technical parameters for the RS122 recycling machine
    2. Number of rollers: four cylinders/chambers
    3. Roll diameter: 400 mm
    4. Front roll diameter: 400 mm
    5. Back roll diameter: 400 mm
    6. Dust basket diameter: 530 mm
    7. Lickerin condensor: first cylinder 4.5 TPI, second cylinder 6 TPI, third cylinder 7 TPI, fourth to sixth 7.5 TPI
    8. Outside dimensions: 5400 x 1720 x 1160 mm (L x W x H)
    9. Number of motors and capacity: first motor 11 kW on the first section; others 7.5 kW for three sections
    10. Capacity: 150-200 kg per hour
    11. Distance between roll and feed plate: 300 mm
    12. Distance between roll and feed plate: 50 mm
    13. Includes main motors, rubber back lattices, and feeding plate
  5. Electric Control Box D-100
    1. Normal control on every cylinder and every motor
  6. Magnet “V” Type
    1. Four pieces to remove steel particles
  7. Dust Collecting Box H-1
    1. One set for collecting dust to the outside of the working shop
  8. Baling Machine D2-20
    1. One set, optional
