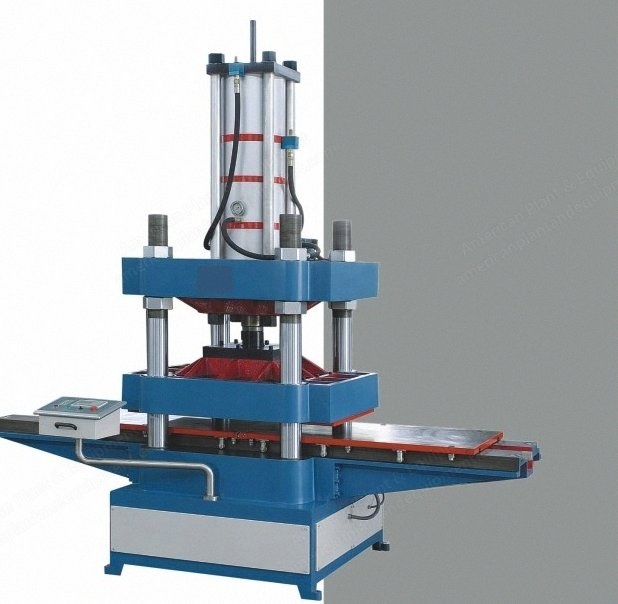

Description Overview Yz series puncher machine adopts dive technology, converting hydraulics into supercharge. The working stroke is controlled by pneumatic. When the cutter touches the products, the pressure supercharges to ctu, then the mould plate returns. The stacking and cutting station cycles to work. Application Area Yz series machine has lower consumption, lower noise, accurate fixed position, long-life mould and easy operation. Suitable for press punch, bending, forging of plastic products in the package, light industry, electronics and hardware fields. Specifications Model: DT101 General stroke: 100 mm Working stroke: 5 mm Supercharge ratio: 1:72 Air consumption: 0.0054 m³/min Power consumption: 100 w/hr Mould size maximum: 700 x 1300 mm Air pressure: 0.6-1.0 mpa Power: 220 v, 50 hz Speed force: 1752-2920 kgf Returning force: 4500-7540 kgf Punch force: 128-220 t Weight: 6000 kg Dimension: 3420 x 1500 x 2100 mm
