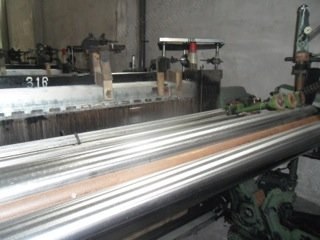

Picanol, Gamma, 1997, 1900mm Working Width, 4 Colors, Staubli Electronic Dobby

Description

Overview
1. Type gamma - 4 r t 190 filament version
2. Of which yom: 25 (1997) + 15 (1998)
3. Working width 1900 mm
4. 4 color
Specifications
1. 4 pre winders lgl progress
2. With bobb instand
3. With staubli electronic dobby of which: 18 (1997) with dobby type 2612 for 8 frames, 4 (1997) with dobby type 2622 for 24 frames, 18 (1998) with dobby type 2622 for 8 frames
4. Pick finding and slow motion by slow drive
5. Electronically driven independent selvedge motion elsy
6. Plus 3 end leno l+rhs
7. Off looms take up with inspection table
8. With integrated step board front and back
9. Electronic let off and take up
10. Etu with variable pick density
11. Single warp beam dia 1000 mm; reinforced beam barrel: dia 218
12. Full option electronic controls
13. European safety standards
14. With double backrest rollers
15. Warp stop motion with 6 bars
16. Electronic warp tension sensor
17. Voltage: 380 v/50 hz
18. Heddles and drop wires as: 5000/loom
19. 1 warp beam per loom
20. Full accessories as fitted
