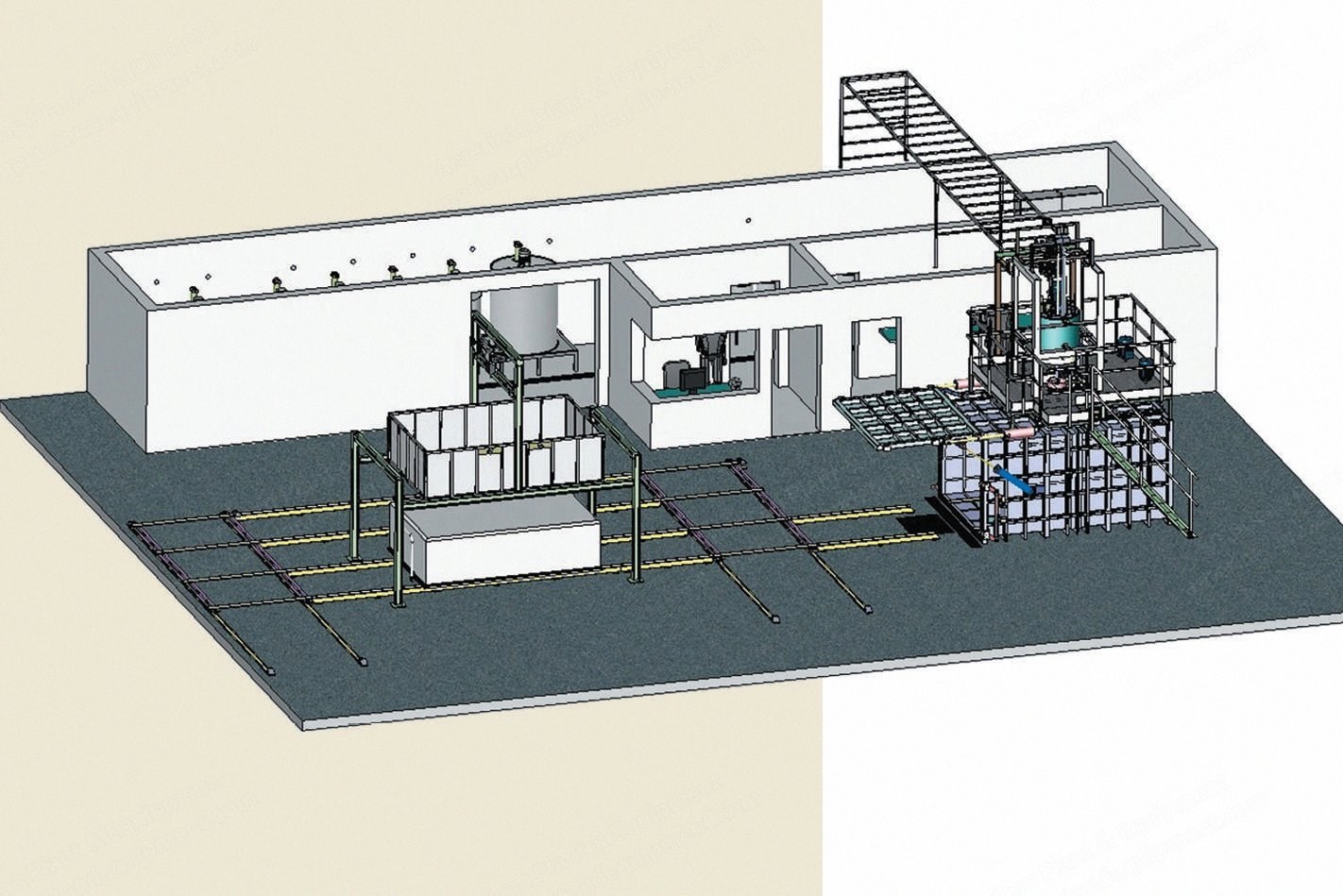

NovaStar, 300M, 3x2x1.25m Mould, 1 Block Every 5 Minutes (New)

NovaStar, 300M, 3x2x1.25m Mould, 1 Block Every 5 Minutes

Description

  1. Overview
    1. Mixing head equipped with the following streams
  2. Main Streams
    1. 1 polyol stream with a 2,000 liter stainless steel tank equipped with motor and pump
    2. 1 isocyanate stream with a 1,000 liter stainless steel tank equipped with motor and pump
  3. Additive Streams
    1. 1 amine stream with a 100 liter stainless steel tank equipped with motor and pump
    2. 1 silicone stream with a 100 liter stainless steel tank equipped with motor and pump
    3. 1 water stream with a 100 liter stainless steel tank equipped with motor and pump
    4. 1 stannous tin stream with a 100 liter stainless steel tank equipped with motor and pump
  4. Cleaning
    1. 1 cleaning water line for washing the mixer at the end of the workday
  5. Mould
    1. One rectangular mould measuring 3 m x 2 m x 1.25 m (these measurements can be altered to suit the customer)
    2. This mould can be fitted with a planiblock to ensure a flat top block
  6. Control System
    1. Computer with software management program that includes:
    2. Individual control of pumps (calibration, recirculation, etc.)
    3. Automatic dosing of components
    4. Control of premix speed
    5. Control of all mixing speed and time
    6. Permanent visualization of actual state of production
    7. Security water maximum
    8. Register of formulas
  7. Cycle
    1. The machine can produce a block every five minutes, as when set to produce more than one block, the polyol mixture is loaded and transferred to the mixer, immediately after another load of polyol is loaded into the transfer and so on. This way as soon as the mould is positioned it is only necessary to press the start button. (During this process the isocyanate is being loaded simultaneously for each batch into a separate compartment of the transfer)
  8. Additional Streams (Additional Charge)
    1. Polyol lines with 1,000 liter inox tanks equipped with motor and pump
    2. Additive streams (amines, silicones, colours) with 100 liter inox tanks equipped with motor and pump
