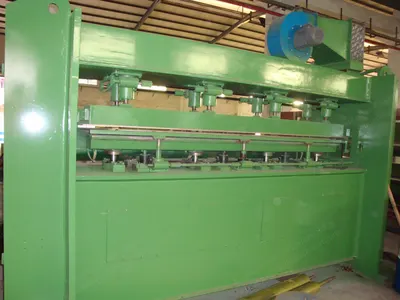

NovaStar, NN252, New, Medium Speed Needle Loom, 3200mm Working Width, 4000 Needles/m, 15kW Main Motor (New)

NovaStar, NN252, New, Medium Speed Needle Loom, 3200mm Working Width, 4000 Needles/m, 15kW Main Motor

Description

  1. Overview
    1. Applicable to qualified acupuncture nonwovens productions with high density and high tension.
    2. Adopts crank balanced tank automatic cycle lubrication.
    3. Compact structure, convenient adjustment, and high efficiency.
  2. Machine Features
    1. Compact oilless needle loom with automatic rise and fall.
    2. Air cooling system.
    3. Epoxy needle plate, screen plate, and peeling plate are made of manganese steel.
  3. Technical Specifications
    1. Installed power: main motor 15 kW (frequency converter), feeding motor 1.5 kW, lift motor 0.75 kW.
    2. Stroke: 50 mm.
    3. Feeding speed: 0.6-10 m/min (converter control).
    4. Acupuncture frequency: 600 n/min.
    5. Maximum working width: NN252 mm.
    6. Needle density: 4000 needles/m.
