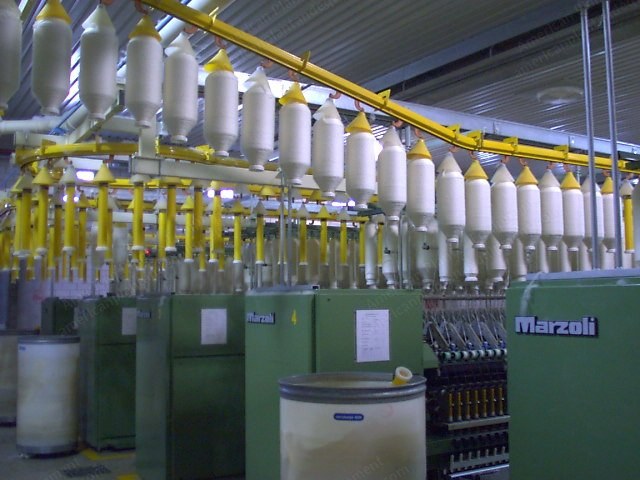

Marzoli, b-12 sb, Cotton Carding Machine, 1996

Marzoli, b-12 sb, Cotton Carding Machine, 1996

Description

  1. Overview
    1. Complete Marzoli opening line and Rieter preparation line for cotton processing.
    2. All machines manufactured in 1996 or 1997 and acquired in 1997.
  2. Opening Line
    1. Super blender tipo B12 SB by Marzoli, model B-12 SB, year 1996. Working width of carriage: 2250.0 mm, tower rotation: 180°, working length: 25.0 m, travel speed: 15 m/min, empty return speed: 20 m/min, average tower rotation speed: 20 m/min, extraction blade diameter: 250 mm, extraction blade revolutions: 1450 rpm, number of blade tips: 250, bench size: 62 bales.
    2. Motoventilador contrafuga motor by Marzoli, model XC-501-R128-160, year 1996.
    3. Boquilla de imanes permanentes (permanent magnet tube) by Marzoli, model B21/4, year 1996. Retains metallic particles in processed fibers.
    4. Cargadora de desperdicio Rolando by Marzoli, model RD1, year 1996. First and second pressure cylinder diameter: 192 mm, entry cylinder diameter: 90 mm, upper and lower feed cylinder diameter: 80 mm, drum cylinder diameter: 600 mm.
    5. Separador de metales (metal separator) by Jossi, model C-22-710, year 1996.
    6. Jaula de aspiración mod. batería by Marzoli, model B41/2, year 1996. Working width: 1000 mm, perforated drum diameter: 475 mm, separator cylinder diameter: 300 mm, production: 600 kg/h, air capacity: 4400 to 5500 m³/h.
    7. Distribuidor neumático (pneumatic distributor) by Marzoli, model B-92/6, year 1996.
    8. Mezclador autom. universal by Marzoli, model B-143, year 1996. Number of chambers: 6, production: 900 kg/h, feed roller diameter: 205 mm, exfoliating blade diameter: 400 mm, technological air: 3500 m³/h.
    9. Abridoras con dos aspas (openers with two blades) by Marzoli, model B-31/1, year 1996. Number of blades: 2, blade diameter: 609 mm, 782 rpm, peripheral speed: 782 m/min, number of grids: 2, knives per grid: 35, production for cotton: 600 kg/h, air flow for waste centralization: 1700 mm.
    10. Abridoras horizontal aspas de puntas (horizontal openers with pointed blades) by Marzoli, model B36, year 1996. Production: 600 kg/h, fluted cylinder diameter: 125 mm, pinching cylinder diameter: 75 mm, number of feelers: 20, pointed or needle blade diameter: 415 mm.
    11. Distribuidor neumático de desvío (pneumatic diversion distributor) by Marzoli, model B92/6, year 1996.
    12. Motoventilador para alimentación (feed motoventilator) by Marzoli, model B151, year 1996. Power: 4.0 kW, variable speed: 1200 - 2400 rpm, fan diameter: 425 mm, maximum air capacity: 5000 m³/h, number of feedable silos: 1 - 10.
    13. Jaulas de aspiración y despolvedora (suction and dust removal cages) by Marzoli, model B41/1, year 1996. Working width: 1000 mm, perforated drum diameter: 475 mm, separator cylinder diameter: 300 mm, production: 1200 kg/h, air capacity: 4400 m³/h.
    14. Dispositivos de prevención de incendio (fire prevention devices) by Jossi, models A04.1, A04.2, year 1997.
    15. Silo modelo batería by Marzoli, model B138, year 1996. Mouth diameter: 90 mm, technological air recovery lower chamber: 700 m³/h max, feed channel: 100 x 500 mm, removal channel for dusty air: 225 x 500 mm, maximum dusty air removal: 3600 m³/h, depression: 10-15 mmH₂O.

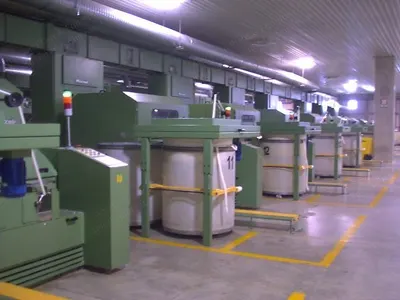

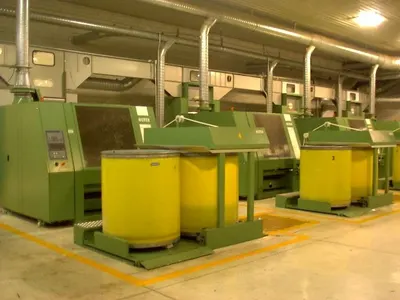

    16. Cardas (cards) by Marzoli, model CX400, year 1997. Working width: 1016 mm, feed cylinder diameter: 80 mm, clothed take-in cylinder diameter: 350 mm, clothed drum diameter: 1290 mm, clothed doffer cylinder diameter: 706 mm, movable flats: 58, first and second draft cylinder diameter: 40 mm, draft at delivery: 1-1.5, total draft with automatic feed: 50-250, working can diameter: 40, can height: 48, line pressure: 7-10 bar max, optimal working pressure: 6 bar, free air consumption: 3000 l/h, waste suction air consumption: 3300 m³/h.
    17. Cuadro eléctrico centralizador (central electrical panel) by Marzoli, model B95/4, year 1997.
  3. Preparation Line
    1. Estiradores manuares (draw frames) by Rieter, model SB2, year 1997. Fiber length up to: 80 mm, feed weight: 20 - 50 ktex, delivery sliver weight: 2.5 up to 7 ktex, doubling: 6 up to 8 times, draft: 5.17 up to 11.83, number of deliveries: 2, delivery speed: 250 - 800 m/min, speed increments: 50 m/min, drafting system: 3 over 3 with pressure bar for controlled fiber guidance, integrated dust suction, automatic can changer, input can diameter: 40, input can height: 48, output can diameter: 24, output can height: 48, positively driven feed roller, silver monitor at delivery.
    2. Manuares reunidores (draw frame finishers) by Rieter, year 1997. Maximum mechanical speed: 150 m/min, maximum technological speed: 125 m/min, maximum web weight: 80 g/m, maximum can diameter: 24.
