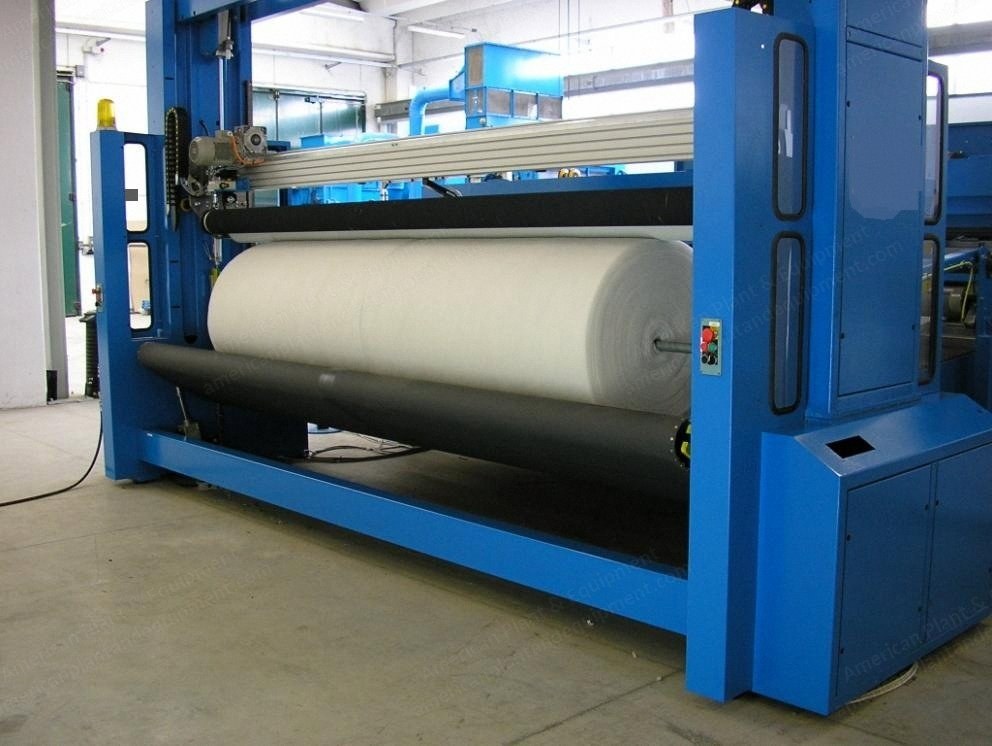

NovaStar, WN179, New, Working Width 3000mm, Max Roll Diameter 1500mm, Automatic Threading and Doffing (New)

NovaStar, WN179, New, Working Width 3000mm, Max Roll Diameter 1500mm, Automatic Threading and Doffing

Description

  1. Overview
    1. Working width: 3000 mm
    2. Max. roll diameter: 1500 mm
    3. Other specifications upon request
  2. Automatic Mode Specifications
    1. Material weight: 60 to 1000 g/m²
    2. Automatic threading/roll start up to a density of 20 kg/m³
    3. For densities > 20 kg/m³, threading/roll start must be done manually
    4. Automatic winding for densities between 5 kg/m³ and 20 kg/m³
    5. Possibility to vary the tension of the roll
    6. Possibility to wind in automatic and manual mode
    7. AC drives with inverter
  3. Included Components
    1. Frame structure
    2. Feeding apron + doffing apron
    3. Mandrel launching device + four mandrels
    4. Driven V-shaped apron configuration
    5. Compression carriage
    6. Threading roller
    7. Automatic threading and doffing
    8. One shuttle delivery apron at the rear side of the winding unit, working width 3000 mm, capable of moving backwards and forwards, mounted on rails, mounted on weigh cells, with digital display to visualize the total weight of the rolls currently placed on the conveyor band, AC drives and inverter
    9. Spiral roll wrapping machine with max. roll length 3000 mm and max. roll diameter > 1000 mm, including two wrapping film dispensers, total closure of the roll(s), PE cling film magazine, longitudinal wrapping of the upper and lower side of the roll plus the two ends, hot wire bar for welding of PE cling film, spiral wrapping action by circulating PE film carriage with adjustable forward speed, AC drives and inverter
    10. One delivery apron with max. roll length 3000 mm and max. roll diameter > 1000 mm, including lateral roll dumping, incorporated weigh cells, AC drives and inverter
