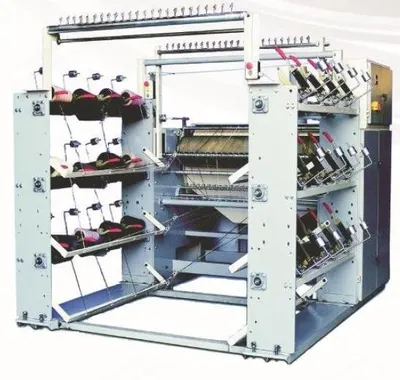

Hemaks, HMX 124-B, Yarn Raising Machine, 2500mm, 24 Bobbins (New)

Hemaks, HMX 124-B, Yarn Raising Machine, 2500mm, 24 Bobbins

Description

  1. Overview
    1. Bobbin driving with drums
    2. Flat and conical bobbin output
    3. 200 mm drum gives 24 bobbins
  2. Specifications
    1. Machine speed: 120 meters/minute (process speed depends on process parameters)
    2. Drafting roller diameter: 260 mm
    3. Raising roller diameter: 220 mm
    4. Total motor power: 4 kW
    5. Number of motors: 2 pcs
    6. 1 main motor (2.5 kW)
    7. 1 fan motor (1.5 kW)
  3. Dimensions
    1. Width: 2500 mm
    2. Length: 4500 mm
    3. Height: 2200 mm
  4. Features
    1. With the speed control unit (inverter) the machine accelerates softly and decelerates in time
    2. When yarn break occurs, machine stops automatically (24 V DC brake system)
