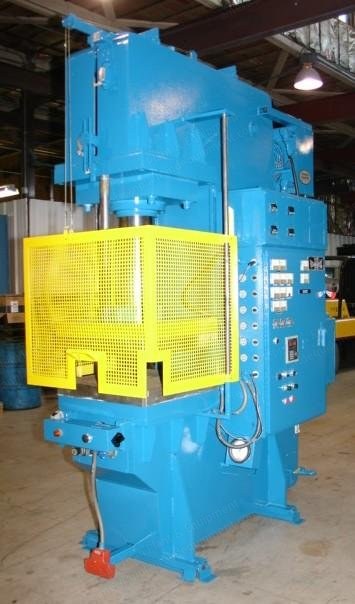

Description Overview Has 610mm x 610mm electric platens Approximately 635mm left to right x 685mm front to back including insulation and rear terminal box Each platen has 8 strip heaters (1200 watts each and 240 volts) Self-contained hydraulic system Self-contained electrical control system: Allen Bradley SLC 150 PLC, AB T-CAT Some prints included Specifications 305mm bore clamp cylinder with 200mm rod and 460mm stroke Max daylight approximately 610mm with heated platens, 760mm without 1040mm operator height Guided with clamp cylinder and a 50mm rod/post Motor: 5 hp, 1200 rpm, 230/460 volts Submerged pumps: Vickers 35VTA vane pump (35 gpm) coupled with a G5-5-A15-R6-23R gear pump (1.6 gpm) 40 gallon tank; air cooler; valving; etc. Approximate speeds: 70 ipm fast close, 3 ipm pressing, 125 ipm open Overall dimensions: 1220mm x 2290mm x 3125mm tall Approximately 2270 kg Condition and Features Pneumatically operated safety cage with interlock Six extra thermocouple jacks and plugs for aux mold heaters Four temp controllers 12 amp meters "Optitouch" type palm buttons: e-stop, auto/man, cure timer on/off, hyd on/off, platens on/off, control power on/off, press open "Clamp sealed" light; adjustable limit switches; etc.
