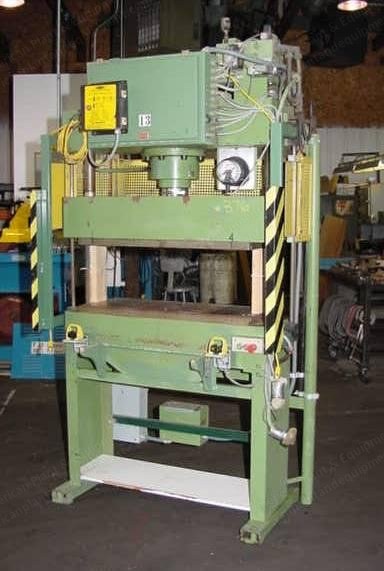

Description Overview Overall platen size: 1115 mm L to R x 350 mm F to B Distance between posts: 940 mm L to R Nominal platen size: 930 mm L to R x 350 mm F to B Two removable bolster plates with tee slots 25 mm in from front and back Daylight is 330 mm with plates, 406 mm without Approximate stroke: 200 mm Fully guided moving bolster with 200 mm long bushings Post diameter: 58 mm Double acting main ram: 150 mm bore, 90 mm rod 31750 kg at 2320 PSI Specifications Hydraulic power unit with 4 kW; 1800 RPM; 440/480 volt 60 Hz motor; double gear pump; Rexroth valves Adjustable pressure gauge Operator height: 1050 mm with plates; 1000 mm without Power unit overall dimensions: 760 mm W x 760 mm L x 1220 mm H Overall press dimensions: 915 mm F to B x 1525 mm L to R x 2540 mm tall Approximate weight: 5445 kg Condition Liftable counter weighted guards on back and sides interlocked with limit switch Palm button control Has wiring for light curtains, but curtains are missing
