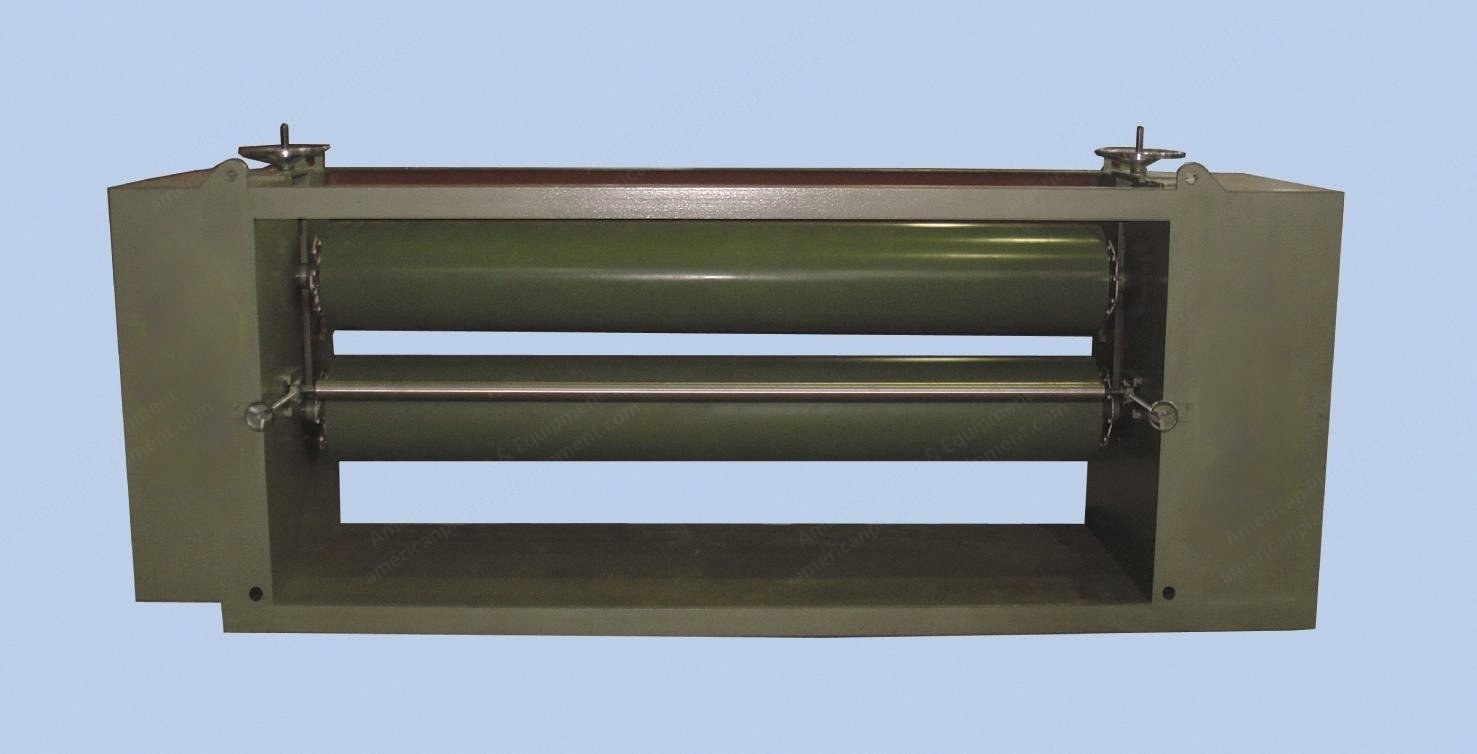

NovaStar, DG264, Non-Woven Calendar, 2-Roll, 2800mm Width, Hot Oil Electrical Heating (New)

NovaStar, DG264, Non-Woven Calendar, 2-Roll, 2800mm Width, Hot Oil Electrical Heating

Description

  1. Overview
    1. Two rolls arranged vertically with hot oil electrical heater.
    2. Main machine frame is welded rigid carbon steel board.
  2. Specifications
    1. Roll diameter: Ø400 mm, length: 2800 mm.
    2. Roll surface is accurate ground with hard plating.
    3. Surface temperature: 140-230 °C, adjustable.
    4. Line speed: 6-15 m/min.
    5. Heating power: 18 kW (each roll has nine groups of electric heating pipes of 2 kW for heating).
    6. Transmission power: 3 kW.
    7. Width: 2800 mm.
  3. Adjustment
    1. Lower roll is fixed; upper roll can be adjusted up and down by manual worm.
    2. Adjustable range: 0-100 mm.
  4. Transmission
    1. Main transmission with regulating motor and speed reduce transmission.
