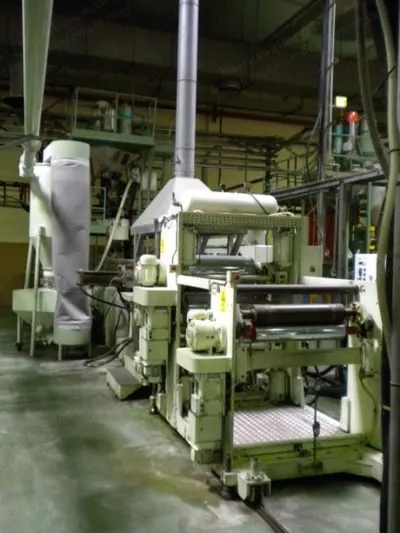

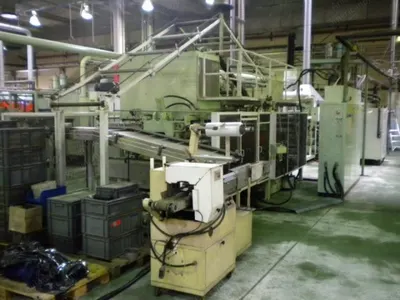

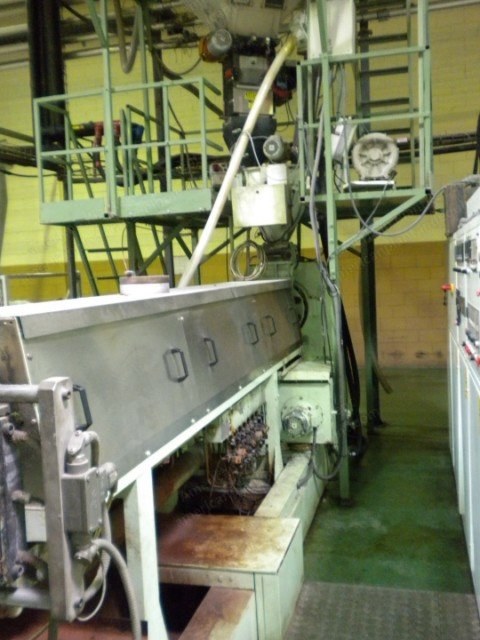

OMV, E35-2, 1991, In-Line Extrusion & Thermoforming Line, 540x335mm Forming Area, 120mm Extruder, 300HP

Description

Overview
1. Extrudes the sheet and thermoforms product then grinds the skeletal waste
2. Year 1991
3. Whole machine for sale, with the in-line single screw extruder
4. The machine has previously made polypropylene cups
5. The 18 cavities mould is included
6. The capacity is 115 million per year
Technical Data
1. Maximum forming area 540 x 335 mm
2. Minimum forming area 340 x 150 mm
3. Minimum forming depth -150 mm
4. Minimum forming depth +15 mm
5. Machine maximum revolutions 36 cycles/min

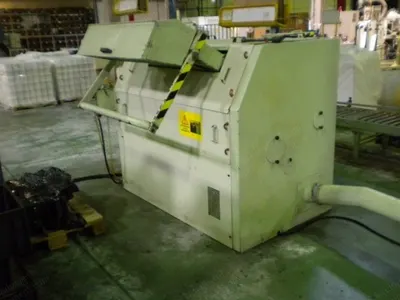

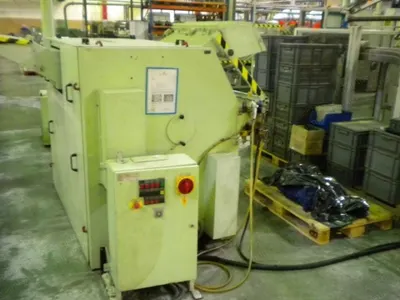

6. Stacker and skeletal waste crusher

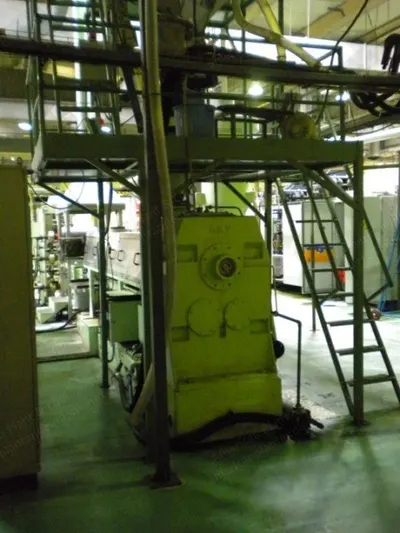

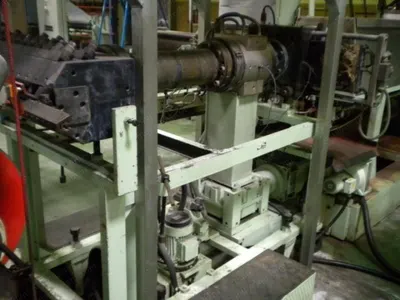

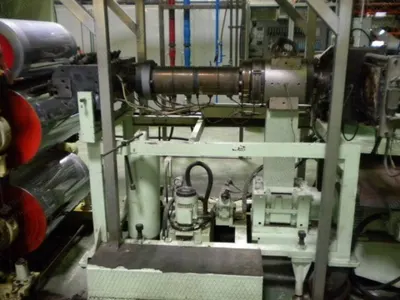

Main Extruder
1. Internal diameter of the cylinder extrusion: 120 mm
2. L / D ratio: 35/1
3. Cylinder cooling: by water, with cooling units separated
4. Motor: torque 300 hp standard version
5. Rpm: 1.200
6. Thread rpm: 138
7. Number of cylinder zone control: 7
8. Cooling unit of extruder cylinder
Main Characteristics
1. Temperature range 20-90 °C

Maximum Forming Depth	150 mm
Minimum Forming Area	340 x 150mm
