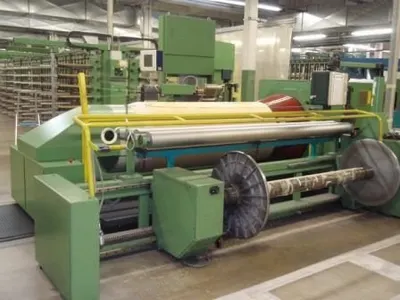

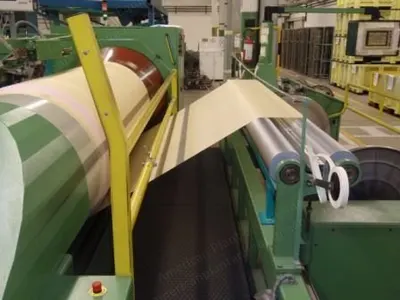

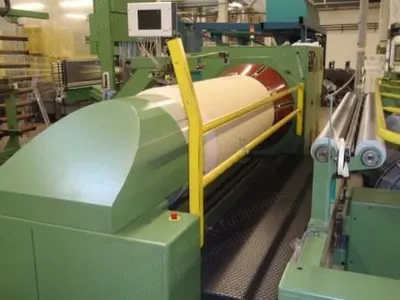

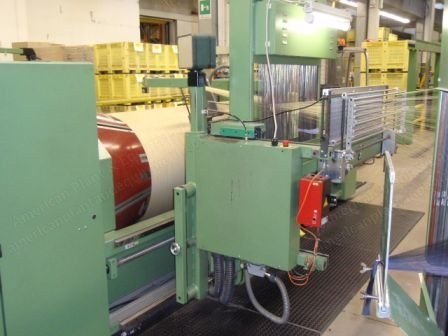

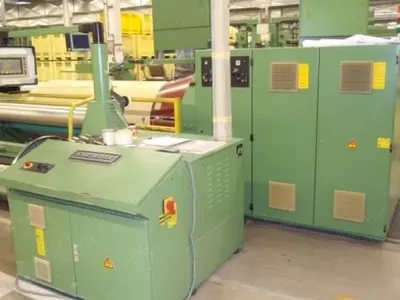

Karl Mayer, Economatic, 2000, Sectional Warper, 2250mm Working Width, 1000mm Max Flange Beam, Karl Mayer Creel, 800 Positions

Karl Mayer, Economatic, 2000, Sectional Warper, 2250mm Working Width, 1000mm Max Flange Beam, Karl Mayer Creel, 800 Positions

Description

  1. Overview
    1. Model: Gn-1-800-8-220-220-sdy-180-kfd-sp-m-a-fbj-sp-2-airjet
    2. Year: 2000
  2. Specifications
    1. Working width: 2250 mm
    2. Maximum flange beam: 1000 mm
    3. Circumference of the reel: 2590 mm
    4. Reel diameter: 825 mm
    5. Cone length: 465 mm
    6. Cone conicity: 15 °
    7. Gauge: 220 x 220 mm
    8. Voltage: 230/400 V - 50 Hz

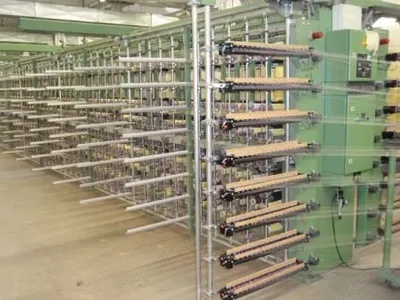

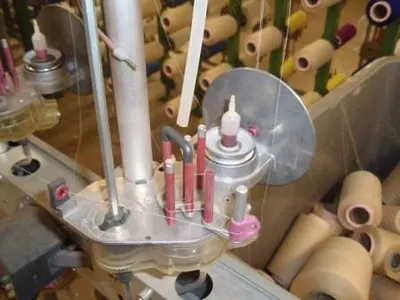

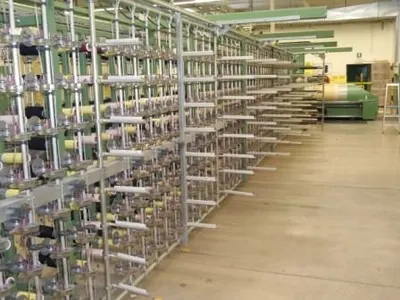

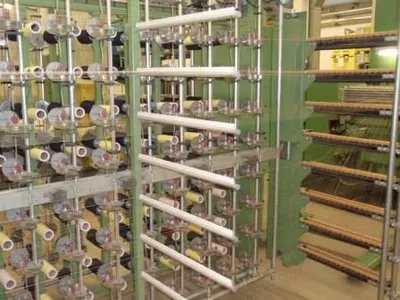

  3. Creel Details
    1. Creel brand: Karl Mayer
    2. 800 positions on the creel
    3. 8 level creel
    4. 2 sets of combs for working on one side of the creel (400 positions) while the other side is under creel change (400 positions)
