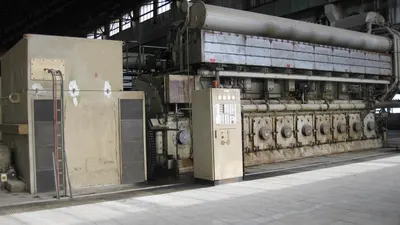

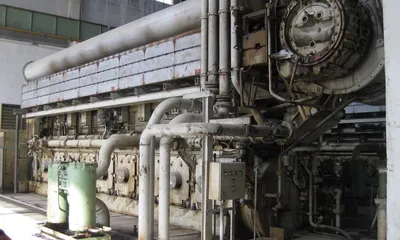

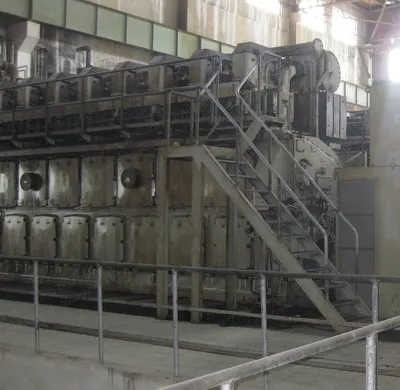

Description Overview Nine units of Wartsila 9TM620 engines, 50 Hz, 428 rpm, 12.75 MW each, for a total gross plant output at site of 114 MW ISO conditions. At factory conditions, the power plant is able to operate with fuel efficiency of 174 g/kWh ISO conditions. All units have been overhauled on every 10,000 running hours; total overhauled twice since new. The plant has been stop running since year 2008 due to high cost on diesel fuel. All accessory attached included. Engine Specifications Manufacturer: Wartsila Diesel Model: 9TM620 Frequency: 50 Hz Rated output: 12,750 kW each Rated speed: 428 rpm Fuel consumption: 174 g/kWh +/- 5% Lube oil consumption: 1.3 + 0.3 g/kWh Year of manufacture: 1993-1995 Service hours: average 25,000 hours Running hours: 22,000 since new Generator Specifications Type: HSG 1600 S14 Rated capacity: 15,537 kVA Power factor: 0.8 Frequency: 50 Hz Rated current: 815 A Rated voltage: 11 kV Greatest weight per piece: 55 tons Mechanical Systems Starting system - compressed air system Starting air compressor Control air compressor Air receiver module, service/starting Air bottle Air receiver automatic drains Charge air system Air filter Silencer Ducting Cooling water system Cooling tower - new Cooling water feeding pumps Raw water circulating pump Cylinder liner cooling water expansion tanks Cylinder liner cooling water expansion pumps Cylinder liner cooling water condenser Cylinder liner cooling water buffer tank Compensation tank Fuel Systems DFO system Day tank DFO daily tanks feeder pump and filter DFO transfer pump DFO feeding pump Fuel meter DFO booster DFO pre pressure pump DFO automatic duplex filter Fuel oil mixing tank HFO system Fuel meter HFO daily tanks feeding pump HFO feeding pump Fuel feeder/booster unit HFO pre-heater HFO buffer tank HFO separator unit HFO pressure circuit and circulation module Lubrication Oil System Circulation system pump Lube oil feeding pump Lube oil control valve Cylinder liner lube oil tank Lube oil primary filter Lube oil secondary filter Lube oil heater Lubrication oil service module / oil separator units Lubrication oil heat exchanger / lube oil cooler Lube oil automatic filter Leakage oil recovery tank Heat Recovery System Steam system Steam exhaust boiler Feed water tank Circulating pump boiler Mixing tank Exhaust gas system Silencer with supporting brackets Ducting Insulation Switchgear and Control System Engine auxiliaries MCC Common auxiliaries MCC Main switch gear Main bus bar Generator cubicle / engine control panel Measuring cubicle DC system DC board Battery charger panel and batteries
