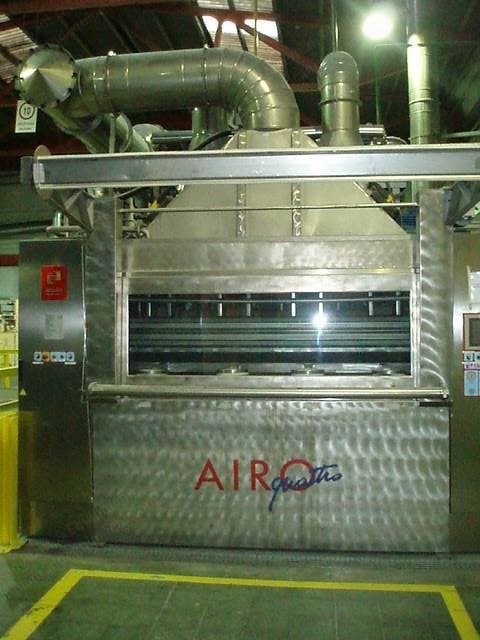

Biancalani, Air-O-Quattro, 2003, 4 Channels, Gas Heated, 380V

Biancalani, Air-O-Quattro, 2003, 4 Channels, Gas Heated, 380V

Description

  1. Overview
    1. Biancalani air-o-quattro
    2. Year 2003
    3. 4 channels
    4. Gas heating system
  2. Control And Automation
    1. Plc and touch screen computer
    2. Automatic cleaning system by cyclon with autocleaning water system
    3. Separation of the machine in three sections for better cleaning system
    4. Countermeter of the fabric in loading process
  3. Process Systems
    1. Hydraulic system with steam heated intercooler
    2. Direct steam injection system on bath
    3. Circulation and introduction pump
    4. Ph sensor
    5. Steam injection on rear beaters and on venturi pipes
  4. Specifications
    1. Fabrics from 80 to 550 gsm
    2. Speed 30-1000 cubic meters per hour
    3. Dryer temp 60°-170°
    4. Gas consumption 34.24-85.57 cubic meters per hour
    5. Electrical: 380v/50 hz
    6. Air pressure: 10 bar
    7. Gas pressure: 100-200 mbar
