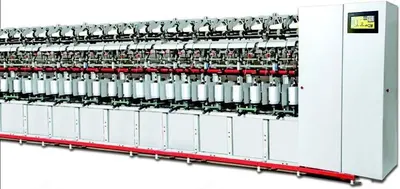

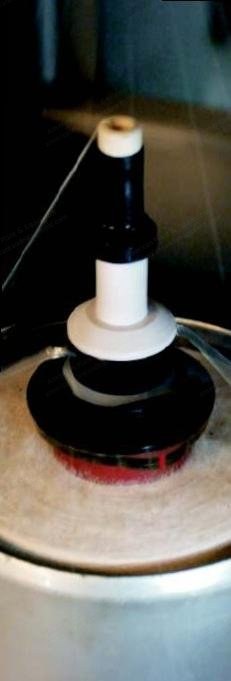

Description Overview Rigid compact construction for lowest possible vibrations Touch screen LCD for easy view and setup of parameters Electronic settings for TPI, RPM, take up and traverse systems Electronic settings for anti-patterning and edge-breaking Can produce soft package and round edge package Pre-programmed settings for package output as per requirements Plasma coated reverse disc and anodized aluminum pot for long-lasting, low-abrasion surfaces Entire yarn path equipped with ceramics guides to avoid excessive abrasion Low power consumption due to elimination of mechanical gear systems Low space requirements due to new narrow modular frame construction Up to 70 meters per minute and 15000 RPM Up to 90% time saving during parameter setups Technical Specifications Max number of spindles: 244 Number of spindles per section: 12 Number of sections: 20 Spindle pitch: 210 mm Spindle pot diameter: 123 mm Count range: 2/40 to 2/150 NE Twist range: 2.5 to 50 TPI Spindle speed (max): 15,000 RPM Spindle speed (effective): 30,000 RPM Spindle drive: 4 SP tape drive Stop motion: Auto (mechanical) Twist direction: S & Z (1-touch setting) Yarn tension: Capsule with flyer Traverse system: Direct electronic drive Take up drive: Direct electronic drive Power (total connected): 18 HP (13.50 kW) Feed Package Max length: 170 mm Max outer diameter: 115 mm Max inner diameter: 37/43 mm Weight: 500 gms Traverse length: 152 mm Conicity: 3°30' / 4°20 / cheese Takeup Package Traverse tube length: 152 mm Max diameter: 170 mm Max weight: 3.0 kg Conicity: 300 mm Dimensions Length: 27.0 meters Height: 1850 mm Width: 780 mm Yarn Material Fine/superfine spun yarn NXG Drive System Smart PDCS (power distribution and control system) Saves time, energy and power High uptime due to instant setting change Enables fine tuning of yarn setting Programmable package parameters Faster setting change enables small lot production Electronic Controls Programmable logic controller Touch screen LCD panel Electronic Parameter Settings TPI RPM Twist direction Soft edge formation Crossing angle section Anti-pattern Compact package formation (optional) Precision winding (optional) Optional Features Waxing device Creeping device Airthreading Balloon limited Tailend device Top tray (yarn storage)
