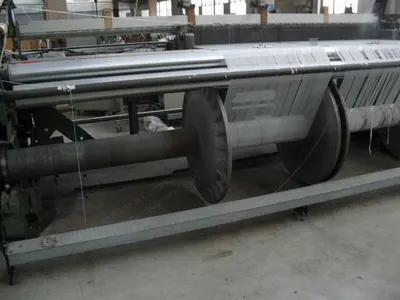

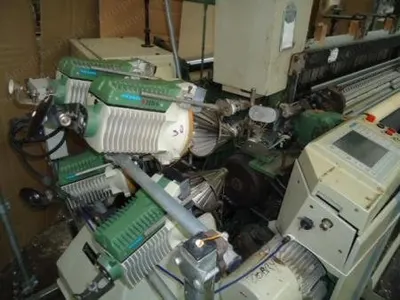

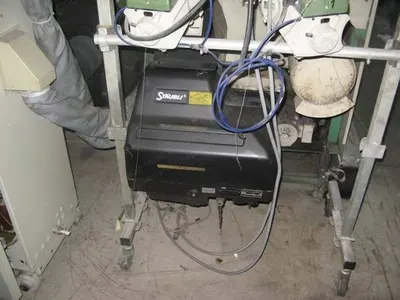

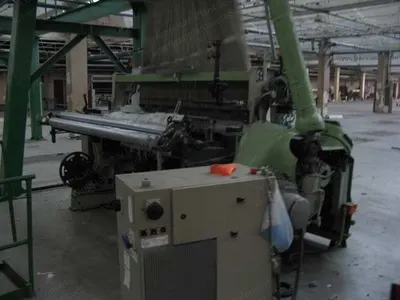

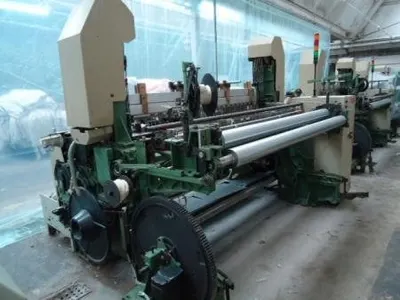

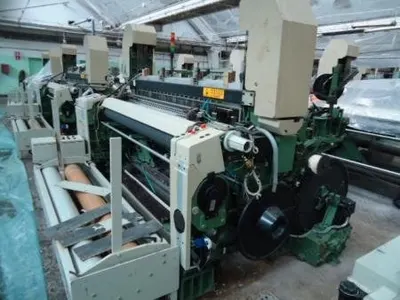

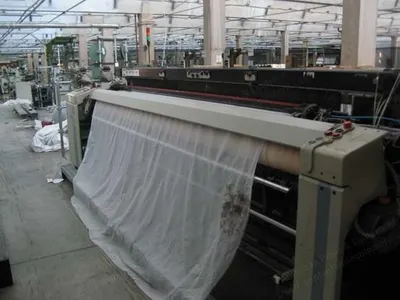

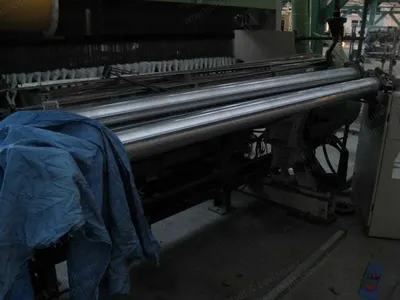

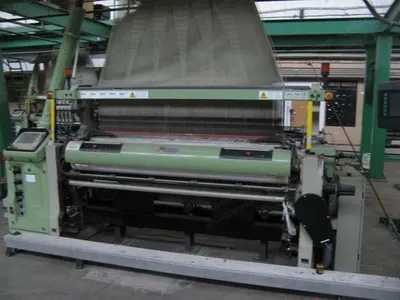

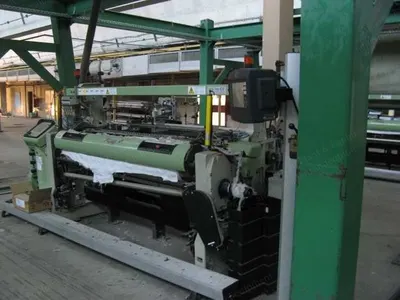

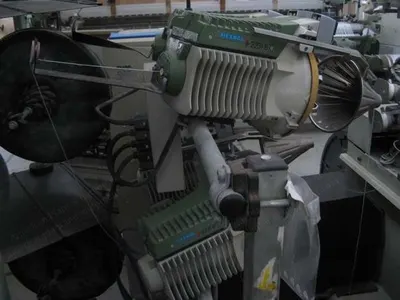

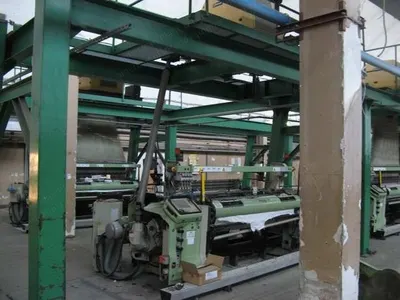

Description Picanol Omni Weaving Loom Year 2001 Width 3400 mm 4 colors Iro2231b or Iro2231, Staubli cam 6 cams per loom Harness frame / heddle wires 6 per loom / 5000 pcs per loom Warp beam split 1.5 per loom Warp stop motion / drop wires Grob / 5000 pcs per loom Cloth roller 2 pcs per loom Picanol Omni Weaving Loom Complete + 1 incomplete Picanol Omni weaving looms Year 1997-1998 Working width 1900 mm No of colors / type 2 / Iro2231b or Iro2231 Shedding motion cam, Staubli 1600 Shedding levers / cam 6 per loom / 6 per loom Harness frame / heddle wires 8 per loom / 4000 pcs per loom Warp beam 1.5 per loom Ø800 or Ø1000 Warp stop motion / drop wires Grobb Kfw1200 3 rails or Actex / 4000 pcs per loom 2 cloth rollers per loom Back rest single Picanol Omni Plus Looms Year 2001 Width 1900 mm No colors 2 Shedding motion cam Warp beam 1 pc per loom Condition incomplete Picanol Omni Looms Year 1996 Working width 1900 mm No of colors / 2 (only 1 machine has 4 colors) / Iro2231b or Iro1131 Shedding motion dobby, Staubli 3 x 2580c and 18 x 2580rs Shedding levers / shafts 16 per loom / 16 per loom, all installed Harness frame / heddle wires 12 per loom / 5000 pcs per loom Warp beam 1.5 per loom Warp stop motion / drop wires Grobb Kfw1200 or Kfw2400 4-6 rails / 5000 pcs per loom Cloth roller 2 pcs per loom Back rest single or double Picanol Gamma Looms Year 1998 Working width 3400 mm No of colors 8 Shedding motion jacquard, double Staubli Cx 880 No of hooks 2688 Warp beam split (1.5 set per loom) 2 cloth rollers per loom Back rest single Gantry + tie-up included Picanol Gammax F-4-J 1900 mm Year 2001 With Cx 880 jacquard machine, / 1244 hooks Picanol Gammax-6-J 1900 mm Year 2004 With jacquard Staubli Cx880 / 1244 hooks Dornier Htvj/8 Looms Year 1988 – 1995 Width 2800 mm 6 colors Jacquard, double or single Grosse or Bonas machines Yoc 1998-2004, no of hooks 1344 (5240 or 10520 warp threads on 1450 mm) Warp beam 1.5 pcs per loom Cloth roller 1.5 pcs per loom Gantry + tie-up included Dornier Htvj/8 Width 3600 mm With Staubli jacquard Cx860 for 2688 hooks Year 1991 With split beam diam 800 mm 2 sets of beams included 2 cloth rollers Machine is in good condition and still working Gantry Dornier Htvj/8 Width 3400 mm With single jacquard Staubli Cx860 for 1344 hooks Split beam diam 800 mm 2 sets of beams included 2 cloth rollers Year 1990 This machine is incomplete Gantry Dornier Atvf6/J Looms Year 2002 Width 3200 mm 6 colors Jacquard Staubli, terry Warp beam split (1.5 set per loom) Take up on plaiter Gantry + tie-up included Picanol Omni, 1900 Mm Ww, Cam, F2 Years: 1996/98 1.5 beams per loom / diam. 1000 mm Pbm – 8 nos. Take-up on machine – 5 pieces All looms could be equipped with 2 pcs of cloth rollers per machine but in this case they would come without pbm The cams are 1x1 6 shafts per machine and 6 cams Wsm is equipped with 6 rails 6,000 heald wires / droppers per loom Both: let off and take up are electronical Max speed is more than 700 rpm but since they were weaving cotton they worked at lower speed than 700 rpm so far Somet Mythos Looms Year 2004 Width 1900 mm No of colors 4 / Rojelectrotex Superelf Jacquard, Staubli Cx880, tie-up Staubli from 07/2003, 1344 hooks Warp beam 1.5 per loom Warp stop motion Actex, foreseen 6 rails 2 cloth rolls per loom Back rest double (one electronically controlled) Somet Alpha H-3400 Looms Year 2003+2004 Width 3400 mm 4 colors Roy Electrotex Chrono Hs, Staubli 2670b 2a2 dobby Shedding levers 16 Harness frame / heddle wires 16 / 10000 pcs per loom Warp beam split (1.5 set per loom) Ø800 Warp stop motion / drop wires Actex 8 rails / 10000 pcs 1 cloth roll Back rest double Somet Alpha H-3800 Looms Year 2004 Width 3800 mm No of colors 4 / Roy Electrotex Chrono Hs Shedding motion dobby, Staubli 2670b 2a2 Shedding levers 16 Harness frame / heddle wires 16 / 12000 pcs per loom Warp beam split (1.5 set per loom) Ø800 Warp stop motion / drop wires Actex 8 rails / 12000 pcs 2 cloth roll2 per loom Back rest double
