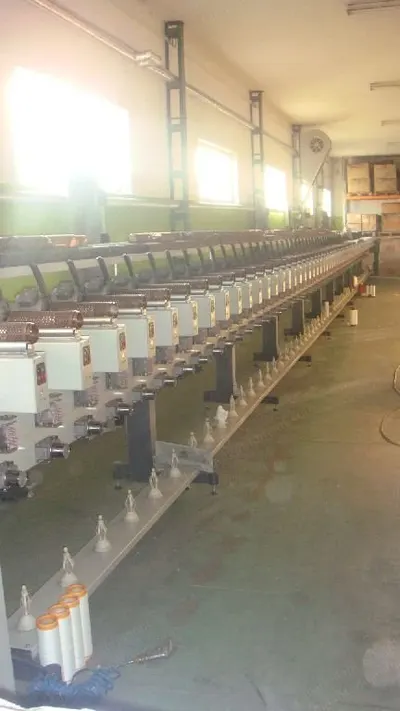

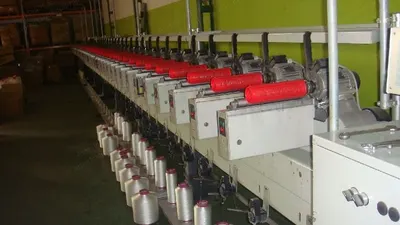

Description Overview Two units available: pw1-f (year 2007) and pw1-s (year 2005) Number of spindles: 60 (pw1-f) to wind yarn from cylindrical paper bobbin onto perforated bobbin Number of spindles: 42 (pw1-s) Number of spindles in one section: 6 Specifications Gauge: 360 mm Ring rail stroke: 25 – 250 mm Maximum diameter of package: 280 mm Weight of full package: maximum 10 kg Diameter of feeding package: maximum 280 mm Space for supply package: 500 mm Kind of yarn: filament yarn, smooth yarn, texturized yarn, elastic yarn, silk Range of counts: 10 – 10,000 dtex Kind of package: regular Bobbins: cylindrical 3o30’ Drive: individual for each spindle Maximum speed for pw1-f: 500 double strokes per minute Maximum speed for pw1-s: 400 double strokes per minute Speed for pw1-f: maximum 1,200 r.p.m. Speed for pw1-s: maximum 900 r.p.m. Installed power: approximately 20 w per spindle Use power: approximately 10 w per spindle
