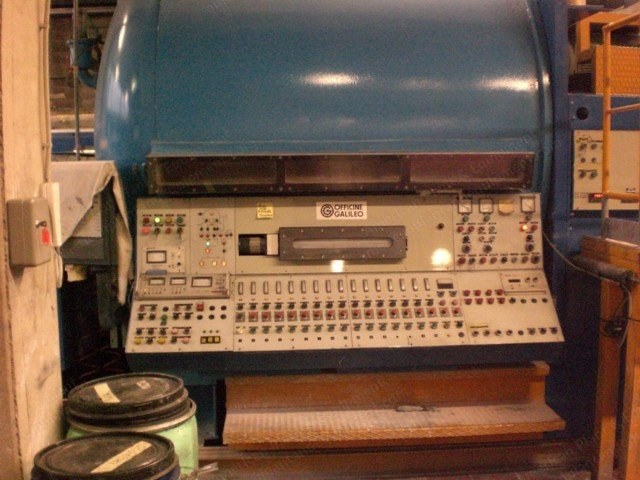

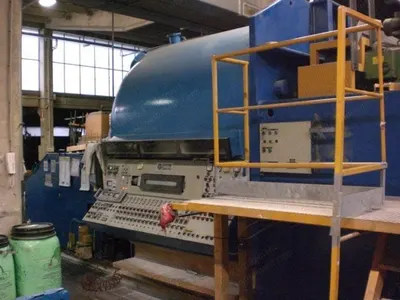

Galileo, C165 B100, 1987, 1650mm Web Width, 8 m/s Speed, 2 Vacuum Chambers

Galileo, C165 B100, 1987, 1650mm Web Width, 8 m/s Speed, 2 Vacuum Chambers

Description

  1. Overview
    1. Maker: Officine Galileo
    2. Model: C165 B100 cylindrical vacuum chamber
    3. Year: 1987
    4. Main application: Plastic film
  2. Specifications
    1. Thickness range: Film 20-500 microns
    2. Maximum reel diameter: 1000 mm on 200 mm mandrel
    3. Speed: 8 meters per second
    4. Vacuum chambers: 2
    5. Pumping down time: 12 minutes
    6. Vacuum level: 3 x 10-5
    7. Coating sources: 16
    8. Coating thickness range: 1-10 ohm/2
    9. Coating thickness at 8 meters per second: 2 ohm/2
    10. Winding tension: Adjustable
  3. Condition
    1. In running condition
