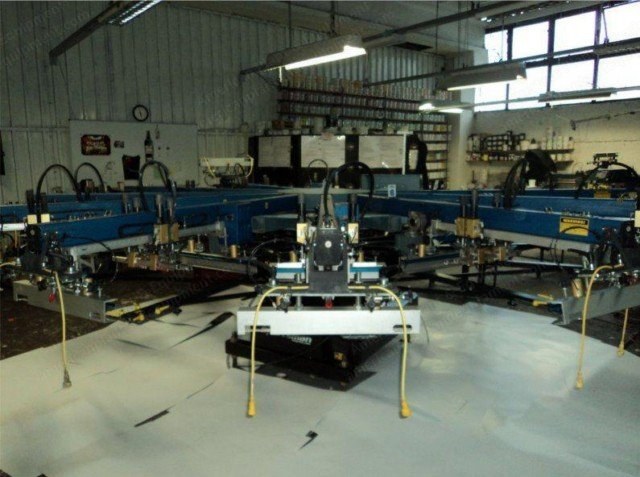

M&R, Sportsman E, 2005, 10 Colors, 510x560mm Max Print Area, Carousel Screen Printing Line

M&R, Sportsman E, 2005, 10 Colors, 510x560mm Max Print Area, Carousel Screen Printing Line

Description

  1. Overview
    1. M&R Sportsman E automatic carousel
    2. 10 colours
    3. Only 1,950,000 rounds (not printers)
    4. Year 2005
    5. Maximum printing area 510 mm x 560 mm
    6. Diameter 4790 mm
    7. Electrical headers drives
    8. Servo induction
    9. Revolver printing program
    10. Cw – ccw
  2. Included Accessories
    1. Reno hw flash dryer device for given header format 18" x 22"
    2. Dryer format 18" x 22"
    3. Tops (pallets): standard 16" x 22" (400 mm x 560 mm) – 12 pcs, small 10" x 22" (25.50 mm x 560 mm) – 12 pcs, big 22" x 27" (560 mm x 690 mm) – 12 pcs, triple for the sleeves 16" x 22" (400 mm x 560 mm) – 12 pcs
    4. Tri-lock – rapid expose and sieve registration system
  3. Condition
    1. Excellent condition
    2. All machines are complete
    3. All parts and accessories are original
    4. Machines were very seldom used
  4. Additional Equipment
    1. M&R Radicure D – year 2008, belt dimension 6100 mm (length) x 1520 mm (width), heating chamber 3050 mm (length) x 168 mm (width), electrical specifications: 400 v 3 phases 65 a i 38.8 kw
    2. M&R Cayenne D quartz flash – year 2005, cure unit 18" x 18" (450 mm x 450 mm), Cayenne D is M&R’s most sophisticated and versatile freestanding quartz flash system
    3. Newman roller selftightening screen printing frame – 23" x 31" (590 mm x 790 mm) – 90 psc, 25" x 35" (640 mm x 840 mm) – 11 psc, most frames with screens
