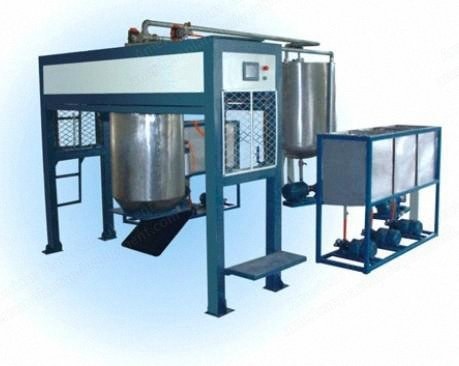

NovaStar, FG135, Automatic Foam Batching Machine, 8 Chemical Groups, 200kg Max Weight, 30kW (New)

NovaStar, FG135, Automatic Foam Batching Machine, 8 Chemical Groups, 200kg Max Weight, 30kW

Description

  1. Overview
    1. Automatic batching machine composed of 8 sets of chemical tanks, 8 sets of metering pumps, 1 mixing unit, 1 cleaning system, 2 sets of moulds, and 1 computerized controlling system
    2. All chemicals are filled by digital controls
    3. All producing processes including input, mixing, output and cleaning are automatic, controlled by PLC
    4. Automatic mixing
    5. Full PLC control and metering of chemical amount
    6. Fits 40-foot container
  2. Technical Specifications
    1. Output: 1 block per 10 minutes
    2. Chemical groups: 8
    3. Max weight: 200 kg
    4. Max speed: 1450 rpm
    5. Power: 30 kW
    6. Machine weight: 33,036 kg
    7. Mould size: as per customer
    8. Machine size: length 3400 mm x width 830 mm x height 2250 mm
  3. Production Details
    1. Produces 25 to 30 blocks per 8-hour shift
    2. Speed: 10 minutes per mould
    3. Foam density: 8-40 kg/m³
    4. Can save up to 50 groups of formula
  4. Pump Information
    1. MC and small chemical pumps are Japanese make
  5. Included Components
    1. One 200 L mixing tank
    2. One mixing head motor (15 kW)
    3. Max mixing speed is 3000 r/min
    4. PLC and HMI (human interface) from Taiwan
    5. Three moulds: one 2100 x 3000 mm rectangular mould and two round moulds
    6. One 150 kg MCL tank, made by 1.5 mm stainless steel, with Japanese pump and 0.75 kW motor
    7. Five small tanks of 150 kg, made by 1.5 mm stainless steel, with 3 to 11.5 kg/min Japanese pump and 0.75 kW motor
    8. Valve for material: one set for PPG, one set for TDI, six sets for small material
    9. One converter (VFD from Taiwan) to control the speed of mixing head
  6. Condition
    1. Machine size: length 3400 mm x width 830 mm x height 2250 mm
