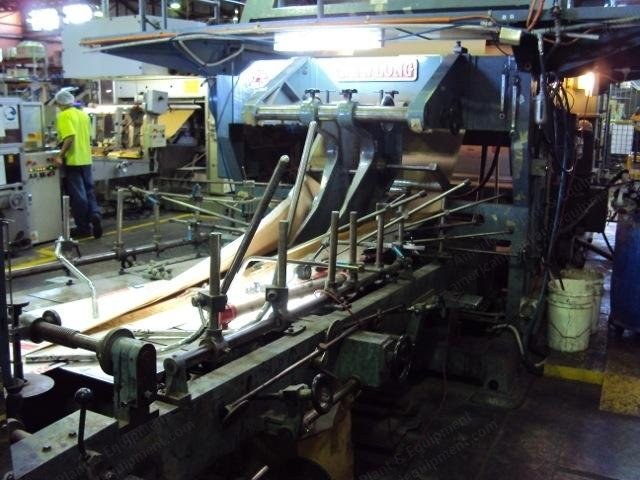

Newlong, Complete Cement Sack Line, 1985, Max 5 Ply, 2-Color Printer, Tuber and Bottomer

Newlong, Complete Cement Sack Line, 1985, Max 5 Ply, 2-Color Printer, Tuber and Bottomer

Description

  1. Overview
    1. Newlong tuber and bottomer for the manufacture of paper tubes for cement
    2. Year 1985
    3. Maximum 5 ply
  2. Tuber Specifications
    1. Maximum speed: 250 meters/min
    2. Tube cutting length: 20" to 50" (508 mm to 1270 mm)
    3. Tube width: 14.5" to 27" (369 mm to 685 mm)
    4. Number of ply maximum: 5
    5. Paper reel width: 55" (1400 mm)
    6. Paper reel diameter: 51" (1300 mm)
  3. Bottomer Specifications
    1. Tube length with minimum bottom width: 22" to 59" (560 mm to 1500 mm)
    2. Tube length with maximum bottom width: 34" to 64.5" (870 mm to 1640 mm)
    3. Tube width: 1.5" to 3" (35 mm to 70 mm)
    4. Bag length with flush cut: 17" to 53" (435 mm to 1370 mm)
    5. Maximum 160 bags/minute
  4. Printing and Valve Features
    1. 2 to color printer
    2. Valve patch pe or fringe valve
