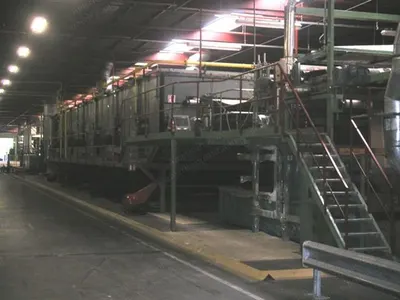

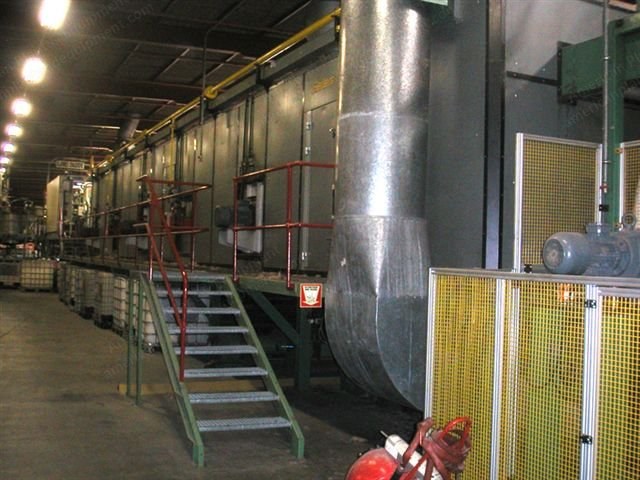

Backcoating Machine, 4500mm, 1992, 40m Length, Gas Burner Dryer, Steam Drum

Description

Overview
1. Backcoating machine
2. Year 1992
3. Speed: 6 min
4. Working width: 4500 mm
5. Total length: approx. 40 meters
6. Power: 380 V
Drying and Heating
1. Gas burner dryer on natural gas
2. Steam for steam drum
3. Dryer chamber hot air working on natural gas burners
4. Steam drum diameter: 2 meters
5. Cooling zone
Guiding and Application
1. Inlet J box with frequency steered speed
2. Full automatic guiding system
3. Face and back brushes with automatic dust evacuation
4. Steamer
5. Automatic frequency steered glue applicator
6. Membrane pumps for glue transport
Finishing and Packing
1. Compensators
2. Wall to wall carpet unit consists of automatic setup with digital display for the length off the rolls
3. Automatic cutting and packing with foil

Capacity	Speed: 6 m/min
Included	['Inlet J Box frequency steered speed', 'Full automatic guiding system', 'Face & back brushes automatic dust evacuation', 'Steamer', 'Automatic frequency steered glue applicator', 'Membrane pumps for glue transport', 'Cooling zone', 'Compensators', 'Wall to wall carpet unit with digital display', 'Automatic cutting and packing with foil']

Dimensions	Total length: approx. 40 meters, Working width: 4500mm
Steam Drum Diameter	2 m
