Cut to length and width at 25-90 feet/min (7 meters to 27 meters per minute)
Accuracy to 1/8” (3mm) for most fabrics
Simple and safe operation
Blade sharpeners
Slitter blade
Included

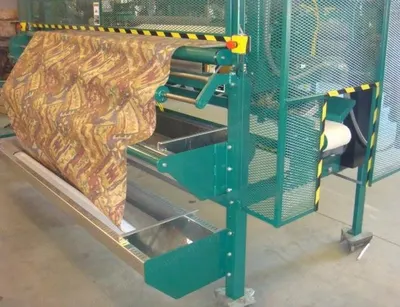

Infeed for 2 rolls of fabric trough type to accommodate 14 inch diameter fabric rolls
LH-RH trim slitters with blade sharpeners and 3 inch radius corner notching dies (RH-LH)
Cut to length through digital programmable counter
Speed 90 feet per minute feed rate with stops for cross cut and corner die notching

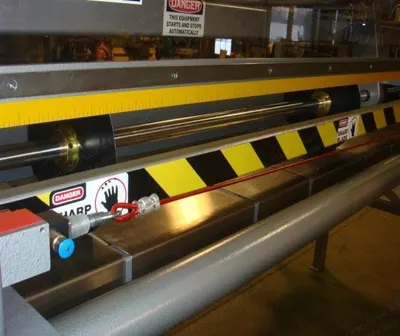

Safety guards - lexan
Power requirements 220 vac 3 ph 25 amp

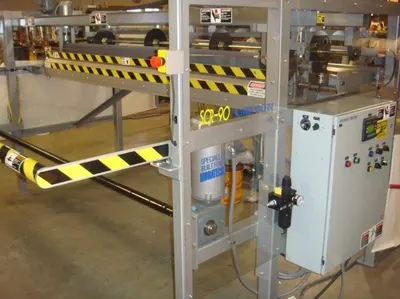

Allan Bradley programmable logic controller
Advantages
Simple to use - one operator to load fabric and remove finished product
Easy to change sizes - set the digital counters to change length and set the number of pieces desired; the machine will stop after completion
Space saver - eliminates long spreading table so production takes a fraction of the space
Options

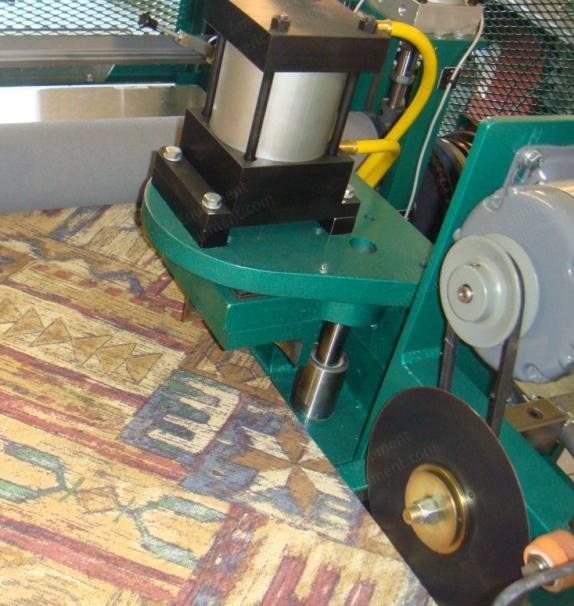

Corner notching - 3” (80mm) standard radius, other sizes available by request; complete with slitting knives to trim both edges of fabric prior to entering the dies
Infeed - 2-roll fabric holder, dancer bar for placing in line with a multi-needle quilter and infeed for lap-folded fabric and/or quilt
Rewinds - single rewinds for quilted mattress borders and dual rewinds for thin fabrics
Slitters - our gangslitter has 10 blades mounted to a common shaft; they are secured with a set screw for easy adjustment
Specifications
Standard voltage: 220, 3 phase, 60hz, 30 amps
Pneumatic requirement: 5cfm @ 90psi
Required area: 144”l x 72”w (3660mm x 1830mm)
Total weight: 3000lbs (1360kg)
Working height: 50” (1270mm) standard
