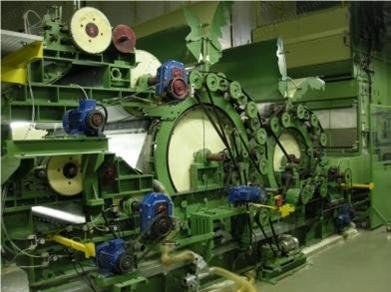

Complete Geosynthetic Production Line, 5500mm, 1000kg/h

Description

Overview
1. 3-component blending line, including blending bin
Bale Opener
1. Make: IKS, year: 2009
2. Working width: 3500 mm
Hopper Feeder
1. Make: ABA, year: 2004
2. Capacity: approx. 1500 kg/h
Chute Feed and Scale
1. Make: IKS, year: 2006
Carding Willow
1. Make: ABA, year: 2004
2. Working width: 1700 mm
Double Doffer Carding Machine
1. Make: FOR, year: 1997
2. Working width: 2500 mm
Cross Lapper
1. Type: CL2555.OC
2. Make: Technoplants, year: 2004
3. Max speed: 80 meters/min
Pre-Needle Loom
1. Type: S-type
2. Make: Technoplants, year: 2004
3. Working width: 5500 mm
4. Needling from bottom and top
5. 5000 needles/meter
6. Max 1200 rpm, stroke: 70 mm
7. Including feeding system
Finish Needle Loom
1. Type: OUG II
2. Make: Dilo, year: 2006
3. Working width: 5500 mm
4. Needling with four boards from bottom and top
5. 16,000 needles/meter
6. Max 1200 rpm, stroke: 60 mm
Accumulator, Winder and Scale
1. Working width: 5500 mm
2. Make: Technoplants, year: 2004
Edge Trim Opener
1. Make: Temafa

Additional Specifications

HS code	8449.00

Specifications

Capacity

1000 kg/h

Included

['IKS Blending Line (2009)', 'ABA Bale Opener 3500mm (2004)', 'ABA Hopper Feeder (2004)', 'IKS Chute Feed and Scale (2006)', 'ABA Carding Willow 1700mm (2004)', 'FOR Double Doffer Carding Machine 2500mm (1997)', 'Technoplants Cross Lapper CL2555.OC (2004)', 'Technoplants Pre-Needle Loom 5500mm (2004)', 'Dilo Finish Needle Loom OUG II 5500mm (2006)', 'Technoplants Accumulator, Winder & Scale 5500mm (2004)', 'Temafa Edge Trim Opener']

Dimensions

Working width	5,500 mm
