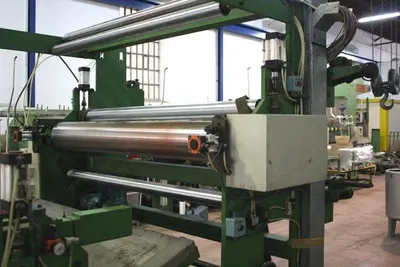

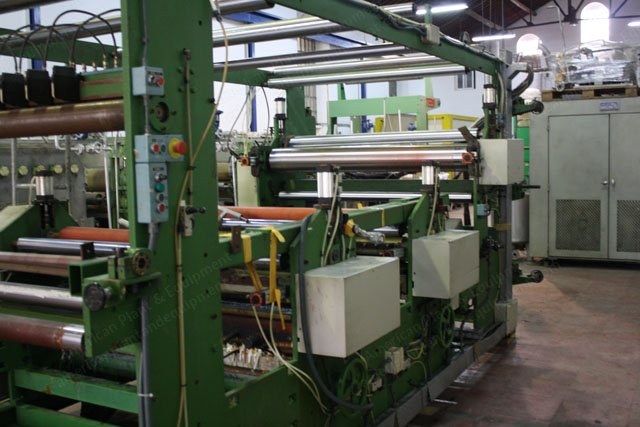

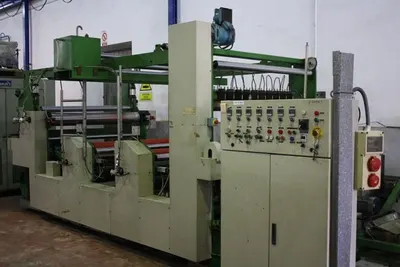

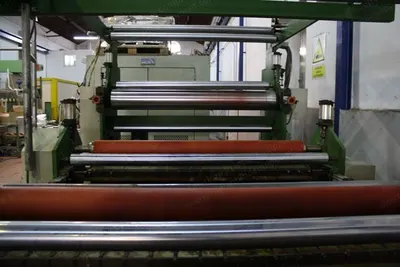

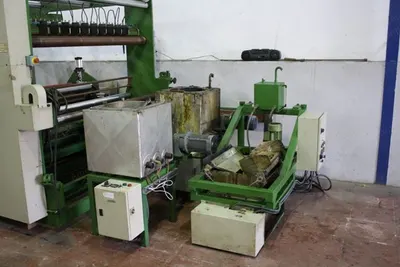

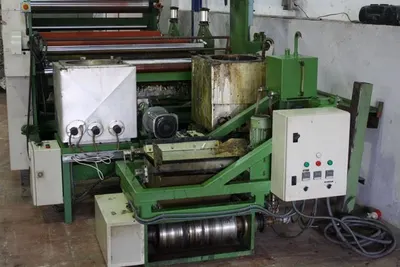

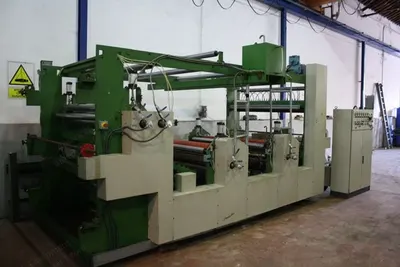

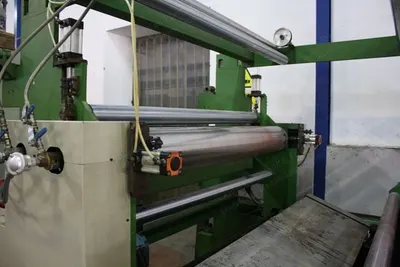

Llorens Planas, Hot Melt Machine, 1996, 1500mm Working Width, 2 Foulard Impregnation Systems, Oil Heated

Llorens Planas, Hot Melt Machine, 1996, 1500mm Working Width, 2 Foulard Impregnation Systems, Oil Heated

Description

  1. Overview
    1. Maker: Llorens Planas
    2. Year: 1996
    3. Working width: 1500 mm
    4. Composed by: entrance for silicone paper / tissue / paper
    5. Was running Aironfix for adhesive plastic in rolls
  2. Impregnation Systems
    1. Two systems of impregnation by foulard with lower cylinder metallic heated, with two lower boxes of impregnation heated
    2. Pipes feeding from the boxes to the foulards heated by electric resistance
  3. Union and Cutting Unit
    1. Second tissue / paper input, system of union by calender with cylinder metal heated and pneumatic press
    2. Unit with several cuts of width-adjustable pressure (currently 10) and roller cylinders
  4. Resin and Accumulation
    1. Unit for precast resin
    2. Entrance with 2 cylinders heated that feeds two accumulation heated boxes, one for each foulard with dosage system by bomb each
  5. Heating System
    1. All heated elements are for oil heat through electrical resistance
