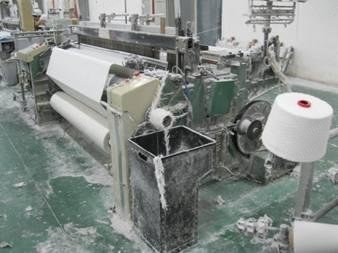

Picanol, Delta-X, 1997, 1900mm Working Width, 4 Colors, Staubli 2670 Dobby

Picanol, Delta-X, 1997, 1900mm Working Width, 4 Colors, Staubli 2670 Dobby

Description

  1. Overview
    1. Type: Picanol #2231
    2. Year: 1997 (installed 1998)
    3. Working width: 1900 mm
    4. Colors: 4
    5. Pre-winders: 3 pcs/set
  2. Specifications
    1. Shedding: E-dobby positive
    2. Dobby maker/type: Staubli #2670
    3. Drive lever: max. 16, equipped 16
    4. Hooks for hf: max. 16, equipped over 14
    5. Hf: 10
    6. Wrap stop bars: max. 6, equipped 5
    7. Speed: 650 to 700 rpm
    8. Warp beam diameter: 800 mm
    9. Warp beams: 1.5
    10. Take-up: in the machine
    11. Cloth roller: 1.5
    12. Dropper, heald: 4,000
    13. Reeds: 1
    14. Voltage/frequency: 380/50
  3. Items Woven
    1. Shirting, sheeting, various cotton fabrics
  4. Quantity
    1. 20
