Bonner, Y-65, Spring Coiler, 65 Springs/Min, 1.9 to 2.4mm Wire Diameter, 2150kg

Bonner, Y-65, Spring Coiler, 65 Springs/Min, 1.9 to 2.4mm Wire Diameter, 2150kg

Description

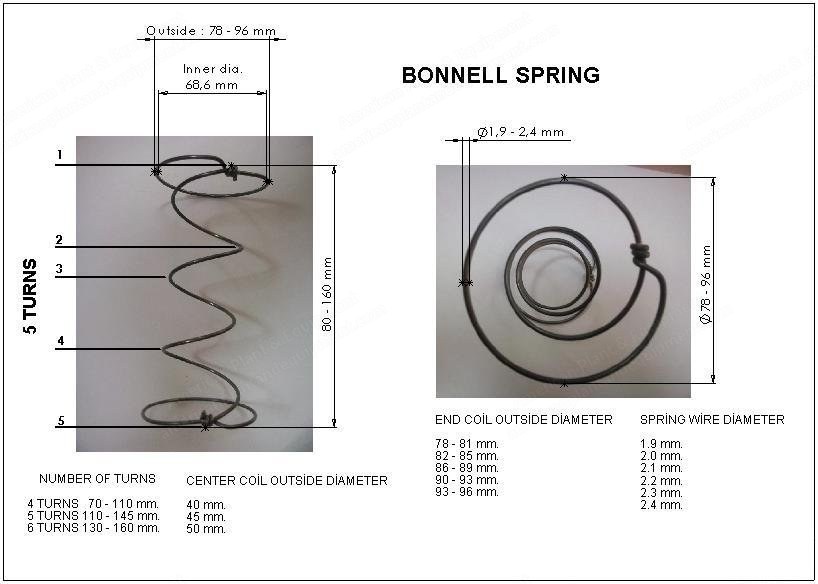

  1. Overview
    1. Model: Y-65
    2. Type of spring: Bonnell
    3. Material: Spring wire
    4. Spring wire diameter: 1.9 to 2.4 mm
    5. Number of turns: 5 turns standard (optional 4 or 6); 4 coils for 70 mm to 110 mm, 5 coils for 110 mm to 140 mm, 6 coils for 130 mm to 160 mm
    6. Spring height: 80 to 170 mm
    7. Standard machine produce spring dimensions: 78 to 96 mm (standard 84 to 87 mm)
    8. Spring middle diameter: 40 mm to 50 mm
    9. Performance: 65 springs per minute
  2. Specifications
    1. Power requirements: 380/220 V
    2. Frequency: 50 Hz / 60 Hz
    3. Machine weight: 2,150 kg
    4. Spring steel feature: 670 to 1910 n/mm²
  3. Spring Basket System
    1. Capacity of machine: 650 kg
    2. Raw material internal diameter: 420 to 450 mm
    3. Raw material height: 800 mm
    4. External diameter: 800 mm
    5. 380 V, 50 Hz
  4. Features
    1. Provide the required spare parts
    2. High quality mechanical system
    3. Beginning serial production only after 3 days training
    4. Working fully automatic and as manual (step by step)
    5. PLC control system
    6. Free of charge spare parts
