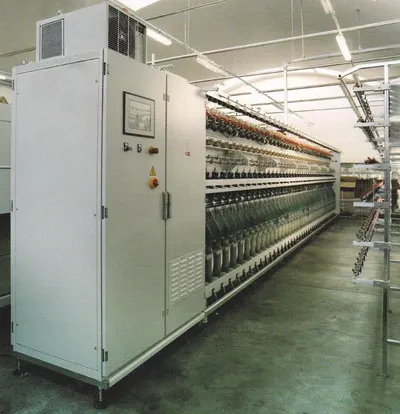

Single working front composed of 42 positions (the modular configurations and the number of working positions are decided by the customer according to production needs)
Control head consisting of an electronic control section and the motorization control of various transmission units

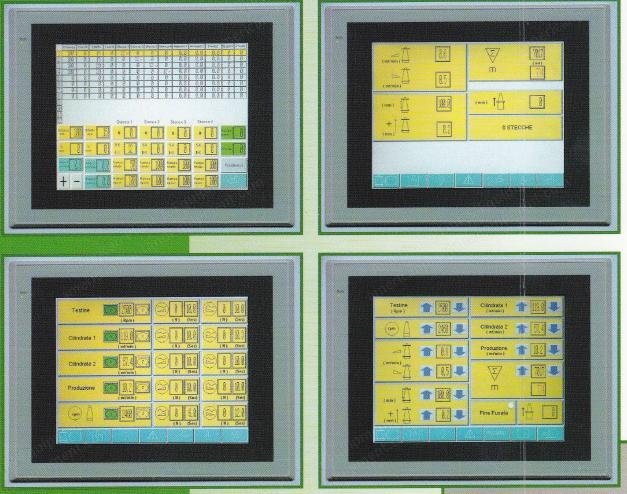

The controls simultaneously checked by a computerized system, with simplified programming
Programmable automatic stop and memorization of the working program
Rotating shafts with 4 thread guide

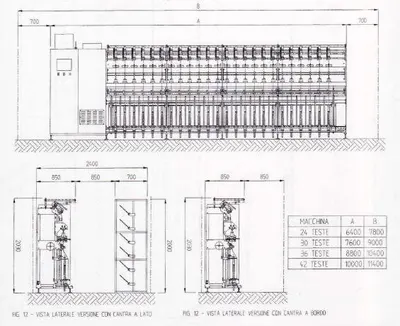

Machine body consisting of 6 working modules set up on single work front with 200 mm gauge
Feed creel placed on the front side of the machine
Shafts controlled by tangential belt transmission
Technical Specifications
Maximum speed: 3500 revolutions/min
Production capacity with adjustable speed up to 50 meters/min
Recovery yarn on spindles type HZ55, speed adjustable up to 5000 revolutions/min, height of tubes 450 mm, lubricated rings diameter 127, 17.4 mm thickness
Feeding of yarns by two cylinders with independent driven and pressing drums motor driven
Speed up to 150 meters/min
Yarn stop by electrical brake
Pneumatic device to disconnect automatically each single head
Electric power supply: 380 V/3 phase/50 Hz or as per customer
Installed capacity: 25.2 kW
