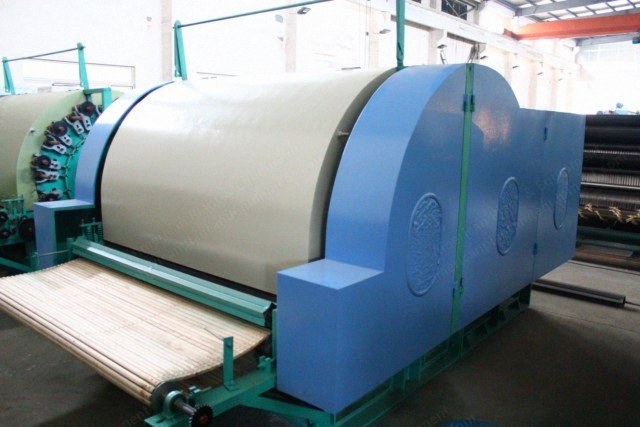

NovaStar, CR123, Carding Machine, 2500mm Working Width, Single Cylinder, Double Doffer (New)

NovaStar, CR123, Carding Machine, 2500mm Working Width, Single Cylinder, Double Doffer

Description

  1. Overview
    1. Working width: 2500mm
    2. Output: 30 to 260 kg/hour
    3. Outlet speed: ≤45 meters/min
    4. Total power: 23kW
  2. Specifications
    1. Cylinder diameter: Φ1230mm
    2. Cylinder diameter-runout: ≤0.04mm
    3. Cylinder power: 18.5kW, inverter controlled speed
    4. Brand for high-speed bearings: Wuxi Torrington
    5. Needle-cloth brand: Junlun, Haimen
    6. 5 high-speed carding zones
    7. Feed roller is equipped with metal-free guard unit and controlled by inverter
  3. Construction
    1. Machine frame is made of high quality castings
    2. The cylinder and doffers are processed with high temperature
  4. Dimensions and Weight
    1. Machine dimensions: 3800 x 2800 x 1800mm
    2. Machine weight: approx. 8000kg
