Dornier, Weaving Mill, 2000mm to 2100mm Working Width, Rapier and Air-Jet Looms

Name: Dornier, Weaving Mill, 2000mm to 2100mm Working Width, Rapier and Air-Jet Looms
Brand: Dornier
SKU: G-8742

‹ Go Back Next Product ›

Description

Overview
1. All machines available for individual sale

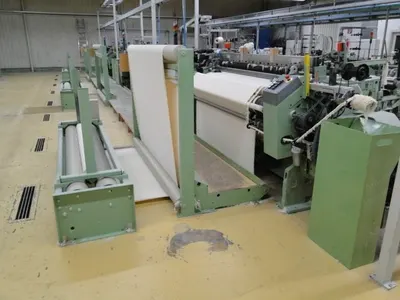

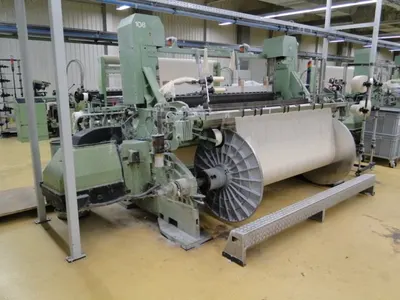

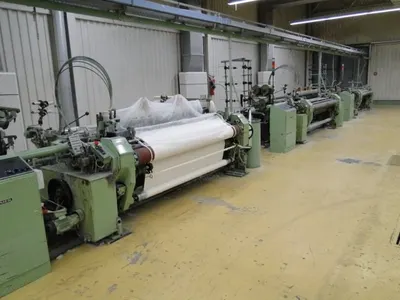

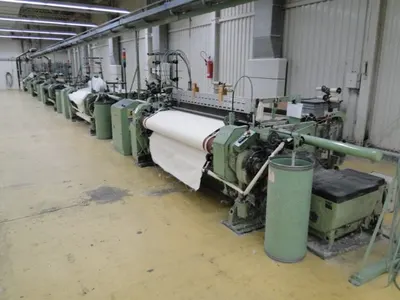

Dornier Rapier Weaving Looms
1. Model: HTV 6 SD
2. Year: 1989
3. Working width: 2000 mm
4. Mechanical color selection for 6 colors
5. Electronic dobby Stäubli type 2667
6. 20 shafts, 16 installed
7. Mechanic warp let-off and fabric take-up
8. Each loom equipped with: 4 weft accumulators Roj at 1200
9. Electronic weft end-break detection Eltex
10. 2 warp beams Ø 800 mm
11. 2 cloth rollers
12. 10 heddle frames incl. heddles
13. 6 warp stopmotion bars incl. droppers
14. Leno selvedge
15. Quantity: 13

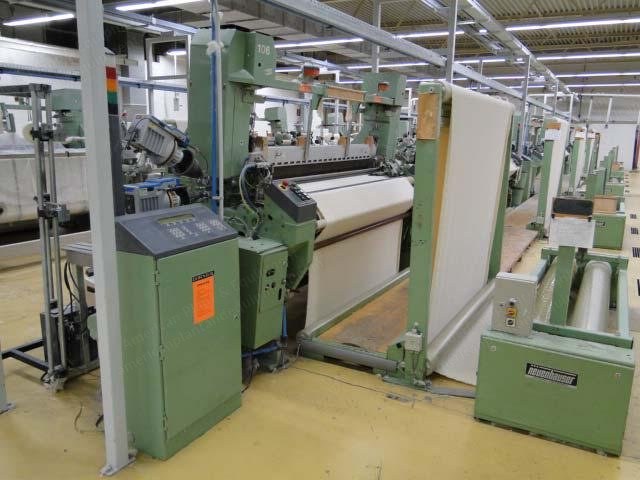

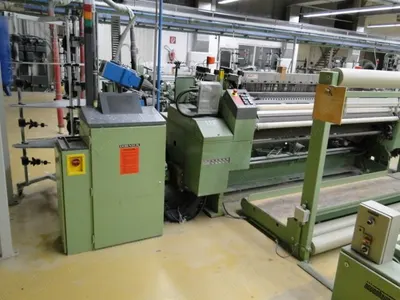

Dornier Air-Jet Weaving Looms
1. Model: LWV 2/S
2. Working width: 2100 mm
3. 6 looms are year 1996, 4 looms are year 1998
4. 1000 ppm
5. 2 colors
6. Electronic dobby Stäubli type 2580 RC
7. 10 shafts
8. Electronic warp let-off EWL and fabric take-up ECT
9. Off-loom batching motion Neuhauser
10. Each loom equipped with: 2 weft accumulators Roj ELF
11. Electronic weft end-break detection
12. 1.5 warp beam Ø 1000 mm
13. 2 cloth rollers
14. 10 heddle frames, including heddles
15. Total quantity: 10
Air-Jet Weaving Machines Dornier
1. Model: AWV 4/E
2. Working width: 2100 mm
3. Year: 2001
4. 4 colors
5. Electronic cam box Stäubli type 2871/2
6. 10 shafts
7. Electronic warp let-off EWL, fabric take-up ECT
8. Off-loom batching motion Neuhauser type DW 3218L
9. Each loom equipped with: 4 weft accumulators Roj ELF
10. Electronic weft end-break detection
11. 1.5 warp beam Ø 1000 mm
12. 2 cloth rollers
13. 10 heddle frames incl. heddles
14. 6 warp stopmotion bars incl. droppers
15. AFR/ASP
16. Leno selvedge
17. Quantity: 3
Schlafhorst Rest Bobbin Rewinding Machine
1. Year: 1983
2. Autoconer GKU-X
3. 20 heads 4º 20’
4. 2 knotting devices
5. Automatic round magazine
6. Quantity: 1
Schlafhorst Rest Bobbin Rewinding Machine
1. Year: 1988
2. Autoconer GKU-PX
3. 50 heads 4º 20’
4. 5 slicers
5. Automatic Y magazine
6. Quantity: 1
Genkinger Warp Beam Transport Cart
1. Year: 1996
2. Model: EE-KHUR 15/10 GEV
3. Max load: 1500 kg
4. Incl. battery charger
5. Quantity: 1

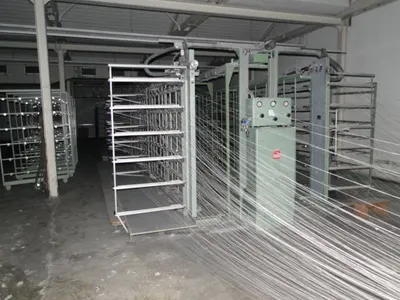

Hacoba Sectional Warper
1. Year: 1990
2. Type: USK T 1000
3. For beams width 2200 mm
4. Beam Ø 1000 mm
5. Waxing unit
6. Incl. creel type E 2-H 585
7. 560 ends / 7 levels
8. Gauge 280 mm
9. Bobbin carts
10. Quantity: 1
Sucker-Muller-Hacoba Direct Warping Machine
1. Year: 1996
2. Type: NZB-D 800
3. Max. working width: 1829 mm
4. Variable speed control
5. Beam Ø 800 mm
6. Incl. 1 creel Hacoba 1992 type G2-H FB, 624 ends
7. Gauge 330 mm
8. 5 levels
9. Electronic end break detection
10. Brake system for fine counts
11. Bobbin carts
12. Quantity: 1
Sucker-Muller Sizing Machine
1. Year: 1992
2. Creel for 24 beams Ø 800 mm, width 1800 mm, pneumatic break/tensioning
3. Pre-drying section for yarns from dyeing beams: 4 steel drums incl. single beam unwinding device with tensioner
4. 2 size boxes type SE-R 40, full automatic temp./level control
5. 4+7 drying drums, teflonized, incl. tensioning device
6. Beaming machine type WR-ML, beam width max. 2600 mm, diam. 1000 mm
7. Moisture control Mahlo Texometer RMS-7
8. Control panel
9. Quantity: 1
Hergeth Sample Warping Machine
1. Year: 1985
2. Max. warping width: 1800 mm
3. Warping length: 12000 mm
4. Creel
5. Quantity: 1
