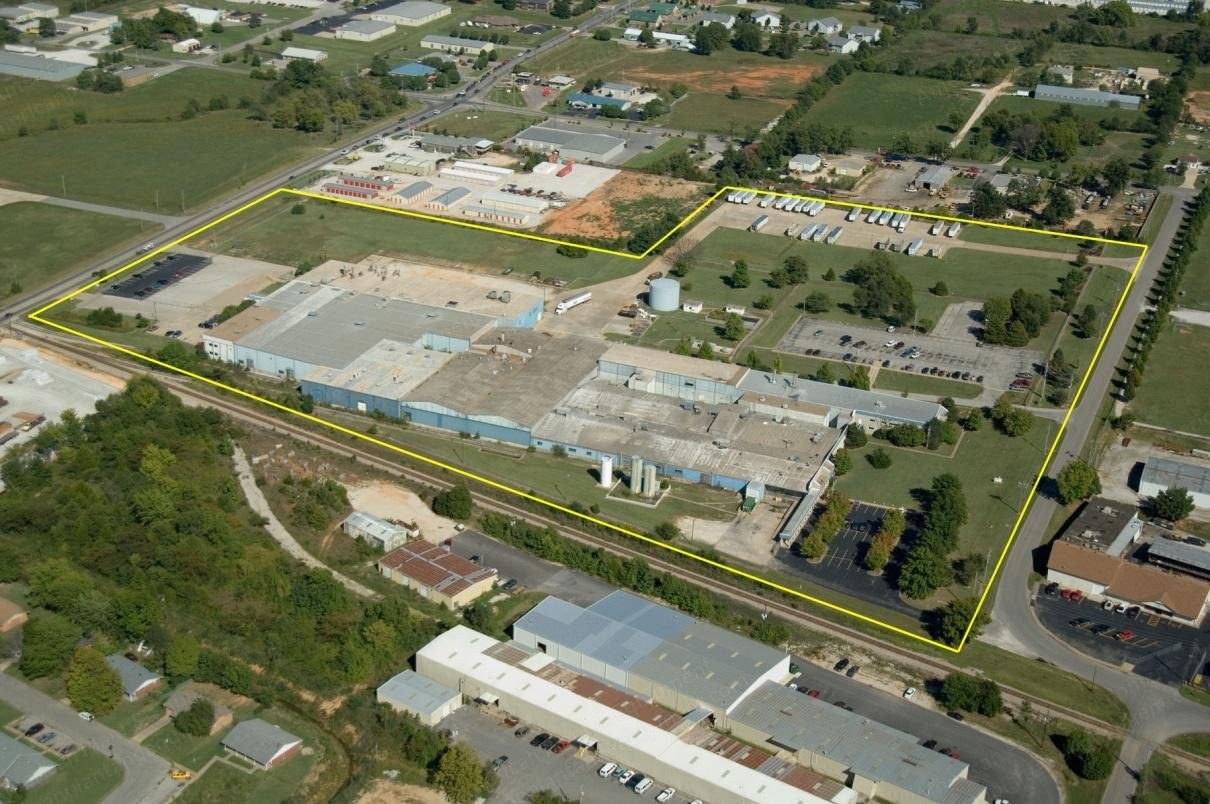

Hollingsworth, Fleissner, Spinnbau, Nonwoven Plant, 3.2 Meters Wide, 600 lbs/hr

Hollingsworth, Fleissner, Spinnbau, Nonwoven Plant, 3.2 Meters Wide, 600 lbs/hr

Description

  1. Spun Lace Line - 3 Meters Wide - 600 Lbs P/Hr Production

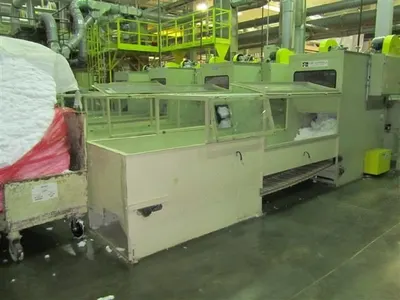

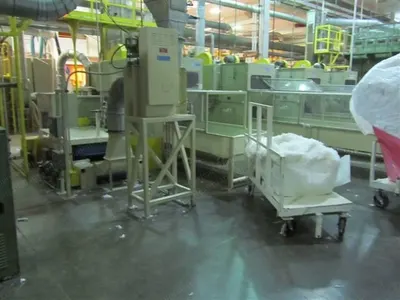

    1. Top web blend line consisting of: (3) Fiber Controls hoppers, model n/a, year 1982, with 12” extended aprons, and (1) CMC pre-feeder with 6’ extended apron, no weigh pans
    2. 32” fiber transport conveyor with transfer conveyor and Goring Kerr metal detector

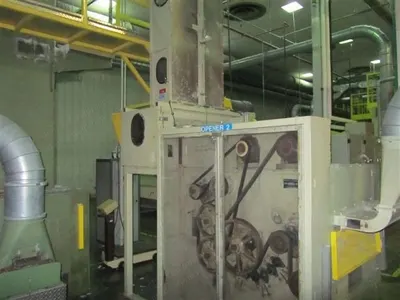

    3. (2) CMC 36” ROB openers, model n/a, year 1980, with blow in hood and metering roll, TV425 inlet fan and TV425 exit fan
    4. Truetzschler Multicel mixer, model MPM-10, year 1990
    5. Bottom web blend line consisting of: (4) Fiber Controls hoppers, model n/a, year 1982, (3) with 2’ extended aprons and (1) with 6’ extended apron, no weigh pans
    6. 32” fiber transport conveyor with transfer conveyor and Goring Kerr metal detector
    7. (3) CMC 36” ROB openers with blow in hood and metering roll, TV425 inlet fan and TV425 exit fan
    8. Truetzschler Multicel mixer, model MPM-10, year 1990

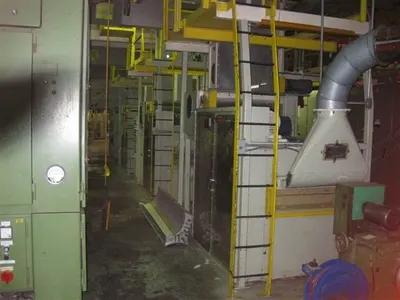

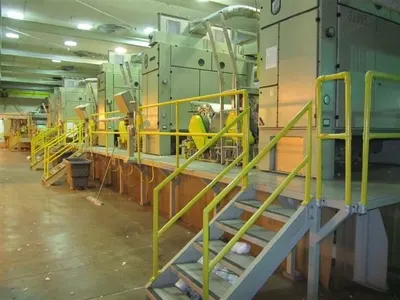

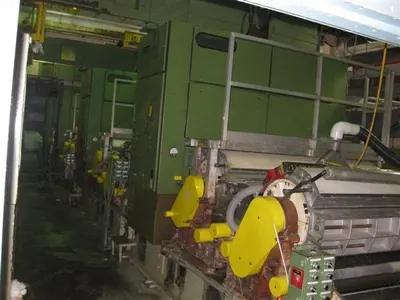

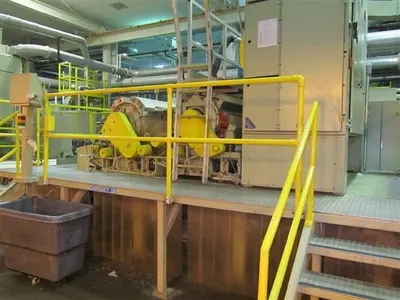

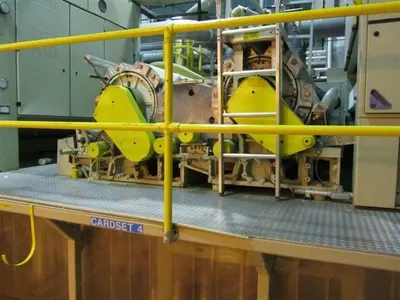

    9. (3) Hollingsworth 2.2 meter tandem Mastercards, model n/a, year 1993, with breaker and finisher card; fiber feed from Truetzschler chute, model 536 FBK-2250, year 1993, (top web - 3A, 3 & 4) with undercard transfer floor conveyor
    10. (2) Hollingsworth 2.2 meter tandem Mastercards, model n/a, year 1993, with breaker and finisher card; fiber feed from Truetzschler chute, model 536 FBK-2250, year 1993, (bottom web - 1 & 2) with undercard transfer floor conveyor

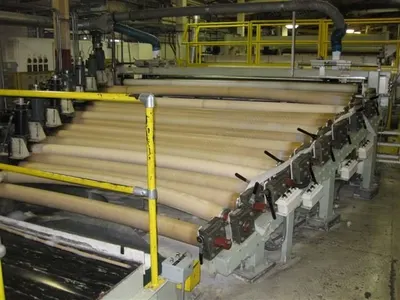

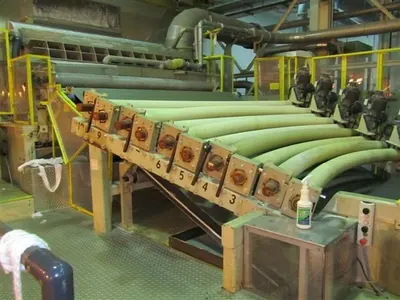

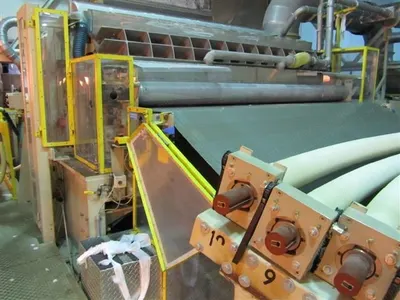

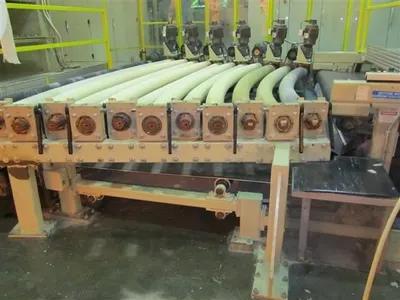

    11. (2) Sets of Mount Hope web spreader section, (11) bow rolls per set

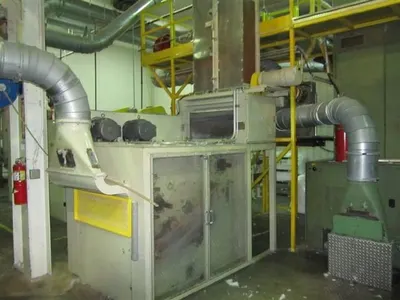

    12. Spinnbau 3.2 meter turbo card (randomizer), 3.2 meter wide, with entering belt, main cylinder and air doff and discharge belt

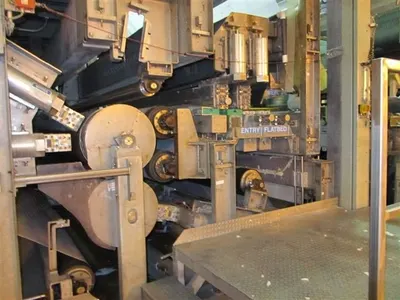

    13. Fleissner 3.2 meter hydro fiber entangling line, model n/a, year 1999, consisting of:
      1. Flat bed wet-out section
      2. First pattern roll set (2) with two manifolds

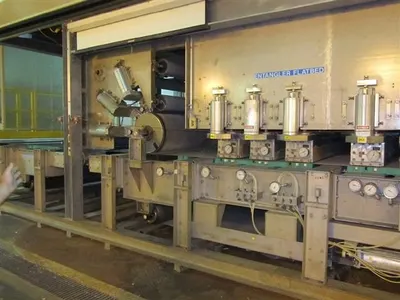

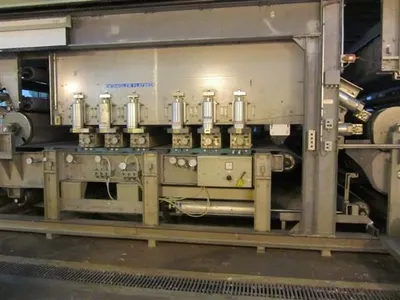

      3. Entangler flat bed with six manifolds
      4. Pattern roll with three manifolds

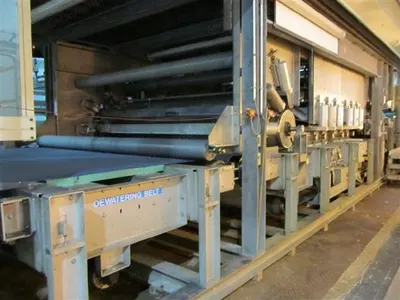

      5. Dewatering belt (suction)

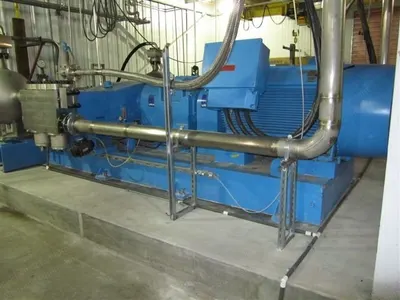

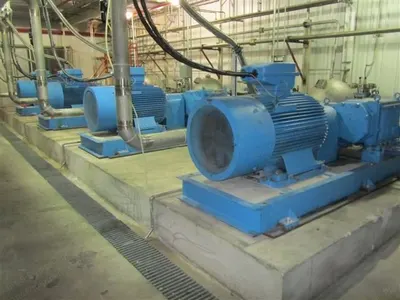

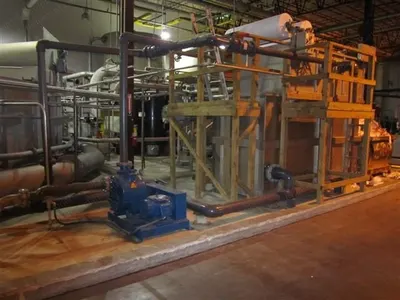

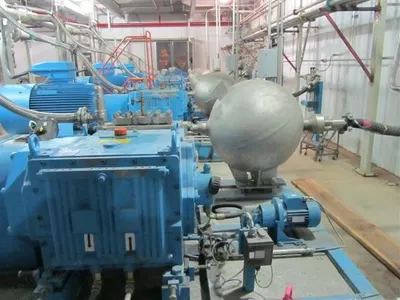

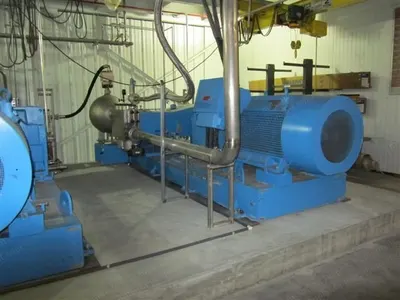

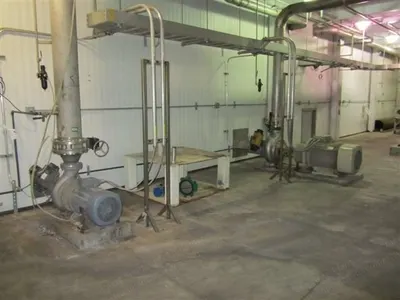

      6. High pressure pumps (1100 HP & 200 HP)

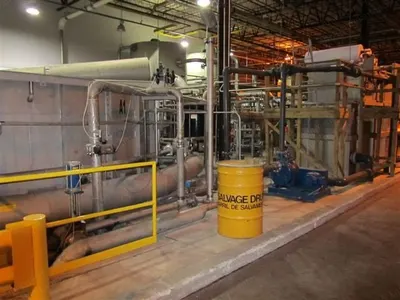

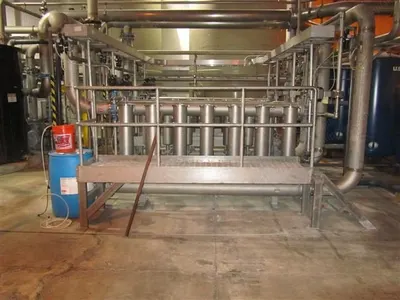

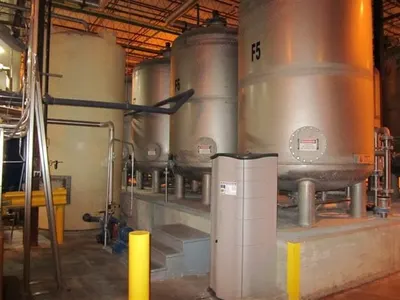

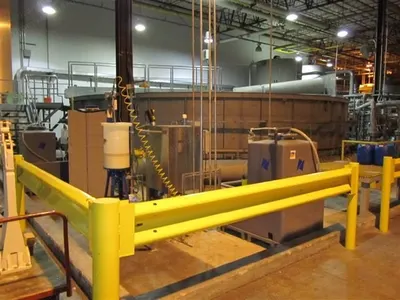

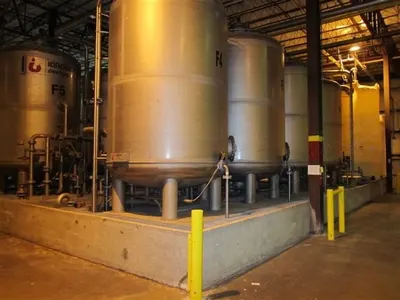

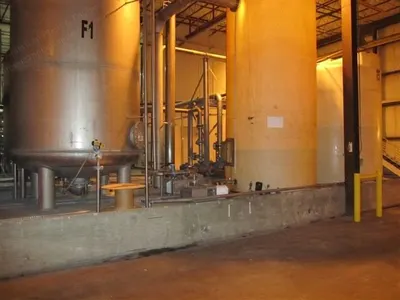

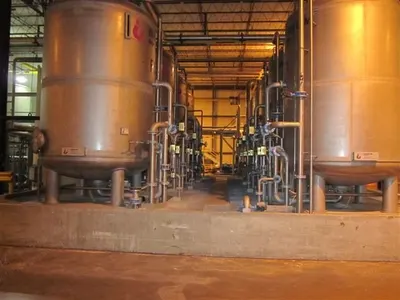

      7. Water filtration system (6 sand filter, separation tank)
    14. Greenville Steel stainless/rubber nip rolls

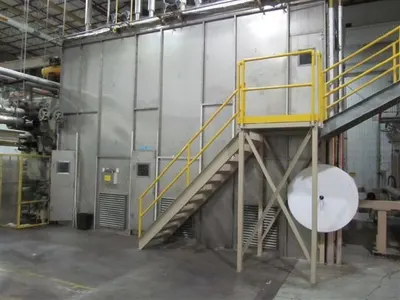

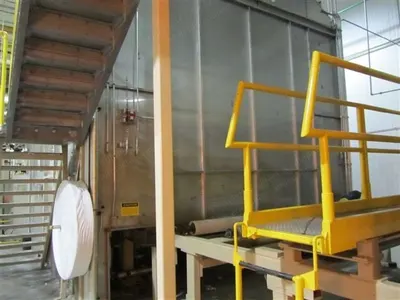

    15. Stainless steel dryer housing with (40) Morrison high pressure dry cans, 126” face

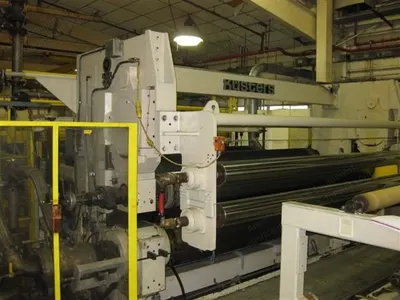

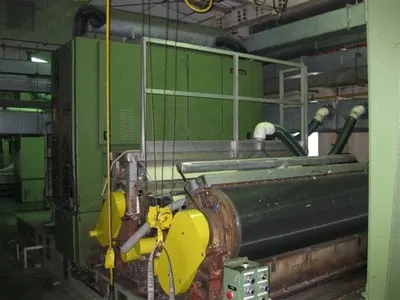

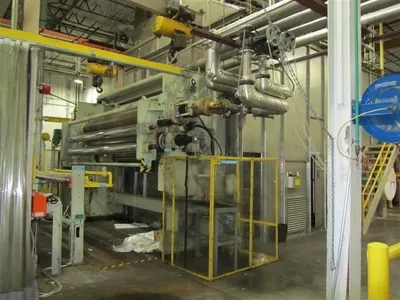

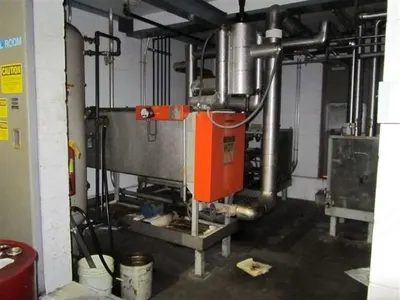

    16. Kusters 3.85 meter (3) roll hot oil calender, type 213.50, year 1983, 3.6 meter working width, (2) chill rolls, and Konas closed system hot oil heating unit
    17. Eurotherm beta gauge, 153” scanning frame
    18. Parkinson winder, model Mark III, year n/a, 60” diameter rolls

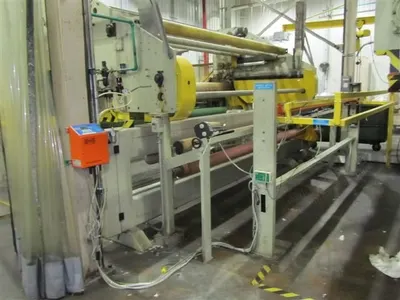

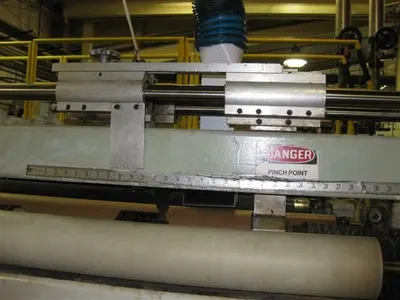

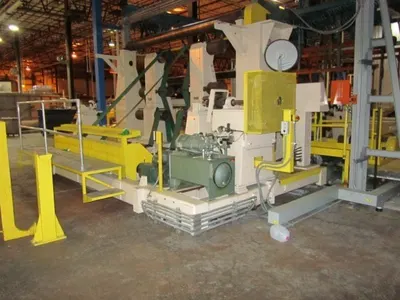

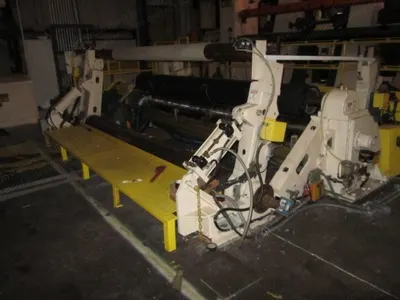

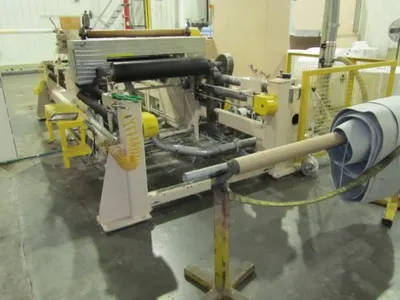

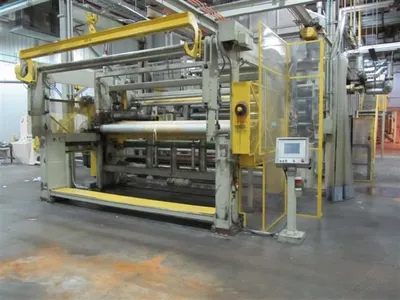

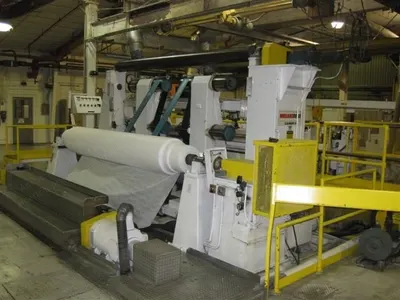

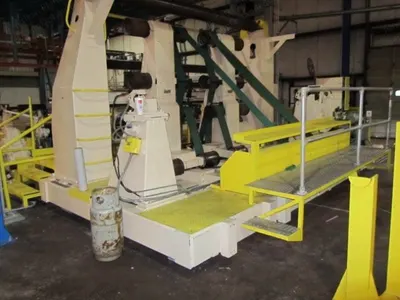

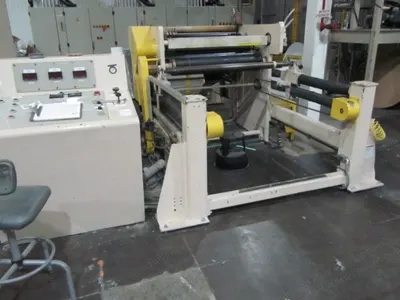

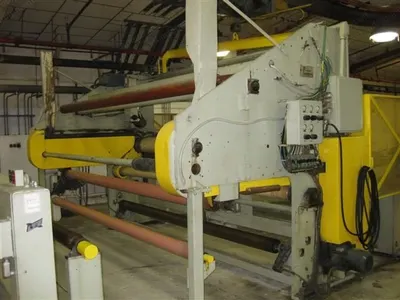

    19. Cameron unwind/slitter/rewind, single turret unwind stand order number 5165, 3/1985, belt driven positive unwind, score cut slitting section (4 knives) and single arbor rewind with press roll, maximum 50” diameter wind-up, doffing table and up-ender
    20. A/C inverter drive
  2. Thermobond Line (Polypropylene) - 140” Wide - 450 Lbs P/Hr
    1. (6) Fiber Controls feed hoppers with conveyor, model M6-VBFX36, year 1980, 75 HP
    2. CMC prefeed reworkable waste feeder from slitters
    3. (4) Carolina Machinery Works Rando cleaners, model various, year various, with Brown & Sebo chute feeds and Temafa opener pin; each unit has Truetzschler material transport fans at back of unit feeding into 2.2 meter Hollingsworth tandem cards:
      1. Model RC-36
      2. Model 20S/18, year 1994
      3. Model R08-36
      4. Model 6159/78, year 1978
      5. Model ROB-36, ser ROB-36-C34
      6. Model n/a
      7. Model RC-36
      8. Model 6159/78, year 1978
    4. (4) Hollingsworth 2.2 meter tandem Mastercards, model n/a, year 1990, with breaker and finisher card; fiber feed from Truetzschler chute, model FBK-2250, year various, (top web - 3A, 3 & 4) with undercard transfer floor conveyor:
      1. FBK2250 chute feed, model 535-58-02, year 1986
      2. FBK2250 chute feed, model 535-58-02, year 1990
      3. FBK2250 chute feed, model 536-58-02, year 1990
      4. FBK2250 chute feed, model 536-58-02, year 1998
    5. Mount Hope (15) bow roll spreader, with entry stand and edge slitters with vacuum selvage waste removal for cycled back to CMC prefeed
    6. Web condenser roll with vacuum suction feeds calendar
    7. Kusters 3.85 meter (3) roll hot oil calender, type 213.50, year 1983, 3.6 meter working width, (2) chill rolls, and Konas closed system hot oil heating unit
    8. LFE beta gauge model HU657
    9. Parkinson 3.2 meter batcher, model 83-30, year n/a
    10. Web is conveyed via P&H hoist onto Cameron Montross (4) head rewind stand with slitter head which doffs onto (2) cradles heading for automatic stretch wrappers
    11. D/C drive
  3. Thermobonding Line (Polyester) - 140” Wide - Production 500 Lbs P/Hr
    1. Fiber Controls fiber blend line with (7) Fiber Controls hopper feeders, model M-10, year 1980, with electronic weight pan feed and hump magnet
    2. Fibers Controls bi-directional 32” conveyor with (2) fiber stock fans
    3. (2) Fiber Controls hoppers, model M10, year 1980, without weigh pans, with Truetzschler TV-300 variable speed stock fan
    4. Fiber Controls fiber transfer conveyor with Goring Kerr metal detector
    5. (4) CMC 36” ROB with (2) transfer rolls each, air box and Fiber Controls metering rolls
    6. (4) Hollingsworth 2.2 meter tandem Mastercards, model n/a, year 1985, with breaker and finisher card; fiber feed from Hergeth chute, model DS, year 1985, (bottom web)
    7. (1) Set of Mount Hope web spreader section, (15) bow rolls per set
    8. (2) Accu-nip wet-out boxes, (3) rolls, stainless immersion pans and edge trimmers
    9. Set of (50) horizontal dry cans, 23" diameter x 144” wide, high pressure 125 PSI, Teflon coated cans, belt driven, (6) drive motors, condensate return tank
    10. Set of Erhardt Leimer 18” air guiders on screen stand
    11. LFE beta measuring head, model SCL-77A
    12. Parkinson 160" (3) roll batcher, model n/a, year n/a, with 3,200 lb. hoist for doffing

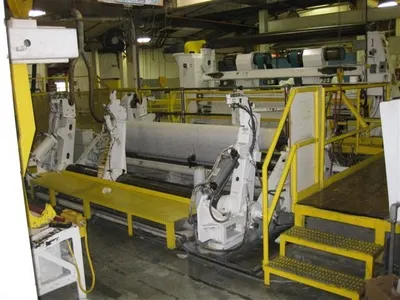

    13. Dusenbury unwind/slitter/rewind, 156” wide, with single turret let-off, operator platform, winder with press roll and (10) score cut slitting heads, discharge table and up-ender

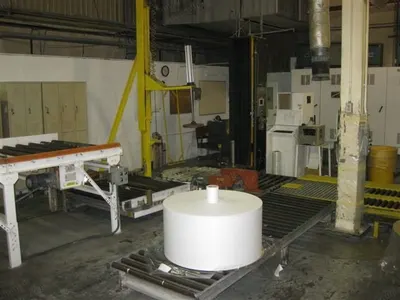

    14. Infra Pak stretch wrapper, model SW-4000, 120” wide
    15. A/C inverter drive
  4. Spun Lace Line 3000mm Wide (Dismantled) - Production 600 Lbs P/Hr
    1. German line (D), consisting of:
      1. (2) Hergeth/Hollingsworth bale openers, model MO/4, year 1983, 60” working width, with (4) Truetzschler TV-300 fiber stock fans
      2. (2) Hergeth/Hollingsworth condensers, model n/a, year 1984, with (2) Truetzschler TV-300 fiber stock fans

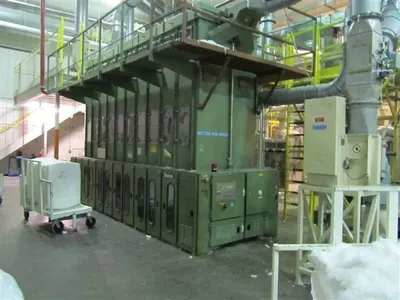

      3. Hergeth/Hollingsworth (6) cell fiber blender, model SML, year 1991, 4.0 meter height, 1250mm working width with (2) Truetzschler TV-300 fiber stock fans
      4. (2) Hergeth/Hollingsworth blend lines, consisting of: (2) fiber feed hoppers, model HV4012, 1.0 meter working width with 2.0 meter extended aprons; (1) conveyor system 1.0 meter working width, PVC apron, variable speed drive, fiber opener, Boekels 211 in-line metal detectors, hump magnet, Truetzschler TV-300 fan
      5. (6) Hergeth/Hollingsworth 300mm T-distribution valves

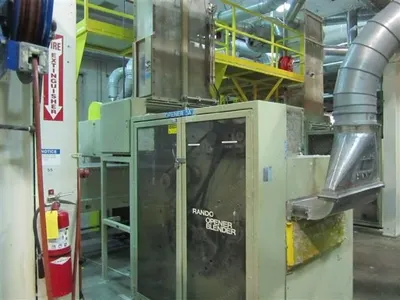

      6. (4) Rando 36” opener blender, model n/a, year n/a
      7. (4) Hergeth/Hollingsworth cards, model n/a, year 1984, 2.5 meter width, double section, single doffer with Rando take-off roll, worker and stripper on breaker and finisher main, all motors are A/C inverter, feed by Truetzschler chutes, all were rebuilt in 1999:
        1. Card 1, chute 843/583, chute com# 5756/1981
        2. Card 2, chute 843/567, chute com# 5756/1981
        3. Card 3, chute 843/569, chute com# 5756/1981
        4. Card 4, chute 843/565, chute com# 5756/1981
      8. (2) Mount Hope (11) bow roll spreaders, from 2.5-3.5 meter with entry stand and edge slitters with vacuum selvage waste removal for cycled back to CMC prefeed
      9. Martain unwind unit, model ECPFIG-126-5956, 3.2 meter maximum working width, fabric (3) pilling unit, 5-roll accumulator
      10. Card fi
