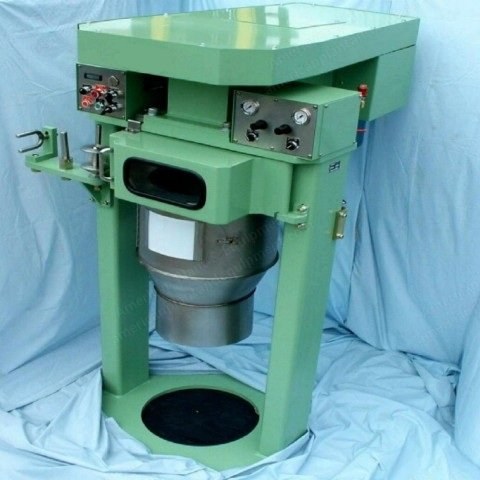

Description Overview Powered with a 7.5 kW motor and an ac variable speed inverter drive Equipped with a 250 mm diameter pneumatically actuated presser wheel This new presser wheel arrangement is one of the most important changes made to the original concept Technical Specifications Maximum capacity: 2,000,000 total denier at 43 mm blade exposure and 190 mm cut length Maximum tow speed: 350 meters per minute Motor/drive: variable speed ac inverter drive mounted on cutter 10 hp (7.5 kW), inverter capable motor mounted on cutter Cutter control console mounted on cutter Dynamic braking Belt driven Voltage: 460 V, 3 ph, 60 Hz Tow height: 1,448 mm Process direction: right to left or left to right (to be confirmed) Blade exposure: 43 mm including a phenolic presser wheel Controls An operator console is mounted to the cutter Operator functions include: run, jog, stop, speed control potentiometer, e-stop, tension on/off, speed meter Special Features 250 mm diameter pneumatically actuated presser wheel Captive bolt cutter reel attachment Basic tow guide system Swing-open reel guard with safety switch Stainless steel doff plate and discharge duct Carbon steel construction with powder coat protective finish Supplied completely assembled, ready for customer installation less radial blade cutter reel(s) and blades
